13-1-1 13-1 台車（下部） CART (LOWER)
13-1
13

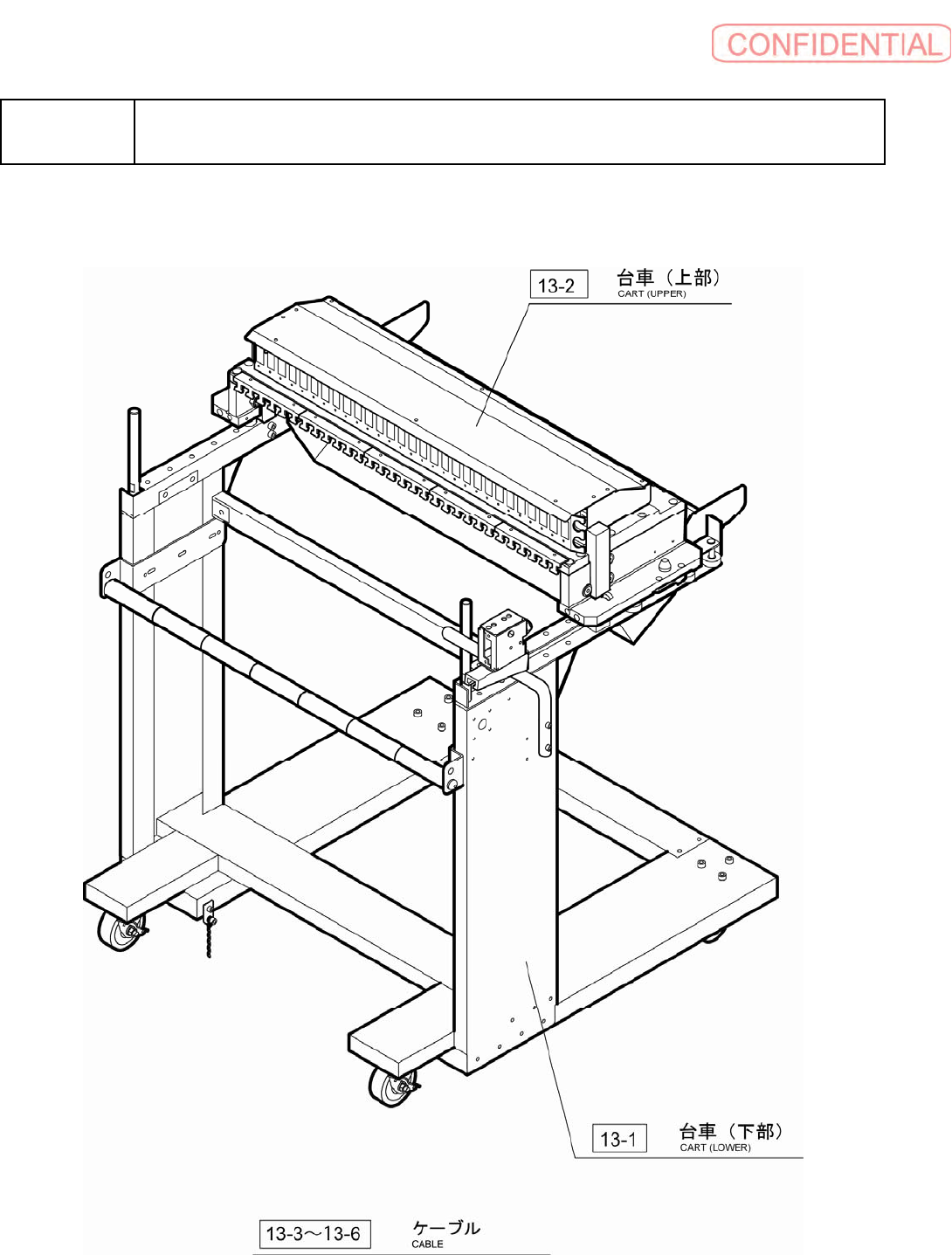

GIC-TROLLEY 全体図
UNIT LAYOUT (GIC-TROLLEY)
13-1-1
13-1

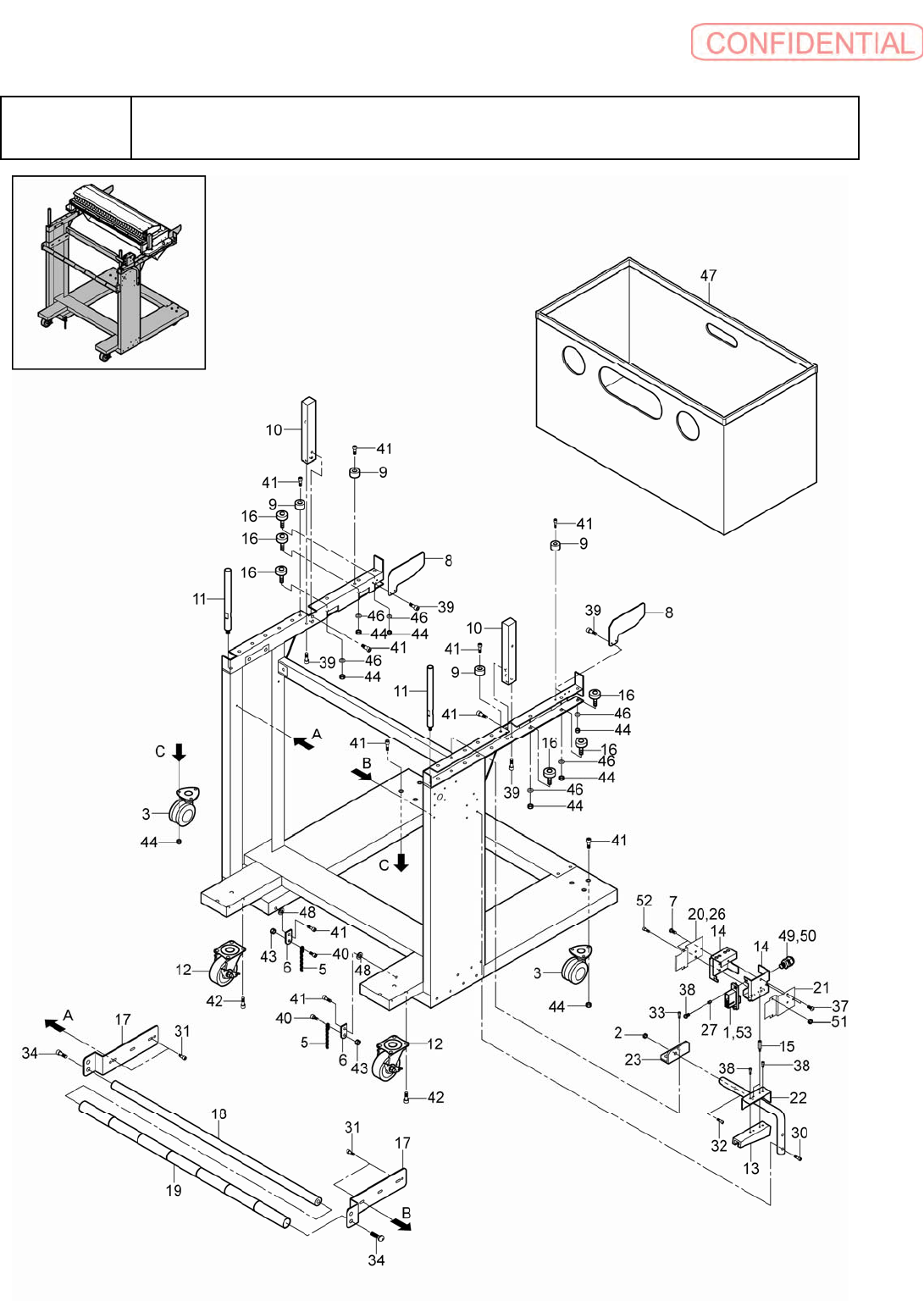

台車（下部）
CART (LOWER)
13-1-2
13-1
台車（下部）
CART (LOWER)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 4-294-948-01
ｺﾈｸﾀ
(
ﾀﾞｲｼｬ
)
CONNECTOR (CART)
1
13R-RWZV-K2GG-P4,
CONNECTOR ONLY
2 2-652-911-01
U
ﾅｯﾄ
(M5X0.8 2
ｼｭ
)
U NUT (M5X0.8 2 MAIN)
1
M5X0.8 2 MAIN
3 2-677-370-01
ｿｳﾘﾝ
ｼﾞｻｲ
ｷｬｽﾀ
(K-200G-60)
CASTER (K-200G-60), UNIVERSAL
2
K-200G-60
4 2-685-302-02
PL
ﾗﾍﾞﾙ
（ｽﾄｯﾊﾟｰ
ﾛｯｸ）
LABEL, PL (STOPPER LOCK)
2
5 3-093-257-03
ｱｰｽ
ﾖｳ
ﾁｪｰﾝ
(2)
CHAIN (2), GROUND
2
6 3-093-258-01
ｱｰｽ
ﾖｳ
ﾌﾟﾚｰﾄ
PLATE, GROUND
2
7 4-000-050-01
ｺﾞｸﾃｲﾄｳ
ﾛｯｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
2
M4X8
8 4-000-226-03
ｻｲﾄﾞ
ｾﾝｻｰ
ﾄﾞｸﾞ
DOG, SIDE SENSOR
2
9 4-113-099-01
ｳﾚﾀﾝ
ｸｯｼｮﾝ
(1)
CUSHION (1), URETHANE
4
10 4-138-337-01
ﾀﾞｲｼｬ
ﾚｰﾙ
RAIL, FLATCAR
2
11 4-138-338-01
ｸﾞﾘｯﾌﾟ
ｼｬﾌﾄ
SHAFT, GRIP
2
12 4-140-985-01
ｺﾃｲ
ｷｬｽﾀ
(K-413S-75N)
CASTER (K-413S-75N), FIXED
2
K-413S-75N
13 4-141-926-01
ｸﾗﾝﾌﾟ
ﾚｰﾙ
RAIL, CLAMP
1
14 4-141-927-01
ｺﾈｸﾀ
ｶﾊﾞｰ
COVER, CONNECTOR
2
15 4-141-944-01
ﾛｯｶｸ
ｼﾁｭｳ
SUPPORT, HEXAGON
2
16 4-152-000-01
ﾍﾞｱﾘﾝｸﾞ
(DR-30-B3-10.5)
BEARING (DR-30-B3-10.5)
6
DR-30-B3-10.5
17 4-152-433-01
ﾎｰﾙ
ﾌﾟﾚｰﾄ
PLATE, HOLE
2
18 4-152-434-01
ﾀﾞｲｼｬ
ｱｼｽﾄ
ﾖｳ
ﾎﾟｰﾙ
POLE, FLATCAR ASSIST
1
19 4-152-435-01
ﾀﾞｲｼｬ
ｱｼｽﾄ
ﾖｳ
ﾊﾟｲﾌﾟ
PIPE, FLATCAR ASSIST
7
20 4-158-705-01
ﾏｸﾞﾈｯﾄ
ﾌﾟﾚｰﾄ
PLATE, MAGNET
1
21 4-158-706-01
ｺﾈｸﾀ
ﾌﾟﾚｰﾄ
PLATE, CONNECTOR
1
22 4-159-965-01
ｸﾗﾝﾌﾟ
ﾊﾟｲﾌﾟ
PIPE, CLAMP
1
23 4-160-038-02
ﾊﾟｲﾌﾟ
ｺﾃｲ
ﾌﾞﾗｹｯﾄ
BRACKET, PIPE FIXED
1
24 4-192-826-01
BOLT, H K M5X16
BOLT, H K M5X16
6
25 4-196-463-01
ｼｼﾞ
ﾗﾍﾞﾙ
(TOP)
LABEL (TOP), SUPPORT
1
26 4-196-464-01
ｷｮｳﾘｮｸ
ﾗﾊﾞｰ
ﾏｸﾞﾈｯﾄ
MAGNET, POWERFUL RUBBER
1
