13-3 -2 13-3 台車内配線（台車制御基板） INTERNAL WIRING, CART (CART CONTROL BOA RD ASSY) ｲﾗｽﾄ番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 1-835-994-11 ﾀﾞｲｼｬ ｶｾｯﾄ ｶﾝ ﾃﾞﾝｹﾞﾝ ｹｰﾌﾞﾙ CABLE, CASS…

100%1 / 190

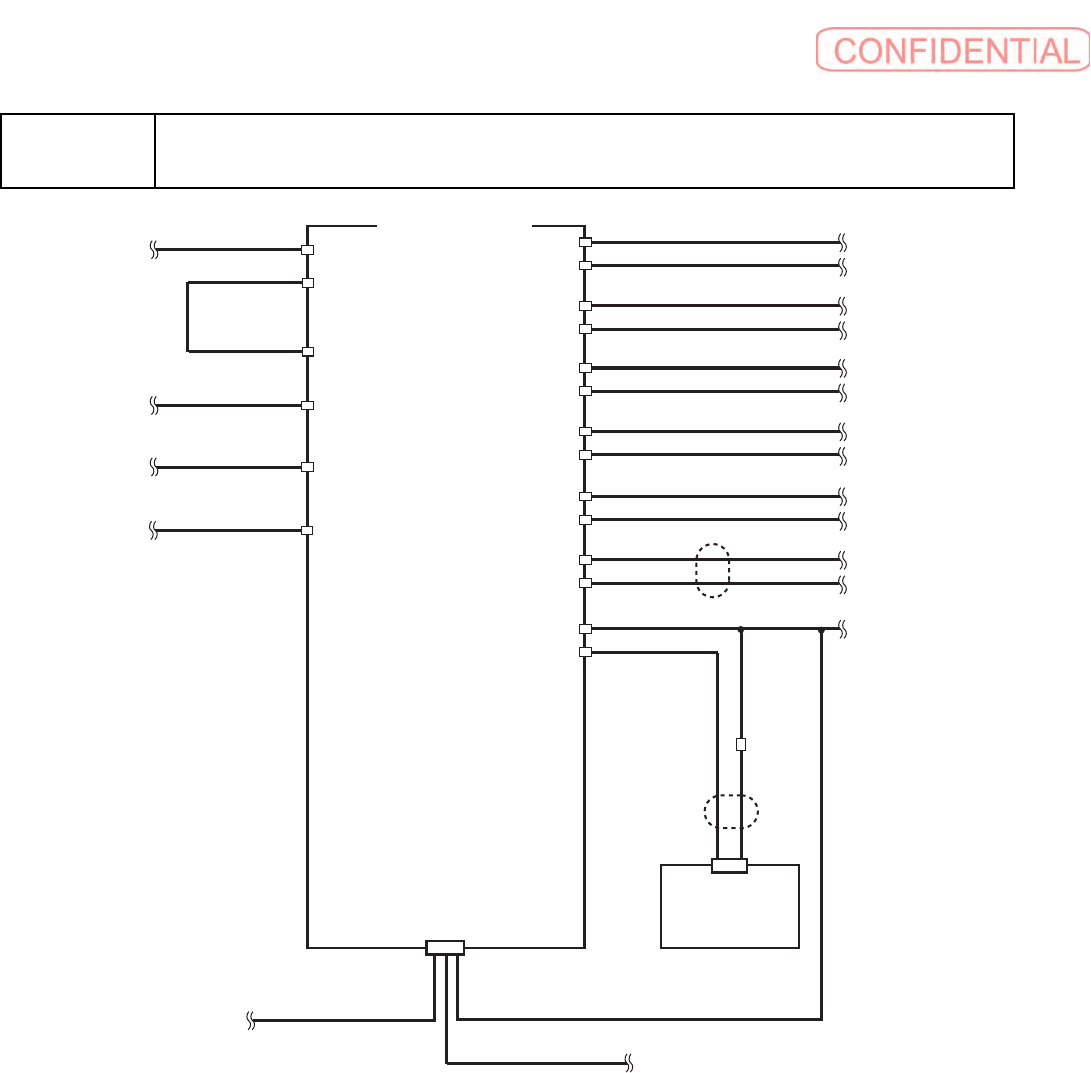

13-3-1
13-3
台車内配線（台車制御基板）
INTERNAL WIRING, CART (CART CONTROL BOARD ASSY)
CART CONTROL
BOARD ASSY
CN 1
1
CN 2
To No.149
Connector
2
CN 23
CN 25
8
S1 : 1 ON
2 ON
S4 : ON
CN 28
4
To CAN IO
BOARD ASSY 1
To CAN IO
BOARD ASSY 1
12
To Plate
11
TB1
CN 22
7
To CAN IO
BOARD ASSY 1
CN 20
6
To CAN IO
BOARD ASSY 2
CN 18
5
o CAN IO
BOARD ASSY 3
CN 3
1
CN 4
To No.151
Connector
2
CN 5
1
CN 6
To No.153
Connector
2
CN 7
1
CN 8
To No.155
Connector
2
CN 9
1
CN 10
To No.157
Connector
2
CN 11
3
CN 12
To Maintenance
Port
CN 13
9
CN 27
To Machine
Connector
TIMER,
SOLID STATE
(H3Y-4 DC24V)
CCB-27-2
CCB-27
10
13-3-2
13-3
台車内配線（台車制御基板）
INTERNAL WIRING, CART (CART CONTROL BOARD ASSY)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-835-994-11
ﾀﾞｲｼｬ
ｶｾｯﾄ
ｶﾝ
ﾃﾞﾝｹﾞﾝ
ｹｰﾌﾞﾙ
CABLE, CASSETTE SIGNAL
5
WITH CONNECTOR
2 1-835-995-11
ﾀﾞｲｼｬ
ｶｾｯﾄ
ｶﾝ
ｼﾝｺﾞｳ
ｹｰﾌﾞﾙ
CABLE, CASSETTE SIGNAL
5
3 1-836-002-11
ﾒﾝﾃﾅﾝｽ
ﾎﾟｰﾄ
ｾﾂｿﾞｸ
ｹｰﾌﾞﾙ
CABLE, PORT CONNECTION
1
WITH CONNECTOR
4 1-835-997-11
ﾀﾞｲｼｬ
ｷﾊﾞﾝ
ｶﾝ
CAN
ﾂｳｼﾝ
ｹｰﾌﾞﾙ
1
CABLE, CAN COMMUNICATION 1
1
5 1-835-998-11
ﾚﾊﾞｰ
ｾﾝｻ
ｼﾝｺﾞｳ
ｹｰﾌﾞﾙ
1
CABLE, LEVER SENSOR SIGNAL 1
1
6 1-835-998-21
ﾚﾊﾞｰ
ｾﾝｻ
ｼﾝｺﾞｳ
ｹｰﾌﾞﾙ
2
CABLE, LEVER SENSOR SIGNAL 2
1
7 1-835-998-31
ﾚﾊﾞｰ
ｾﾝｻ
ｼﾝｺﾞｳ
ｹｰﾌﾞﾙ
3
CABLE, LEVER SENSOR SIGNAL 3
1
8 1-835-998-41
ﾚﾊﾞｰ
ｾﾝｻ
ｼﾝｺﾞｳ
ｹｰﾌﾞﾙ
4
CABLE, LEVER SENSOR SIGNAL 4
1
9 1-836-108-11
VA
ﾀﾞｲｼｬ
ﾎﾝﾀｲ
ｶﾝ
ｾﾂｿﾞｸ
ｹｰﾌﾞﾙ
CABLE, MAIN CONNECTION
1
10 1-836-387-21
ﾀｲﾏｰ
ｹｰﾌﾞﾙ
2
CABLE, TIMER 2
1
11 1-835-999-11
ﾀﾞｲｼｬ
ｷﾊﾞﾝ
ｱｰｽ
ｹｰﾌﾞﾙ
CABLE, PC BOARD GROUND
1
12 1-835-996-11
ﾀﾞｲｼｬ
ｷﾊﾞﾝ
ﾃﾞﾝｹﾞﾝ
ﾊﾞｲﾊﾟｽ
ｹｰﾌﾞﾙ
CABLE, PC BOARD POWER BYPASS
1

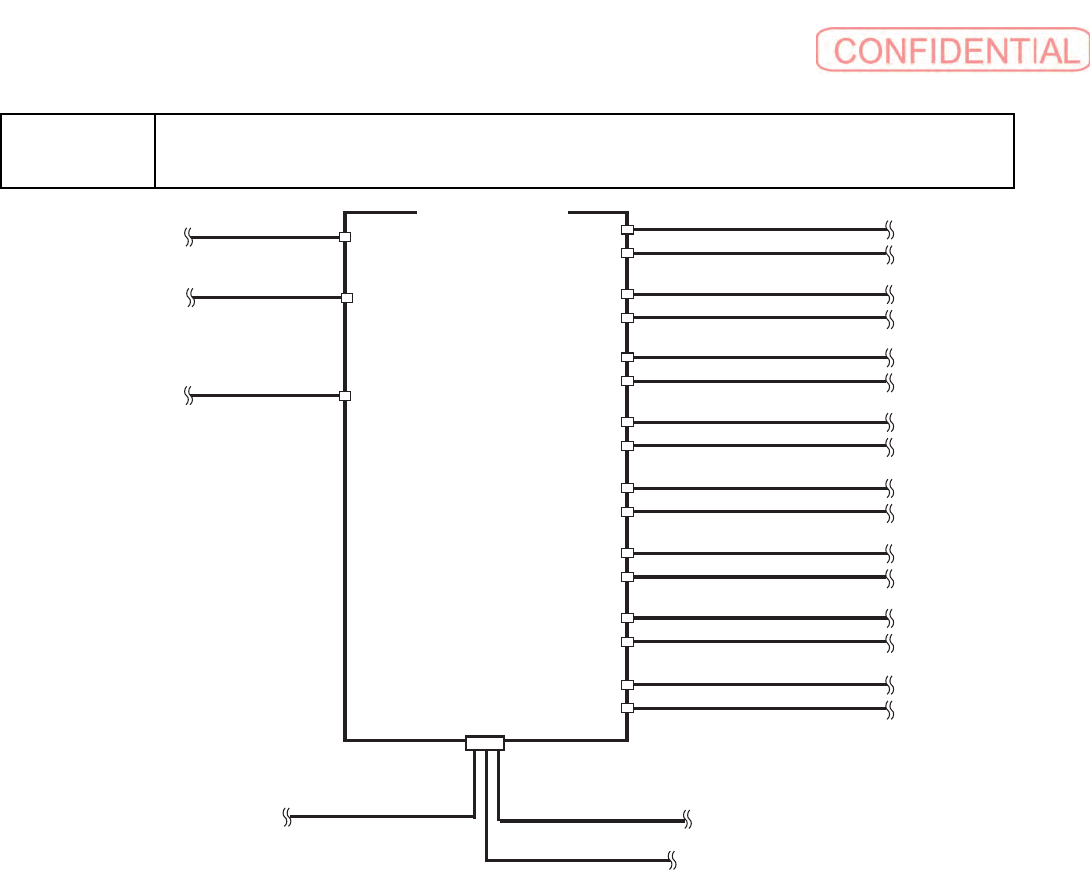

13-4-1
13-4
台車内配線（CAN IO 基板 1）
INTERNAL WIRING, CART (CART IO BOARD ASSY 1)
CAN IO
BOARD ASSY 1
CN 1
1
CN 2
To No.133
Connector
2
S1 : 2 ON
4 ON
5 ON
S2 : OFF
CN 21
3
T
o CAN CONTROL
BOARD ASSY
To CAN IO
BOARD ASSY 2
6
To Plate
7
TB1
6
To CAN CONTROL
BOARD ASSY
CN 19
5
To CAN CONTROL
BOARD ASSY
CN 20
4
To CAN IO
BOARD ASSY 2
CN 3
1
CN 4
To No.135
Connector
2
CN 5
1
CN 6
To No.137
Connector
2
CN 7
1
CN 8
To No.139
Connector
2
CN 9
1
CN 10
To No.141
Connector
2
CN 11
1
CN 12
To No.143
Connector
2
CN 13
1
CN 14
To No.145
Connector
2
CN 15
1
CN 16
To No.147
Connector
2
