5-1-2 5-1 コンベア ユニット（左側） CONVEYANCE UNIT (L), G ｲﾗｽﾄ番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 X-2345 -906-1 ｶﾄﾞｳ ﾍﾞ - ｽ ( ﾋﾀﾞﾘ ) BASE (LEFT), MOVABLE 1 3 X-2345 -904-1 ｺﾃｲ ﾍﾞ…

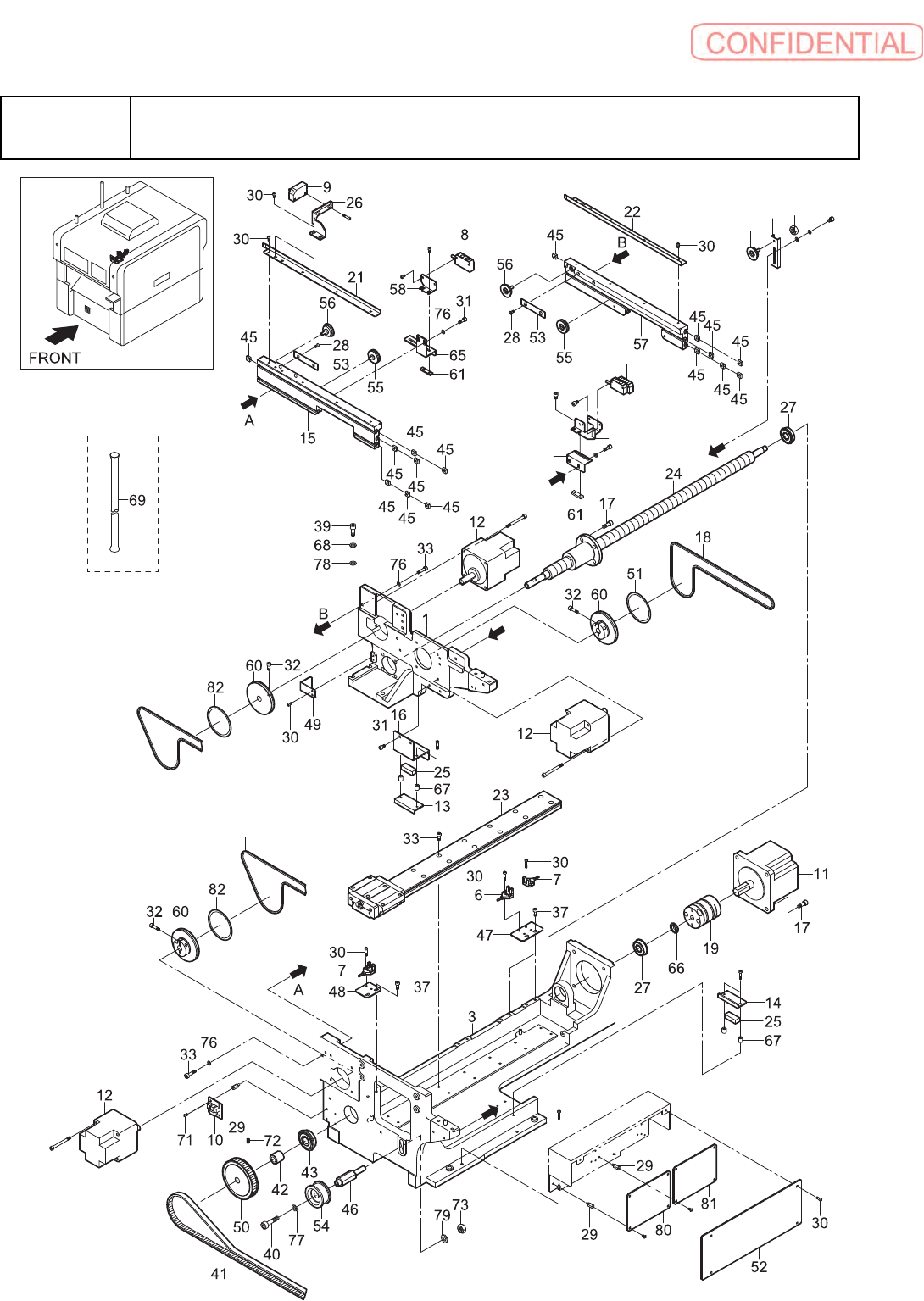

5-1-1
5-1
コンベア ユニット（左側）
CONVEYANCE UNIT (L), G
20-1
20-2
C
C
84
85
83
C
83
D
86
D
87
88
5-1-2
5-1
コンベア ユニット（左側）
CONVEYANCE UNIT (L), G
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 X-2345-906-1
ｶﾄﾞｳ
ﾍﾞ
-
ｽ
(
ﾋﾀﾞﾘ
)
BASE (LEFT), MOVABLE
1
3 X-2345-904-1
ｺﾃｲ
ﾍﾞ
-
ｽ
(
ﾋﾀﾞﾘ
)
BASE (L), FIXED
1
6 1-480-800-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX771)
SENSOR ASSY, (S) PHOTO (EE-SX*
1
EE-SX771, OMRON
7 1-480-801-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX871)
SENSOR ASSY, (S) PHOTO (EE-SX*
3
EE-SX871, OMRON
8 1-480-802-11
(S)
ｺｳﾃﾞﾝｾﾝｻ
ASSY (E3S-LS3N)
SENSOR ASSY, (S) (E3S-LS3N)
1
E3S-LS3N, OMRON
9 1-480-803-11
(S)
ﾋﾞｰﾑｾﾝｻ
ASSY (CX-424)
SENSOR ASSY, (S) BEAM (CX-424)
1
CX-424, SUNX
10 1-761-262-12
LS
ｷﾊﾞﾝ
ASSY
PC BOARD ASSY, LS
1
11
1
PK596HNAW,
ORIENTAL MOTOR
12 1-480-805-11
(S) DC
ﾓ
-
ﾀ
- ASSY (AXH230K-10)
MOTOR ASSY, (S) DC (AXH230K-10*
3
AXH230K-10,
ORIENTAL MOTOR
13 4-135-302-01
ｹ
-
ﾌﾞﾙ
ｸﾗﾝﾌﾟ
(B)
CLAMP (B), CABLE
1
14 4-135-301-01
ｹ
-
ﾌﾞﾙ
ｸﾗﾝﾌﾟ
(A)
CLAMP (A), CABLE
1
15 4-135-069-01
ｺﾃｲﾌﾚ
-
ﾑ
(
ﾋﾀﾞﾘ
)
FRAME (LEFT), FIXED
1
16 4-135-304-01
ﾌﾗﾂﾄ
ｹ
-
ﾌﾞﾙ
ﾌﾞﾗｹﾂﾄ
(
ﾋﾀﾞﾘ
)
BRACKET (LEFT), FLAT CABLE
1
17 2-149-044-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X18 SUS)
BOLT, HEXAGON SOCKET (M6X18SUS)
8
M6X18 SUS
18 4-135-284-11
ﾋﾗ
ﾍﾞﾙﾄ
(SEB-A-KCA2.7X617E)
BELT (SEB-A-KCA2.7X617E), FLAT
1
SEB-A-KCA2.7X617E
19 2-594-325-01
ｶﾂﾌﾟﾘﾝｸﾞ
(SFC-035DA2-8B-14B)
COUPLING (SFC-035DA2-8B-14B)
1
SFC-035DA2-8B-14B
20-1 4-135-287-01
ﾋﾗ
ﾍﾞﾙﾄ
(NSE7211C2.7X808E)
BELT, FLAT (NSE7211C2.7X808E)
1
NSE7211C2.7X808E
20-2 4-135-287-11
ﾋﾗ
ﾍﾞﾙﾄ
(NSE7211C2.7X823E)
BELT, FLAT (NSE7211C2.7X823E)
1
NSE7211C2.7X823E
21 4-135-065-01
ｷﾊﾞﾝ
ｶﾞｲﾄﾞ
(B)
GUIDE (B), PC BOARD
1
22 4-135-067-01
ｷﾊﾞﾝ
ｶﾞｲﾄﾞ
(D)
GUIDE (D), PC BOARD
1
23 2-694-051-01
ｶﾞｲﾄ
(LWFF42C1R450S1E076)
GUIDE (LWFF42C1R450S1E076)
1
LWFF42C1R450S1E076
24 4-188-225-01
ﾀﾞｲｹｲ
ﾈｼﾞ
(TMR20-RX564/TNBC-T*)
SCREW (TMR20-RX564/TNBC-TTM2*)
1
TMR20-RX564/TNBC-TTM20-R-S
P
25 2-890-881-01
ｺﾞﾑ
ｼ
-
ﾄ
(UNSETA2-80-30)
SHEET (UNSETA2-80-30), RUBBER
2
UNSETA2-80-30
26 4-186-994-01
ｷﾊﾞﾝ
ｾﾝｻｰ
ﾌﾞﾗｹﾂﾄ
(B)
BRACKET (B), PC BOARD SENSOR
1
27 4-700-061-11
ﾍﾞｱﾘﾝｸﾞ
(6000ZZNR)
BEARING (6000ZZNR)
2
6000ZZNR
28 4-702-261-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ｻﾗ
ﾎﾞﾙﾄ
(M3X4)
BOLT (M3X4), HEXAGON SOCKET
4
M3X4
5-1-3
5-1
コンベア ユニット（左側）
CONVEYANCE UNIT (L), G
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
29 4-705-584-11
ｽﾍﾟ
-
ｻ
(SQ-10)
SPACER (SQ-10)
12
SQ-10
30 4-706-724-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X6)
BOLT (M3X6), HEXAGON SOCKET
28
M3X6
31 4-706-725-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
6
M4X8
32 4-706-725-03
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X14SUS)
BOLT (M4X14SUS),HEXAGON SOCKET
1
M4X14SUS
33 4-706-725-04
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X16SUS)
BOLT (M4X16SUS),HEXAGON SOCKET
14
M4X16SUS
- 4-706-725-05
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X20SUS)
BOLT (M4X20SUS),HEXAGON SOCKET
9
M4X20SUS
- 4-706-725-08
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X45SUS)
BOLT (M4X45SUS),HEXAGON SOCKET
4
M4X45SUS
- 4-706-725-41
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X50)
BOLT (M4X50), HEXAGON SOCKET
8
M4X50
37 4-706-725-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
6
M4X6
- 4-706-725-61
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X15)
BOLT (M4X15), HEXAGON SOCKET
2
M4X15
39 4-706-740-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X25)
BOLT (M6X25), HEXAGON SOCKET
4
M6X25
40 4-706-740-04
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X10SUS)
BOLT (M6X10SUS),HEXAGON SOCKET
1
M6X10SUS
41 4-707-200-41
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(2340-3GT-9)
BELT, TIMING (2340-3GT-9)
1
2340-3GT-9
42 3-398-461-01
ｶﾗ
- (CLBU10-17-17)
COLOR, (CLBU10-17-17)
1
CLBU10-17-17
43 4-713-509-11
ﾍﾞｱﾘﾝｸﾞ
(6201ZZNR)
BEARING (6201ZZNR)
1
6201ZZNR
- 4-718-724-05
ﾛﾂｶｸ
ﾅﾂﾄ
(1
ｼﾕ
) (M4X0.7 SUS)
NUT(1TYPE),HEXAGON(M4X0.7 SUS)
1
M4X0.7 SUS
45 4-719-364-01
ｼｶｸ
ﾅﾂﾄ
(NSM-04-4)
NUT, SOUARE (NSM-04-4)
18
NSM-04-4
46 4-719-952-01
ｱｲﾄﾞﾗ
ｼﾔﾌﾄ
SHAFT, IDLER
1
47 4-135-305-01
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(A)
BRACKET (A), SENSOR
1
48 4-135-306-01
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(B)
BRACKET (B), SENSOR
1
49 4-719-956-04
ｾﾝｻ
ﾄﾞｸﾞ
DOG, SENSOR
1
50 4-719-957-01
ﾀｲﾐﾝｸﾞ
ﾌﾟ
-
ﾘ
(P71-3GT-9-6F)(
ｱﾙﾐ
)
PULLEY, TIMING (P71-3GT-9-6F)
1
P71-3GT-9-6F
51 3-276-517-01
O
ﾘﾝｸﾞ
(51G
ｸﾄﾞｳ
)
O RING (51G DRIVING)
1
51G DRIVING
52 4-719-959-02
ｱｸﾘﾙ
ｶﾊﾞ
-
COVER, ACRYLIC
1
53 4-719-994-01
ﾍﾞﾙﾄ
ｶﾞｲﾄﾞ
GUIDE, BELT
2
54 4-720-211-01
ｴﾝﾌﾟﾗﾌﾗﾝｼﾞﾂｷﾌﾟ
-
ﾘｱｲﾄﾞﾗ
(FIP1535)
IDLER, FLANGE PULLEY (FIP1535)
1
FIP1535
