2. Preparing for maintenance tasks
Tasks described in this section focus mainly on replacing parts (consumable parts) that might cause a
gradual loss of machine functions during use. This section also describes how the user can easily replace
parts when a breakdown occurs.
2.1 Consumable parts and replaceable parts (during breakdowns)
2.1.1 Consumable parts
The term “consumable parts” in this manual indicates parts subject to continual wear during use causing gradual
loss of functions. The following parts are classified in this manual as consumable parts and are to be replaced
during maintenance.

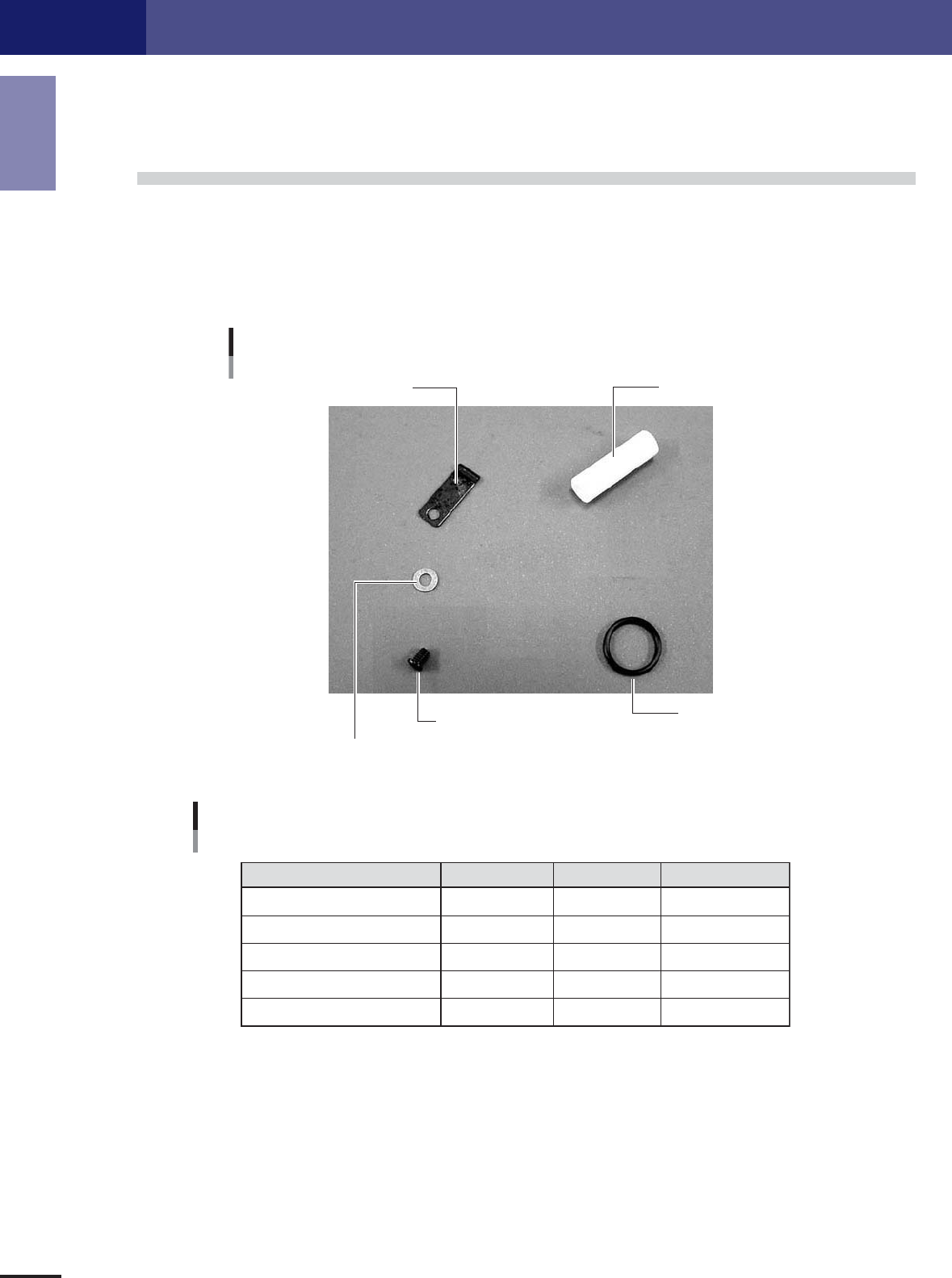

Consumable parts
Parts supplied with machine
Ejector filter
Ejector O-ring
Nozzle leaf spring
Nozzle plate spring mounting screw
Nozzle leaf spring mounting washer
43100-E5-00
Nozzle leaf spring
Nozzle leaf spring mounting screw
Nozzle leaf mounting washer
Ejector filter
Ejector O-ring
KG7-M7137-A0X
KG7-M7169-00X
KG7-M7170-00X
K46-M8527-C0X
90990-17J010
LEAF SPRING
SCREW
WASHER
FILTER
O-RING
Product Name NoteParts No.
Parts List Designation
Consumable parts
Parts supplied with machine
45100-E5-00
1-3
1
Maintenance
2. Preparing for maintenance tasks

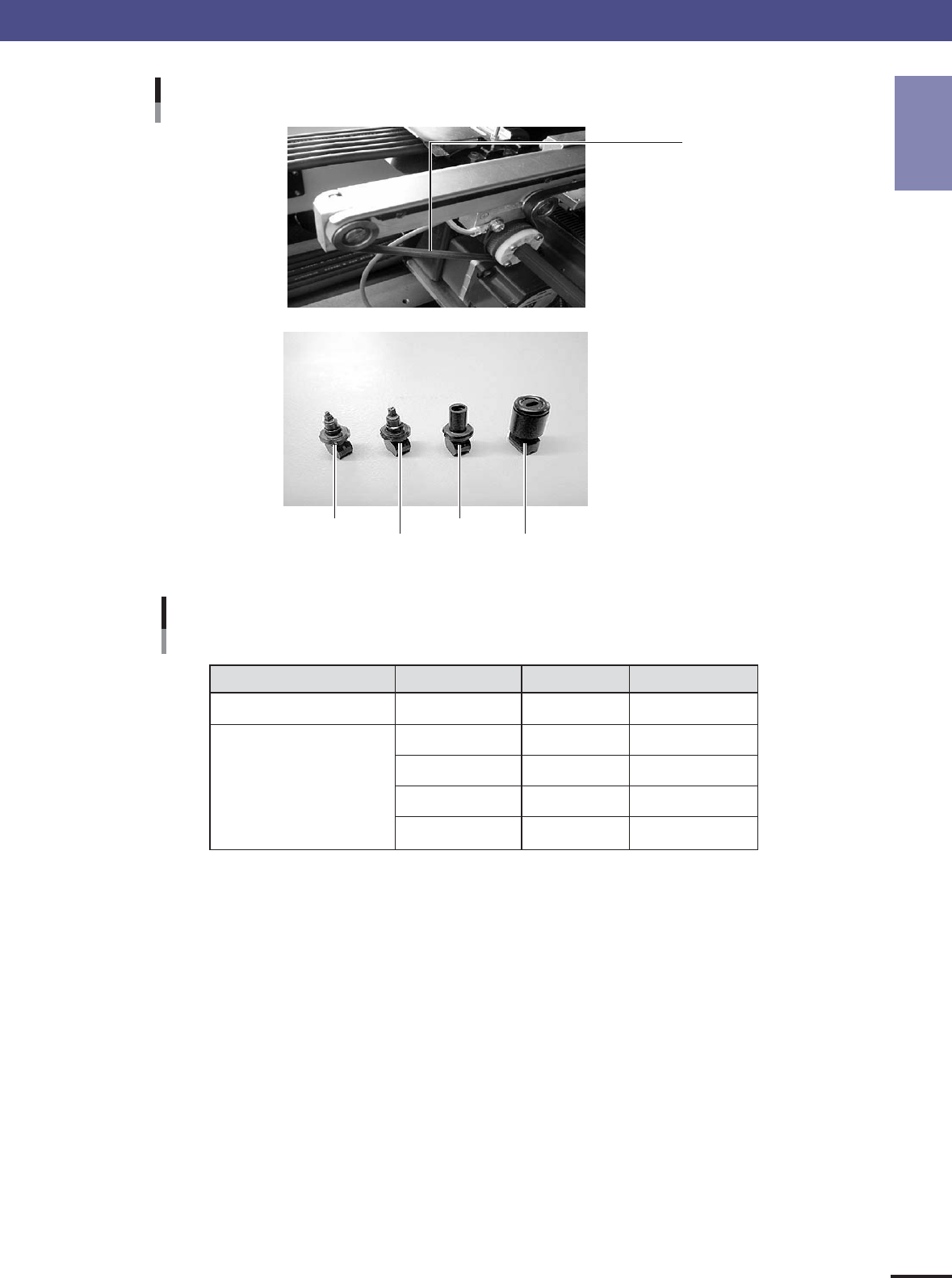

Consumable parts
Optional parts
Conveyor belt
Nozzle 81A
Nozzle 83A
Nozzle 82A Nozzle 84A
43101-5E-00
Conveyor belt
Nozzles
For PCB transferKGL-M911M-00X
KV8-M7710-A1X
KVL-M7720-A0X
KV8-M7730-00X
KV8-M7740-A0X
BELT, CONVEYOR
NOZZLE 81A
NOZZLE 82A
NOZZLE 83A
NOZZLE 84A
Product Name NoteParts No.Parts List Designation
Consumable parts
Optional parts
45101-5E-00
1-4
1
Maintenance
2. Preparing for maintenance tasks
2.1.2 Replaceable parts (during breakdowns)
The term “Replaceable parts” in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts during a machine breakdown are described.

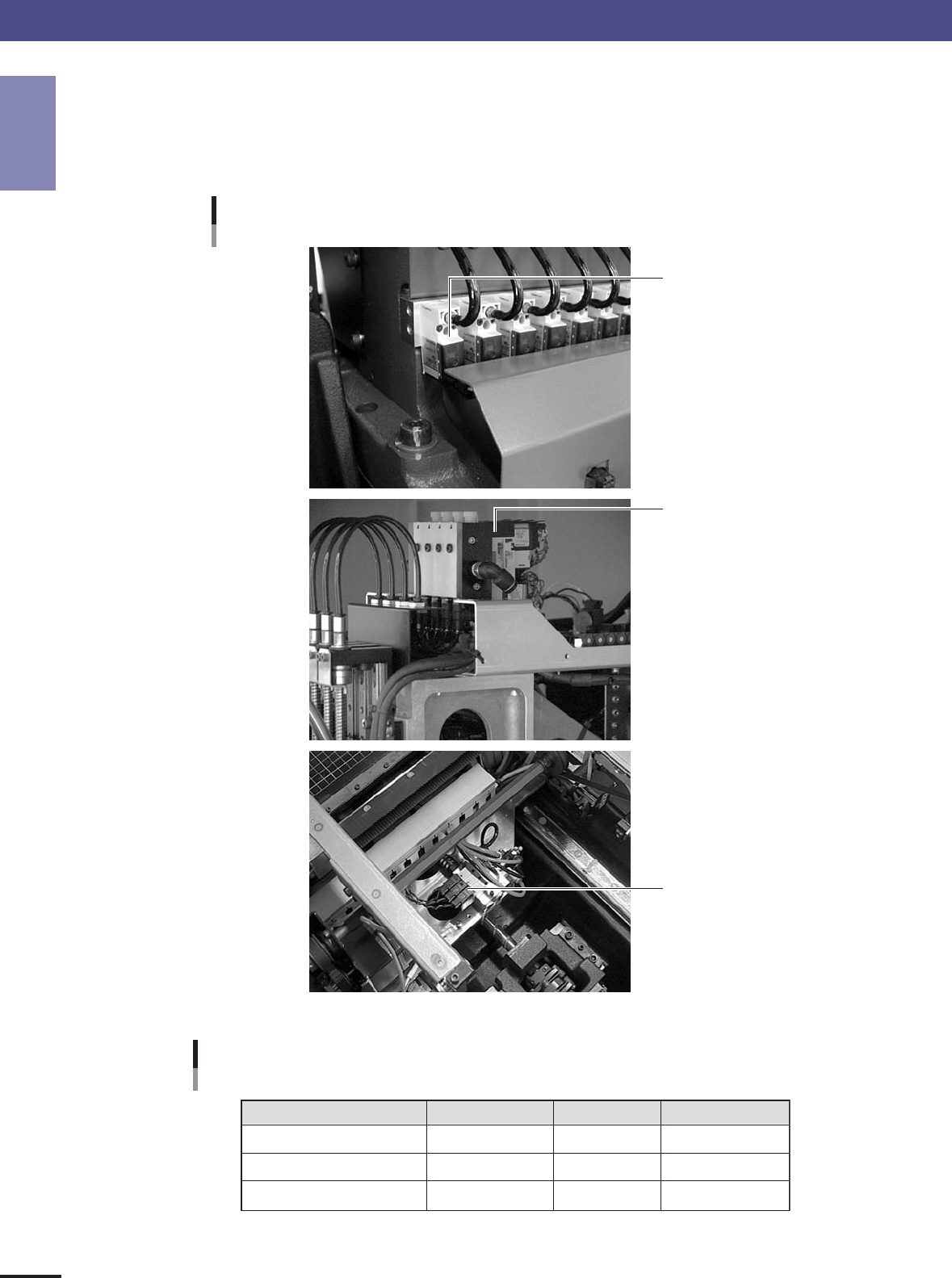

Replaceable parts
During a breakdown
Ejector valve
Conveyor unit valve
Feeder valve
43102-E5-00
Feeder valve
Ejector valve
Conveyor unit valve
For feeder drive
For vacuum generation
Main stopper, etc.
KGA-M73P1-00X
KGL-M7163-00X
KGL-M9134-00X
VALVE
VALVE
VALVE
Product Name NoteParts No.Parts List Designation
Replaceable parts list
During a breakdown
45102-E5-00
