2- 7 Daily maintenance items 2 5. Cleaning the camera lighting unit Dirt or dust particles sticking to the camera lighting unit can cause recognition errors. Periodic inspection and cleaning are recommended to prevent th…
2-6
Daily maintenance items
2
4. Cleaning the feeder plate
Clean the feeder plate by using the brush supplied with the machine. Chips or foreign matter falling on
the feeder plate might bite into the surface during feeder setting and cause the pickup position to deviate.
Periodic inspection and cleaning are recommended to prevent this problem.
Cleaning the feeder plate
Cleaning brush
43206-5E-00
2-7
Daily maintenance items
2

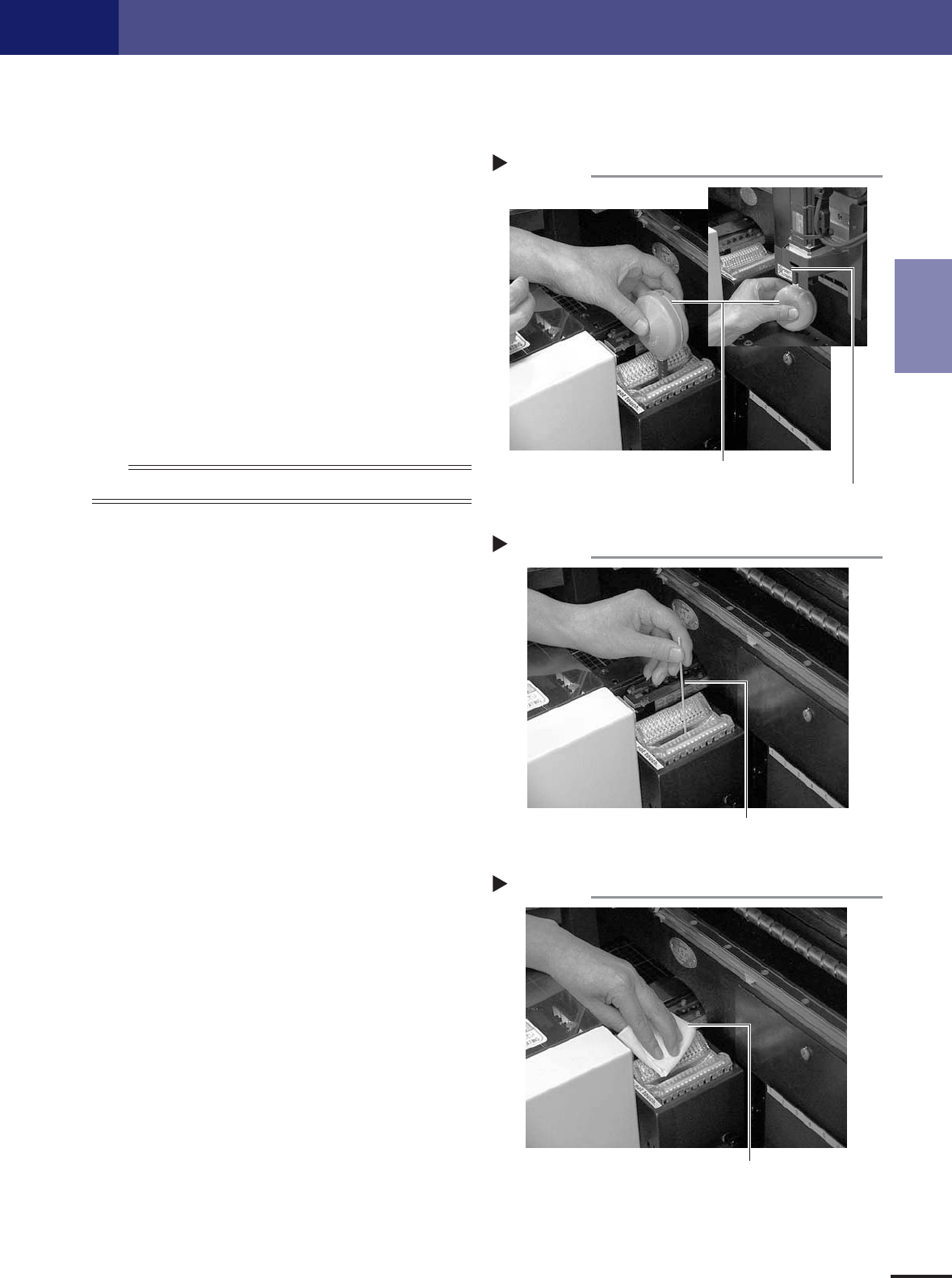

5. Cleaning the camera lighting unit
Dirt or dust particles sticking to the camera lighting unit can cause recognition errors. Periodic inspection
and cleaning are recommended to prevent this problem.
1
Remove dust by using the lens blow
brush.
Use this blow brush to remove dust from the
camera lighting unit and half mirror.
43207-E5-00
2
Wipe off the half mirror using a cotton
swab stick.
Apply several drops of lens cleaner to a cotton
swab and wipe off the half mirror.
43208-E5-00
n
NOTE
The cotton swab sticks and lens cleaner are supplied with the machine.
Cotton swab stick
Step 2
Cotton swab stick with lens cleaner applied
Lens blow brush
Step 1
Lens blow brush
Fiducial mark light
Cleaning paper or cloth
Step 3
Use cleaning paper or cloth that does not
leave dust or residue.
Chapter 3
Periodic maintenance items
Table of Contents
1. Weekly or biweekly inspection . . . . . . . . . . . . . . . . . . . . 3-1
1.1 Cleaning a nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
1.2 Inspecting ball screws and linear guides of each axis . . . . . . . . . . . 3-3
2. Monthly or bimonthly inspection . . . . . . . . . . . . . . . . . . 3-4
2.1 Cleaning and lubricating a nozzle holder . . . . . . . . . . . . . . . . . . . . 3-4
2.2 Cleaning and greasing X and Y axis ball screws. . . . . . . . . . . . . . . . 3-5
2.3 Cleaning and greasing the X, Y and W-axis linear guide rails . . . . . 3-6
2.4 Air/mist filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
2.5 Cleaning the camera lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
3. 6-month inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.1 Cleaning and replacing the ejector filter. . . . . . . . . . . . . . . . . . . . 3-10
3.2 Cleaning the spline shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
