3-4
3
Periodic maintenance items
2. Monthly or bimonthly inspection
This section explains how to clean and lubricate a nozzle holder after inspection.
2.1 Cleaning and lubricating a nozzle holder
If the nozzle holder spring-action is poor, this adversely affects all operations of component pickup, recognition
and mounting operations. Periodically (once every two months) clean the nozzle holder with alcohol (IPA or
ethanol) and lubricate it with turbine oil to maintain smooth movement.
1
Press the emergency stop button.
e
The machine must be in emergency stop to ensure
safety during work.
2
Remove the nozzles and lower the heads.
Remove the nozzles attached to the nozzle holders
to be cleaned, and then lower the heads by
pressing the joint section.
3
Clean the nozzle holder by immersing it
in alcohol.
1. Place a cloth or absorbent paper under the
head.
2. Prepare a small container (for example, plastic
35mm film container) deep enough to hold the
entire nozzle holder. Then pour this container
about 80% full of alcohol.
3. Bring this alcohol container up against the
nozzle shaft so the entire nozzle holder is
immersed in alcohol for several seconds.
4. Remove the alcohol container and push up on
the nozzle holder with your finger several times.
43314-E5-00
4
Immerse the nozzle holder in alcohol
again.
Repeat steps 3 and 4 until the spring-action
becomes smooth.
5
Use air blow to remove foreign matter.
While placing a cleaning cloth or paper just under
the lower end of the head, insert the air blow gun
into the air joint section and blow air.
6
Lubricate the spring-action parts and
check the movement.
Apply turbine oil to the spring-action parts and
push up the nozzle holder by hand several times to
check that it moves up and down smoothly.
43315-E5-00
7
Wipe away excess oil.
Wipe away excess oil with cleaning paper or cloth
that does not leave dust or residue.
Cleaning the nozzle holder
Step 3
Container holding alcohol
Lubricating the nozzle holder
Step 6
Lubricate here. Nozzle holder lubricating
syringe
3-5
3
Periodic maintenance items

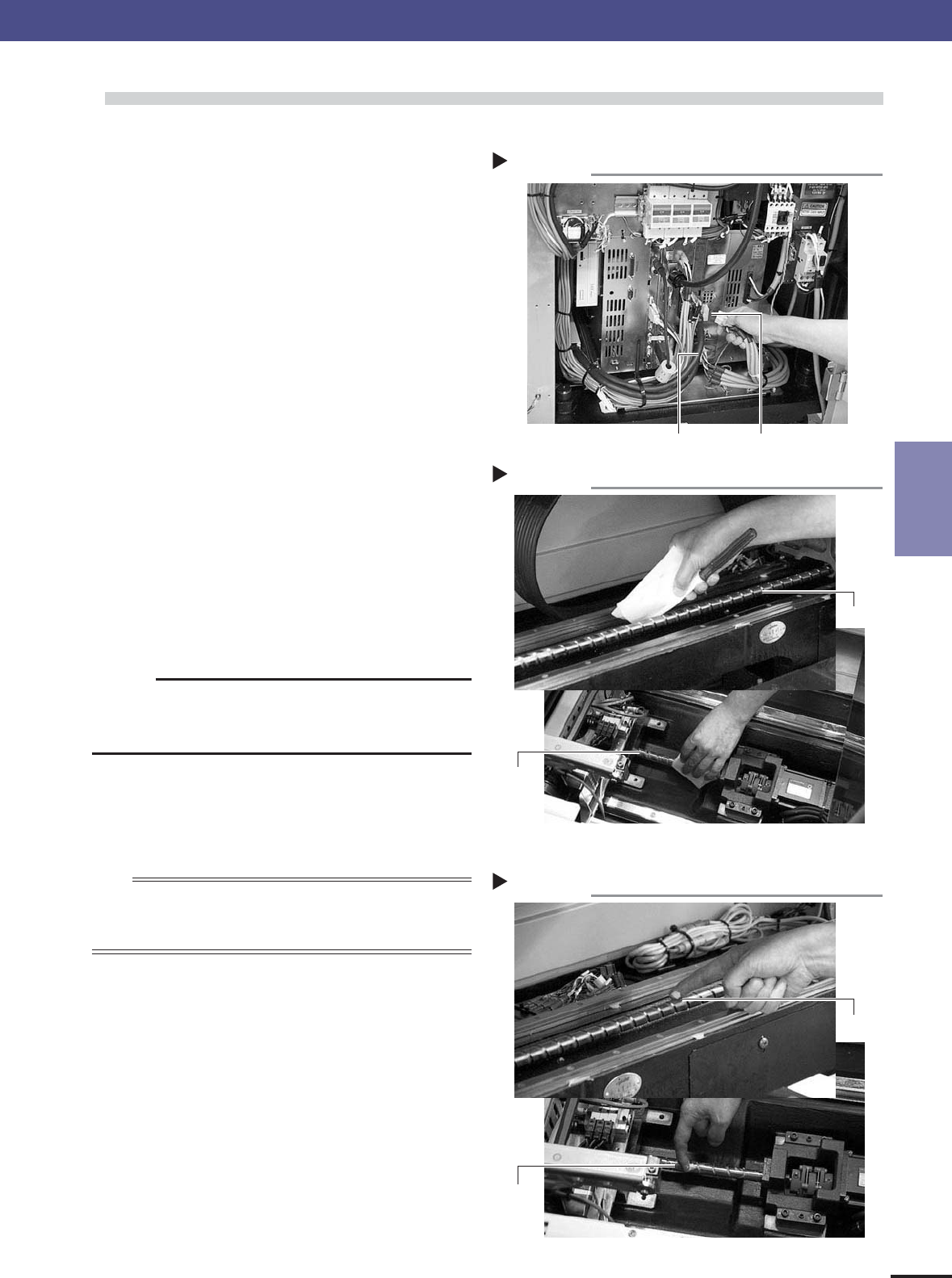

2.2 Cleaning and greasing X and Y axis ball screws
1
Turn off the machine power switch.
Quit the software operation and turn off the
machine power switch.
2
Unplug the motor power cable
connectors.
Open the front lower cover of the machine and
unplug the X-axis and Y-axis motor power cable
connectors. (Move the head and conveyor table
along the X and Y axes by hand as needed to make
this work easier.)
43316-E5-00
3
Wipe away the old grease on the ball
screw as follows.
1. Move the head (or conveyor table) to the one
end of its axis and wipe away the old grease on
the ball screw with cleaning paper or cloth that
does not leave dust or residue.
2. Move the head (or conveyor table) to the
opposite end of its axis and wipe away the old
grease on the ball screw with cleaning paper or
cloth that does not leave dust or residue.
43317-E5-00
c
CAUTION
Wipe away thoroughly the old grease in the lead groove of
the ball screw. Also check that no debris and residue remain
in the lead groove.
4
Apply grease to the ball screw.
Apply grease by hand uniformly over the surface
and lead groove of the ball screw.
43318-E5-00
n
NOTE
Only on the Y-axis ball screw, you can use a grease gun to supply
grease through the grease nipple. Open the rear cover and you will see
the grease nipple.
5
Remove excess grease.
After moving the head and conveyor table back
and forth a few times along the X and Y axes, wipe
away excess grease.
6
Reconnect the motor power cable
connectors.
Plug the motor power cable connectors into the
controller.
7
Turn on the machine power switch.
Turn on the machine and perform warm-up
operation.
Unplugging the motor power cable connectors
Step 2
Y-axis
X-axis
Cleaning the ball screw
Step 3
Y-axis
X-axis
Applying grease to the ball screw
Step 4
Y-axis
X-axis
2. Monthly or bimonthly inspection
3-6
3
Periodic maintenance items

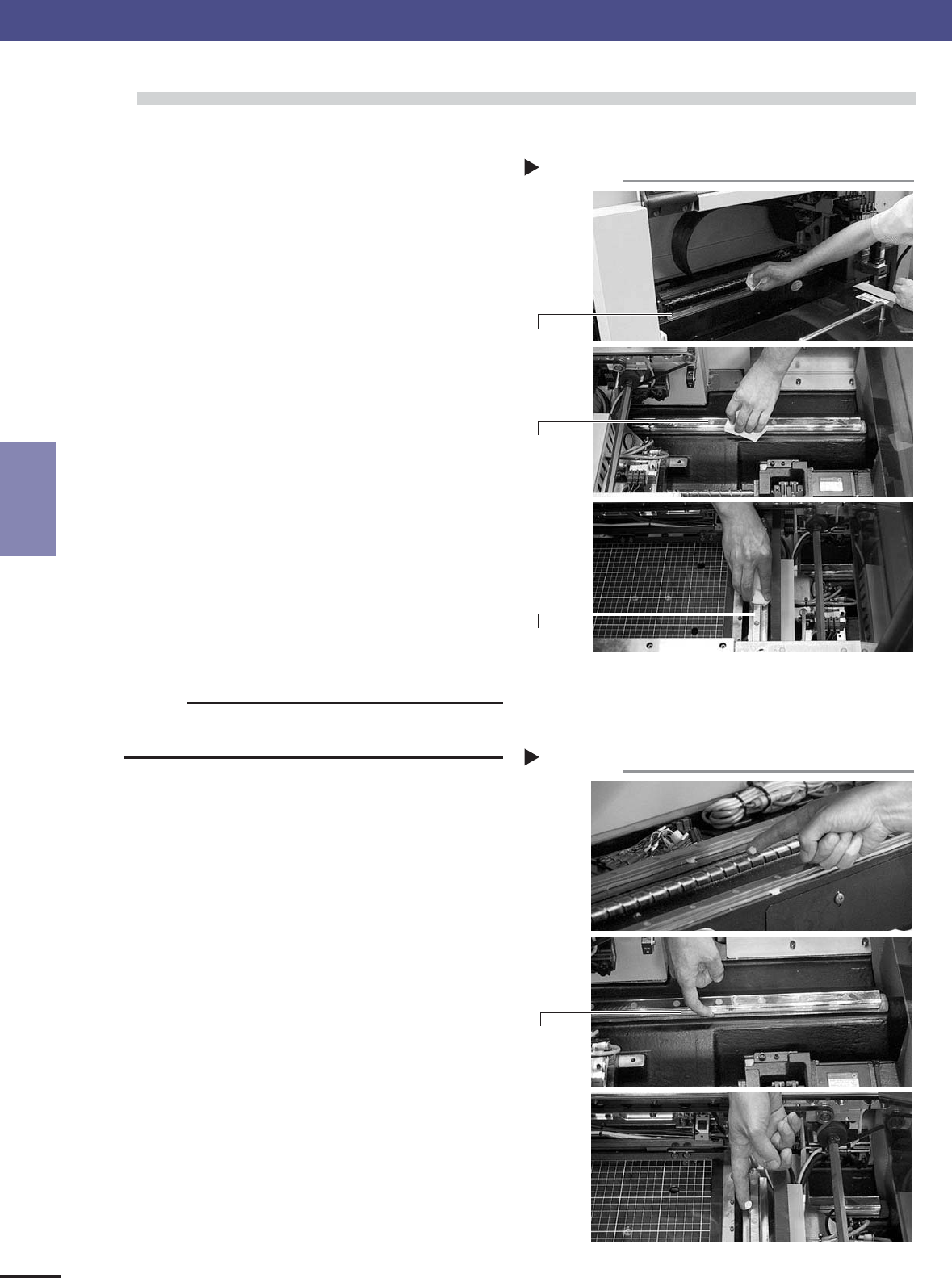

2.3 Cleaning and greasing the X, Y and W-axis linear guide rails
1
Turn off the machine power switch.
Quit the software operation and turn off the
machine power.
2
Unplug the motor power cable
connectors.
Open the front lower cover of the machine and
unplug the motor power cable connectors. (Move
the head and conveyor table along the X and Y
axes by hand as needed to make this work easier.)
3
Wipe away the old grease on the linear
guide rails as follows.
1. Move the head (or conveyor table) to the one
end of its axis and wipe away the old grease on
the guide rails with cleaning paper or cloth that
does not leave dust or residue.
2. Move the head (or conveyor table) to the
opposite end of its and wipe away the old
grease on the guide rails with cleaning paper or
cloth that does not leave dust or residue.
43319-E5-00
c
CAUTION
Wipe away thoroughly the old grease in the grooves of the
guide rails.
4
Apply grease to the guide rails.
Apply grease by hand uniformly over the surface
and grooves of the guide rails.
43320-E5-00
5
Remove excess grease.
After moving the head and conveyor table back
and forth a few times along their axes, wipe away
excess grease.
6
Reconnect the motor power cable
connectors.
Plug the motor power cable connectors into the
controller.
7
Turn on the power switch of the machine.
Turn on the machine and perform warm-up
operation.
Cleaning the linear guides
Step 3
Y-axis
guide
X-axis
guide
W-axis
guide
Applying grease to the linear guides
Step 4
Linear
guide
groove
