1- 8 1 Maintenance Oil filling and greasing tools Optional parts Grease gun 43106-E5-00 Grease gun PH-100 K48-M3852-00X GREASE GUN Product Name Note Parts No. Parts List Designation Oil filling and greasing tools Optiona…
1-7
1
Maintenance

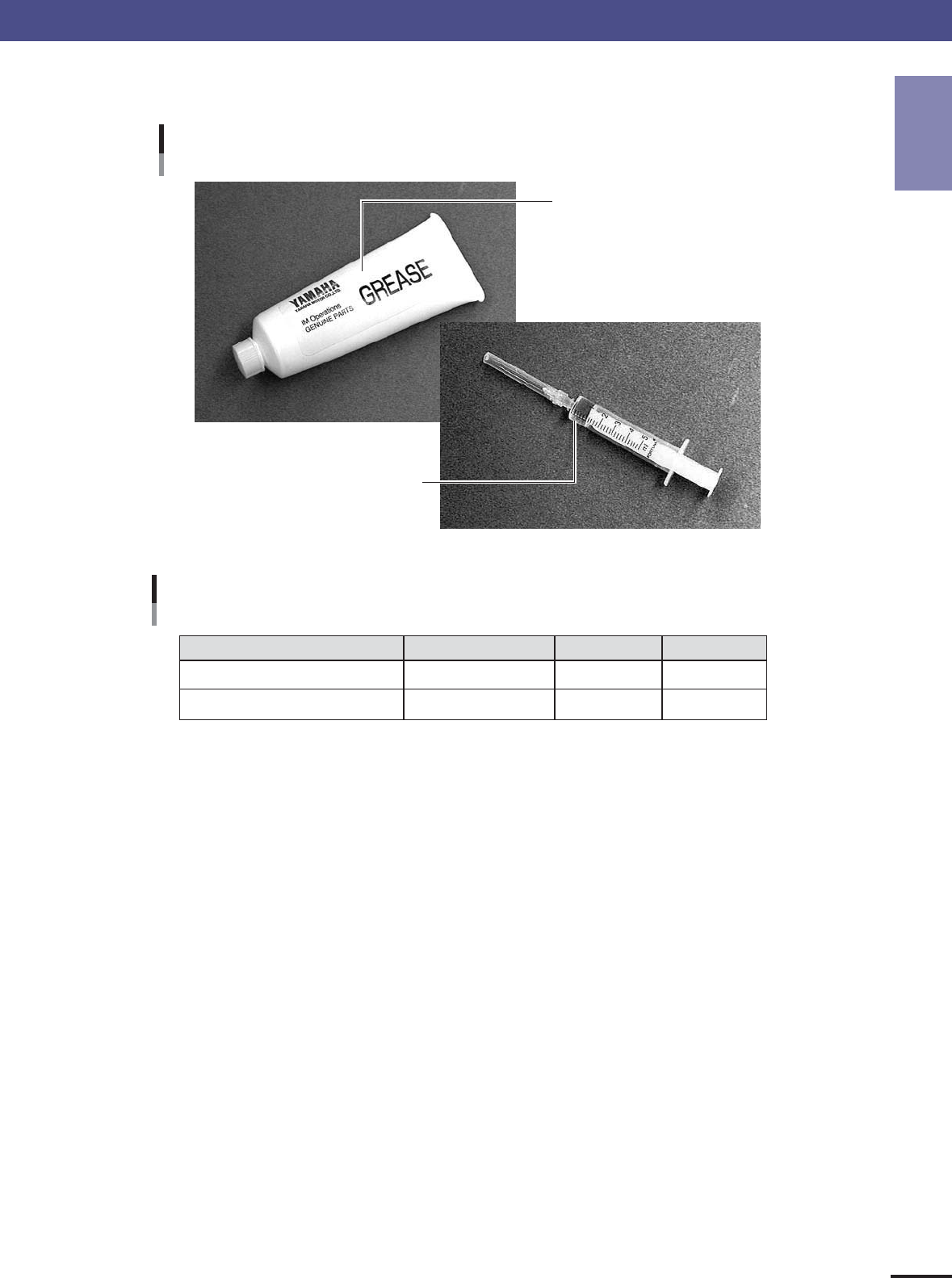

2.2.2 Oil filling tools and grease
Oil filling and greasing tools
Parts supplied machine
Lithium-based grease
(not for use on heads)
Oil syringe applicator for nozzle holder
43105-E5-00
Lithium-based grease
Oil syringe applicator for nozzle holder
LRL No.3 50g
Turbine oil VG32
K48-M3851-10X
KV8-M8870-00X
GREASE PACK
SYRYNGE OIL
Product Name Note
Parts No.Parts List Designation
Oil filling and greasing tools
Parts supplied machine
45105-E5-00
2. Preparing for maintenance tasks
1-8
1
Maintenance
Oil filling and greasing tools
Optional parts
Grease gun
43106-E5-00
Grease gun PH-100K48-M3852-00XGREASE GUN
Product Name NoteParts No.Parts List Designation
Oil filling and greasing tools
Optional parts
45106-E5-00
2. Preparing for maintenance tasks
1-9
1
Maintenance
2.3 Required tools
Prepare the following tools and items necessary for maintenance.
Name Description
Too list
Large, small (supplied with machine)
Large, small (supplied with machine)
#0, #1 (Used to replace nozzle leaf springs and air valves.)
1 set (supplied with machine)
Used to replace ejector filters.
Used to supply turbine oil (VG32).
Option
Option
Used to clean nozzles. (Option)
Phillips screwdriver
Slotted screwdriver
Phillips precision screwdriver
Hex wrench set
Tweezers
Nozzle holder lubricating syringe
Grease gun
Air blow gun
Ultrasonic cleaner
45107-E5-00
Name Description
Other tool list
Used to lubricate ball screws and guides other than head assembly. (Supplied with machine)
Used to lubricate nozzle holders and nozzles.
Use cleaning paper that does not leave dust, grit or residue.
Use IPA (iso-propyl alcohol) or ethanol.
Used for cleaning spline shaft.
Used for cleaning nozzle holders.
Used for marking when replacing conveyor belt.
Used to clean half mirror and lighting unit. (Supplied with machine)
Used to clean the lens of multi-vision camera. (Supplied with machine)
Used to clean the camera lighting unit. (Supplied with machine)
Grease (lithium-based grease)
Turbine oil (VG32)
Cleaning paper
Cleaning alcohol
Paper cup or tray
Film container or equivalent
Marker pen
Cotton swab stick
Lens cleaner
Lens blow brush
45108-E5-00
2. Preparing for maintenance tasks
