1- 9 1 Maintenance 2.3 Required tools Prepare the following tools and items necessary for maintenance. Name Description Too list Large, small (supplied with machine) Large, small (supplied with machine) #0, #1 (Used to r…
1-8
1
Maintenance
Oil filling and greasing tools
Optional parts

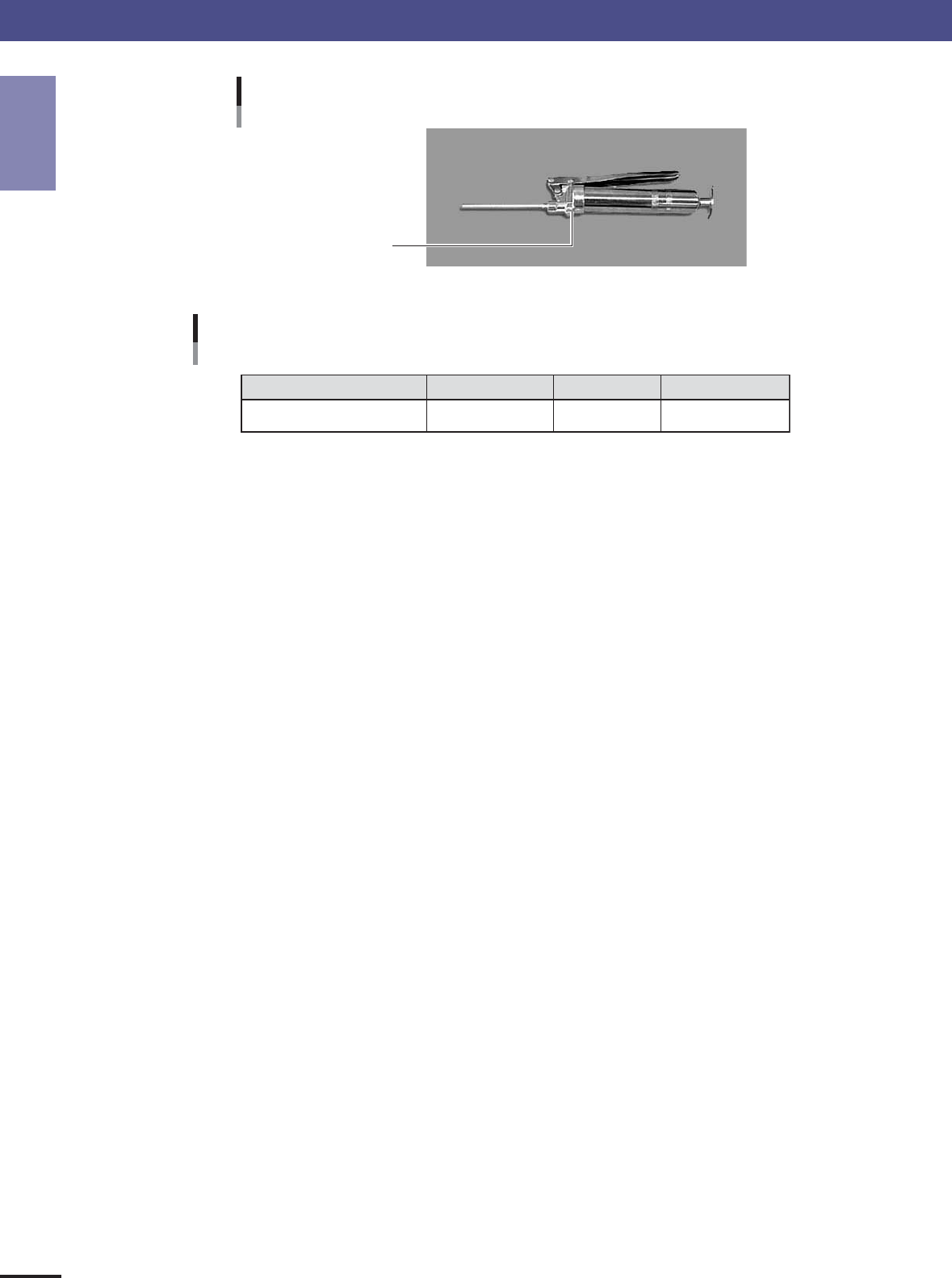

Grease gun
43106-E5-00
Grease gun PH-100K48-M3852-00XGREASE GUN
Product Name NoteParts No.Parts List Designation
Oil filling and greasing tools
Optional parts
45106-E5-00
2. Preparing for maintenance tasks
1-9
1
Maintenance
2.3 Required tools
Prepare the following tools and items necessary for maintenance.
Name Description
Too list
Large, small (supplied with machine)
Large, small (supplied with machine)
#0, #1 (Used to replace nozzle leaf springs and air valves.)
1 set (supplied with machine)
Used to replace ejector filters.
Used to supply turbine oil (VG32).
Option
Option
Used to clean nozzles. (Option)
Phillips screwdriver
Slotted screwdriver
Phillips precision screwdriver
Hex wrench set
Tweezers
Nozzle holder lubricating syringe
Grease gun
Air blow gun
Ultrasonic cleaner
45107-E5-00
Name Description
Other tool list
Used to lubricate ball screws and guides other than head assembly. (Supplied with machine)
Used to lubricate nozzle holders and nozzles.
Use cleaning paper that does not leave dust, grit or residue.
Use IPA (iso-propyl alcohol) or ethanol.
Used for cleaning spline shaft.
Used for cleaning nozzle holders.
Used for marking when replacing conveyor belt.
Used to clean half mirror and lighting unit. (Supplied with machine)
Used to clean the lens of multi-vision camera. (Supplied with machine)
Used to clean the camera lighting unit. (Supplied with machine)
Grease (lithium-based grease)
Turbine oil (VG32)
Cleaning paper
Cleaning alcohol
Paper cup or tray
Film container or equivalent
Marker pen
Cotton swab stick
Lens cleaner
Lens blow brush
45108-E5-00
2. Preparing for maintenance tasks
Chapter 2
Daily maintenance items
Table of Contents
1. Checking the nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
1.1 Check with software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
1.2 Checking the nozzles visually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2. Checking the nozzle leaf springs . . . . . . . . . . . . . . . . . . 2-4
3. Checking the nozzle spring action . . . . . . . . . . . . . . . . . 2-5
4. Cleaning the feeder plate. . . . . . . . . . . . . . . . . . . . . . . . . 2-6
5. Cleaning the camera lighting unit . . . . . . . . . . . . . . . . . . 2-7
