1 − 19

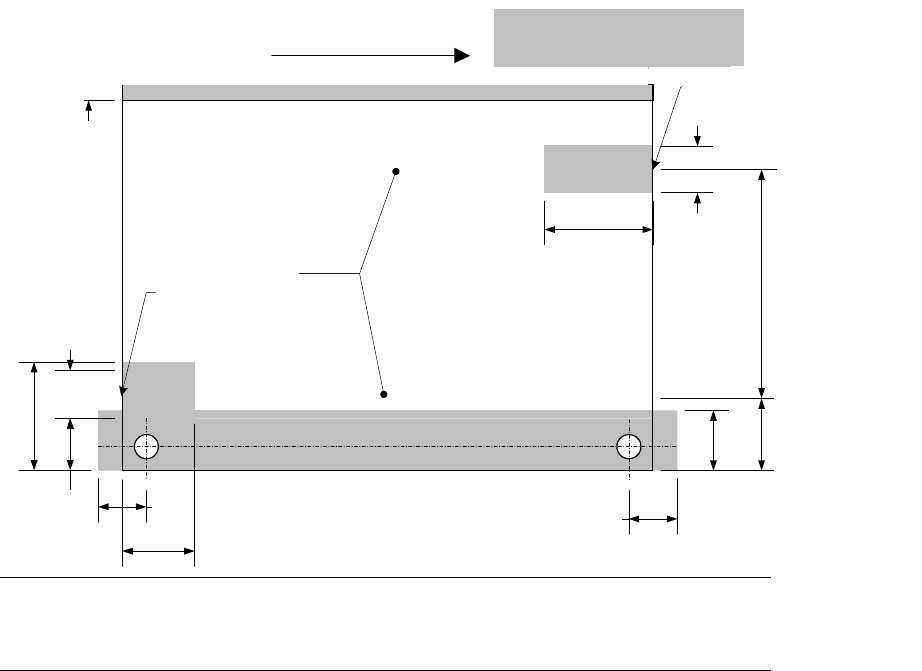

(4) Area in which backup pins cannot be proved KE-2030E
搬送レール固定側
E基板仕様
基板搬送方向
バックアップピン
設置不可範囲
4mm
17.5mm
17.5mm
21mm
50mm
20mm
0～220mm（可動）37mm
（搬送方向左流れ時、35mm）
36mm
105mm
0～85mm
20mm
基板裏面デッドスペース
30mm範囲
ストッパ設置位置
Xストッパ設置位置
Note: When the PWB is transferred from right to left, the marginal area of 50mm x
20mm is set on the left.
When the PWB is transferred from right to left, the marginal area of 36mm x
105mm is set on the right.
Movement of PWB
X stopper position
Stopper position
Dead zone of the rear of a PWB:
within the 30 mm-area
Conveying rail (fixed)
Area in which backup
pins cannot be provided
(Variable)
(35 mm when the
PWB is
transferred from
Movement of PWB
Stopper position
Area in which backup
pins cannot be provided
1 − 20

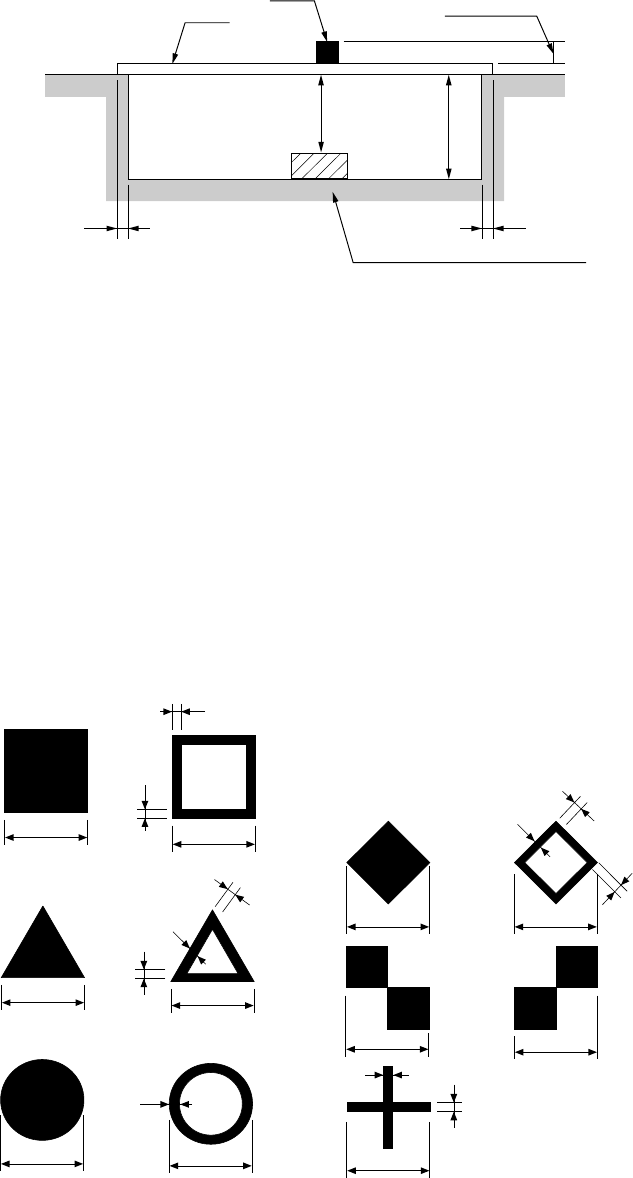

(5) Allowable height of a component to be placed and allowable height of the rear of
a board
Figure 1.1.7.1
5. Board Recognition Marks
Create the board recognition marks under the following conditions. (See Figure
1.1.7.2.) We recommend the filled circle for the mark. The clearance area
around the mark shall be as shown in Figure 1.1.7.3. Within this area, there
shall not be any silk patterns, strip lines (including inner layer patterns), through
holes, resists, and other components.
A size: 1 to 3 mm ±0.1 mm
B size: 0.2 ±0.03 mm
C size: 0.5 to 3.0 mm ±0.1 mm
A
B
B
B
A
A
A
C
B
C
C
C
C
A
B
A
B
B
B
B
B
B
Figure 1.1.7.2
Component
PWB
Max. 6mm
Marginal area
on the back of
PWB
Stopper or X stopper position
Max.
30m
Max.
40m
1 − 21
Notes: 1. When recognition, the mark shall be placed in the angle shown above.
However, if you specify "Use of each circuit mark" for a non-matrix PWB,
the mark can be recognized only when all marks of the reference circuit
are positioned in the angle described and the circuit is positioned at 90,
180, 270 or 360 degrees.
2. The fiducials of the same shape and same size is preferable within a
board.
3. When processing, copper foil or solder plating can be recognized.
4. Maximum number of marks which can be registered
Board mark: 1 set (2 marks or 3 marks)
IC mark: 50 sets (Pairs of 2 marks)
5. Items that can be registered
Mark number
Balance detection window
Normal/reverse rotation identification when detected
Mark shape
Outer dimensions
Effective value of projection
Matching
6. If there is no recognition mark on a board, register a user designated
template to allow the machine to recognize marks.

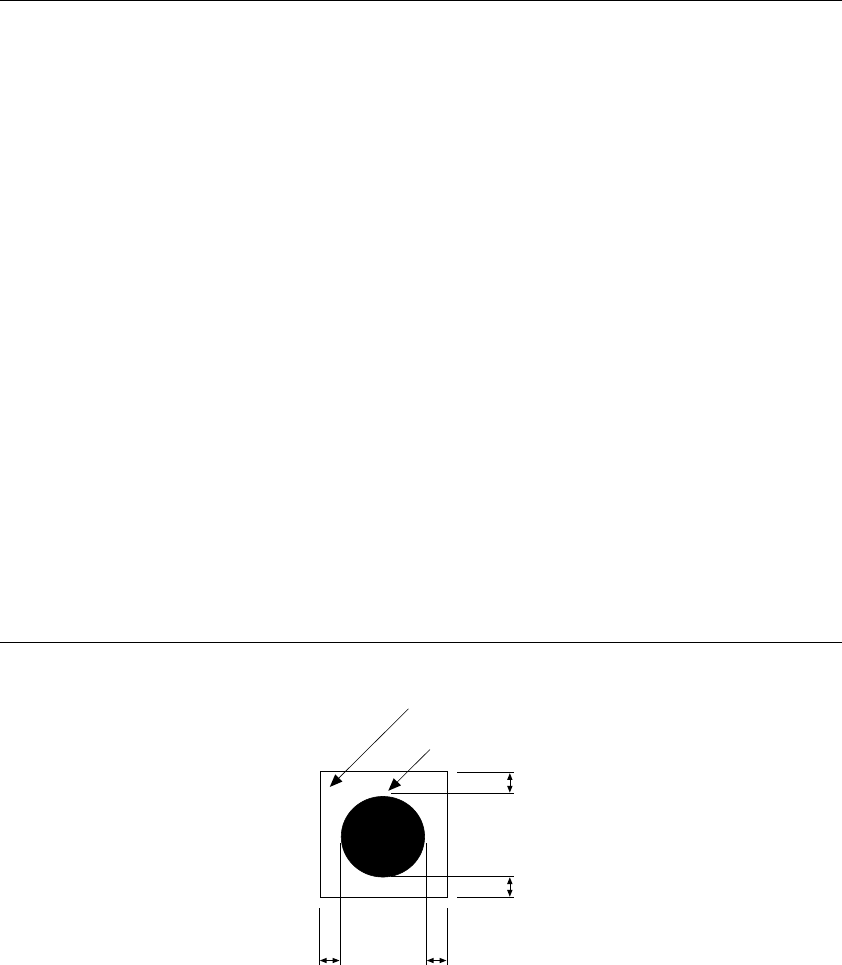

Figure 1.1.7.3
Clearance area
Recognition mark
0.5 mm or more mark
0.5 mm or more mark
0.5 mm or more mark
