9.4.4.2 Setting the number of times for replacing a head
When you select the [Tool] command on the menu bar, the [Exchange frequency
setup] command on the displayed menu, then the [Each head] command the screen
appears as shown in Figure 9.4.4.2.1.
When you replace the head nozzle with another one, set this number to <0> to
initialize the number.
Figure 9.4.4.2.1 Exchange frequency setup dialog box
9.4.4.3 Setting the warning level
When you select the [Tool] command on the menu bar, the [The Warning level is set]
command on the displayed menu, then the [Each head] command, the screen
appears as shown in Figure 9.4.4.3.1.
Figure 9.4.3.3.1 "The warning level is set" dialog box
9.4.4.4 Setting the error level
When you select the [Tool] command on the menu bar, the [The error level is set]
command on the displayed menu, then the [Each head] command, the screen
appears as shown in Figure 9.4.4.4.1.
Figure 9.4.4.4.1 "The error level is set" dialog box
9 − 15
9.4.5 Nozzle operation information
9.4.5.1 Operation Information of each nozzle
When you select the [Windows] command on the menu bar, then the [Operation
Information of each nozzle] command on the displayed menu, the screen appears as
shown in Figure 9.4.5.1.1.
No. Item Description
1 NZL Change
Counts how many times the nozzle (specified with the ATC number) was
replaced.
2 Pick
Counts how many times the nozzle (specified with the ATC number) picked a
component totally.
3 Place
Counts how many times the nozzle (specified with the ATC number) placed a
component totally.
4 Exch. Err.
Counts how many times a replacement error occurred per a nozzle (specified
with the ATC number).
5 Pick Err.
Counts how many times a pick-up error occurred per a nozzle (specified with
the ATC number).
6 Retry
Counts how many times the nozzle (specified with the ATC number) performed
a retry.
7 LA Recog
Counts how many times an LA recognition error occurred at the nozzle
(specified with the ATC number).
8 V. Recog
Counts how many times a vision recognition error occurred at the nozzle
(specified with the ATC number).
9 Chip
Counts how many times a chip rise error occurred at the nozzle (specified with
the ATC number).
10 Dimension
Counts how many times an odd-shaped component error occurred at the nozzle
(specified with the ATC number).
11 Vrfy
Counts how many times a verify error occurred at the nozzle (specified with the
ATC number).
12 Cpla
Counts how many times a coplanarity error occurred at the nozzle (specified
with the ATC number).

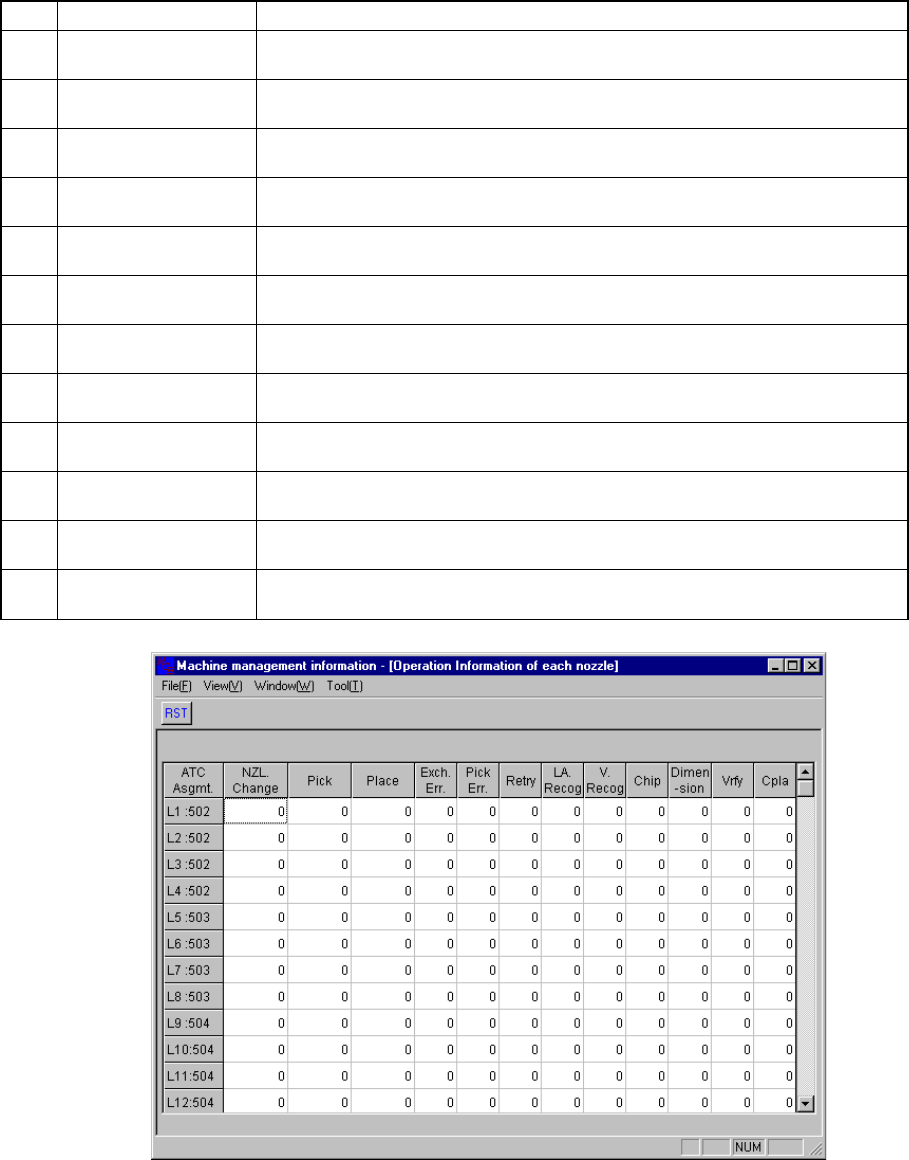

Figure 9.4.5.1.1. Nozzle Operation Information
