LFR Axis
Flip Head Section
KLG-1608
27-2
B
A
B
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90K41-001660
LABEL,CAUTION
1
2
KLY-M7112-00
COVER 1-A
1
A
3
KLY-M7114-00
COVER 1-B
1
B
4
KLY-M7115-00
COVER 2-A
1
A
5
KLY-M7116-00
COVER 2-B
1
B
6
KLY-M7117-00
COVER 3-A
1
A
7
KLY-M7118-00
COVER 3-B
1
B
8
KLY-M711A-00
COVER 4-A
1
A
9
KLY-M711B-00
COVER 4-B
1
B
10
KLY-M711C-00
BRACKET,HARNESS A
1
A
11
KLY-M711D-00
BRACKET,HARNESS B
1
B
12
KLY-M7121-00
HOLDER,MOTOR LFR
1
13
KLY-M7122-00
REDUCTION GEAR
1
14
KLY-M7123-00
DAMPER LF
1
15
KLY-M7124-00
SHAFT LF
1
16
KLY-M712A-00
BRACKET,PANEL A
1
A
17
KLY-M712B-00
BRACKET,PANEL B
1
B
18
$NK-2N
NYLON CLIP
14
19
90990-01J043
BOLT HEX,SOCKET HEAD
2
20
90K2K-2N1340
AC SERVO MOTOR
1
A
21
90K2K-2N1341
AC SERVO MOTOR
1
B
22
91312-03005
BOLT HEX,SOCKET HEAD
4
23
91312-03008
BOLT HEX,SOCKET HEAD
8
24
91312-03014
BOLT HEX,SOCKET HEAD
4
25
91312-04005
BOLT HEX,SOCKET HEAD
4
26
91312-04008
BOLT HEX,SOCKET HEAD
3
27
91312-04014
BOLT HEX,SOCKET HEAD
4
28
91312-05025
BOLT HEX,SOCKET HEAD
4
29
92012-03005
BOLT BUTTON HEAD
14
30
92012-03006
BOLT BUTTON HEAD
4
31
92012-04008
BOLT, BOTTON HEAD
4
32
97602-03306
SCREW PAN HEAD W/WASHER
14
33
99480-05010
PIN,PARALLEL
1
33
26
34
25
33
12
37
27
38
30
11
29
10
8
21
39
31
6
38
1
5
35
28
9
4
4
3
34
7
32
40
15
18
23
33
16
27
27
20
1
17
19
2
36
13
27
24
14
27
22
33
33
26
34
25
33
12
37
27
38
30
11
29
10
8
21
39
31
6
38
1
5
35
28
9
4
4
3
34
7
32
40
15
18
23
33
16
27
27
20
1
17
19
2
36
13
27
24
14
27
22
33
Head Assy
Flip Head Section
KLG-1608
27-3
B
A
B
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$BF4-M3
JOINT
2
2
$TLR4-M5
JOINT
1
3
KDL-M152M-00
SPRING
1
4
KHY-M711A-00
PIN,POST
2
5
KLY-M7125-00
HEAD BASE
1
A
6
KLY-M7126-00
DOG LFA
1
A
7
KLY-M7127-00
GUIDE
1
8
KLY-M7128-00
STOPPER LF
1
9
KLY-M7129-00
STOPPER 1
1
10
KLY-M7130-00
STOPPER 2
1
11
KLY-M7132-00
CLAMP BASE
1
12
KLY-M7134-00
BRACKET,STOPPER
1
13
KLY-M7135-00
HEAD BASE
1
B
14
KLY-M7136-00
DOG LFB
1
B
15
KLY-M7141-00
ARM,HEAD A
1
A
16
KLY-M7142-00
DOG LPA
1
A
17
KLY-M7143-00
CAM FOLLOWER
1
18
KLY-M7144-00
STOP PIN
1
19
KLY-M7145-00
MANIFOLD
1
20
KLY-M7146-00
SPACER
1
21
KLY-M7147-00
BLOCK,HEAD
1
22
KLY-M7148-00
ARM,HEAD B
1
B
23
KLY-M7149-00
COVER,TUBE
1
24
KLY-M7152-00
DOG LPB
1
B
25
KLY-M7153-00
O-RING
1
26
KLY-M71C1-00
SHANK,12U ASSY F.
1
27
90112-2AJ005
BOLT, HEX.SOCKET HEAD
10
28
90990-19J016
NEEDLE PIN
1
29
90990-19J017
NEEDLE PIN
1
30
90990-41J128
SPACER
1
31
90990-41J174
COLLAR
2
32
91312-03006
BOLT HEX,SOCKET HEAD
2
33
91312-03008
BOLT HEX,SOCKET HEAD
11
34
91312-03010
BOLT HEX,SOCKET HEAD
4
35
91312-03016
BOLT HEX,SOCKET HEAD
1
36
91312-03020
BOLT HEX,SOCKET HEAD
2
37
92012-03008
BOLT BUTTON HEAD
2
38
92902-03600
WASHER,PLAIN
2
39
92A08-02303
SCREW SET
1
40
95302-03600
NUT HEXAGON
1
4
5
3
8
10
12
2
1
10
7
11
9
10
6
9
4
5
3
8
10
12
2
1
10
7
11
9
10
6
9

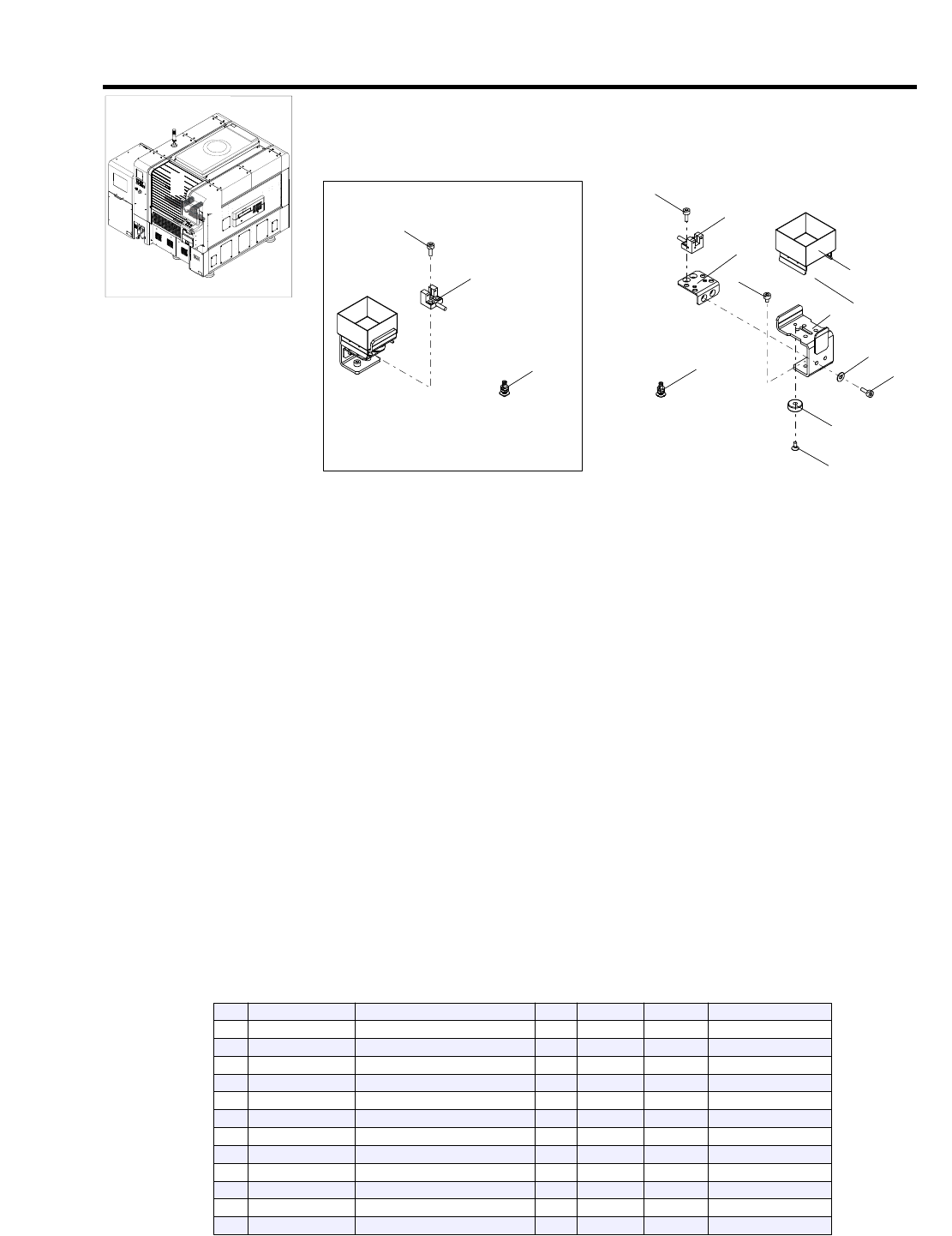

Shank/Dust Box
Flip Head Section
KLG-1608
27-4
B
A
B
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KHT-M2688-00
MAGNET
1
2
KLY-M653N-00
SENS,DUST BOX A ASSY
1
A
3
KLY-M653N-10
SENS,DUST BOX B ASSY
1
B
4
KLY-M71C1-00
SHANK,12U ASSY F.
1
A
5
KLY-M71C1-10
SHANK,12C ASSY F.
1
B
6
KLY-M9902-00
BOX,CHIP
1
7
KLY-M9903-00
BRKT.,BOX
1
8
KLY-M9904-00
BRKT.,MAGNET
1
9
91312-03004
BOLT HEX,SOCKET HEAD
2
10
91312-03008
BOLT HEX,SOCKET HEAD
6
11
92902-03200
WASHER,PLAIN
2
12
98702-03006
SCREW,FLAT HEAD
1
