Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
16
2.4 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at cer-
tain modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent it
being switched on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2
2
2.4.1 Definitions
2
Please note 2
2
2
2
Caution 2
Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
17

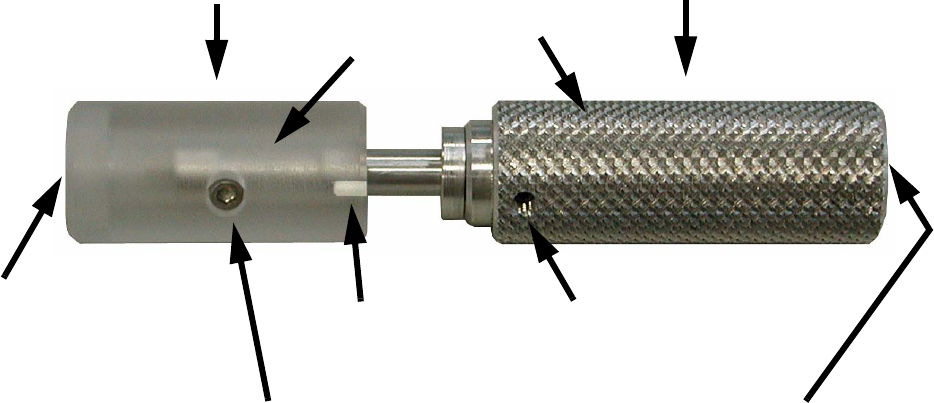

2.5 Structure of the insertion and extraction tool
(03055046-01)
2
2
2.6 Preparatory work
: Using the software, set down all the nozzles in the nozzle changer.
: Dock the component trolley out of its location.
: Move the gantry so that the C&P 20 placement head is easily accessible.
2
Extraction end
Insertion end
Drill bit (inside the
guide sleeve)
Screw for removing the
movable guide sleeve
Grub screw for fixing and adjust-
ing the drill bit (1 mm)
Surface for pressing against
the filter disk
Handle
Guide sleeve
Adjusting hole
Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
18
2.7 Removing the filter disk
: Switch off the compressed air to the placement machine so that no dirt particles can enter the
vacuum system when the filter disks are removed.

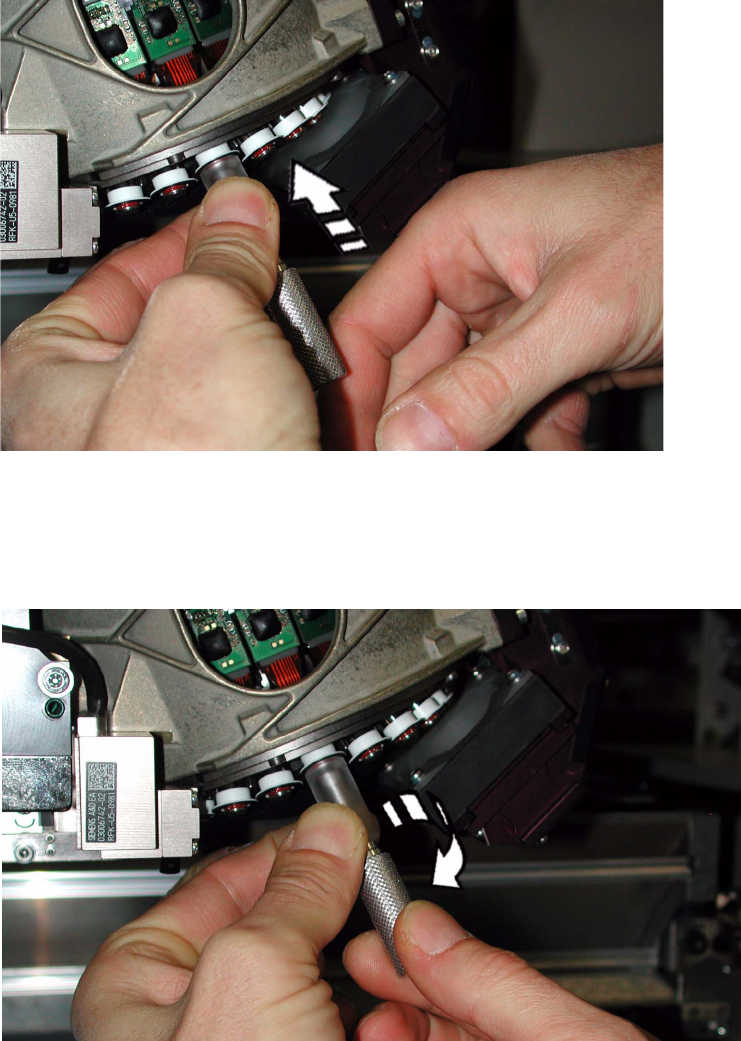

: Place the tool with the guide sleeve in front on the collar.
2
: Press the guide sleeve against the collar until the segment is spring deflected completly.
Use the handle to turn the drill bit clockwise into the filter disk until it reaches the stop.
: Then turn the handle a quarter turn more!
