Filter disk insertion and extraction tool for the C&P20 04/2007 Edition 24
Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
23

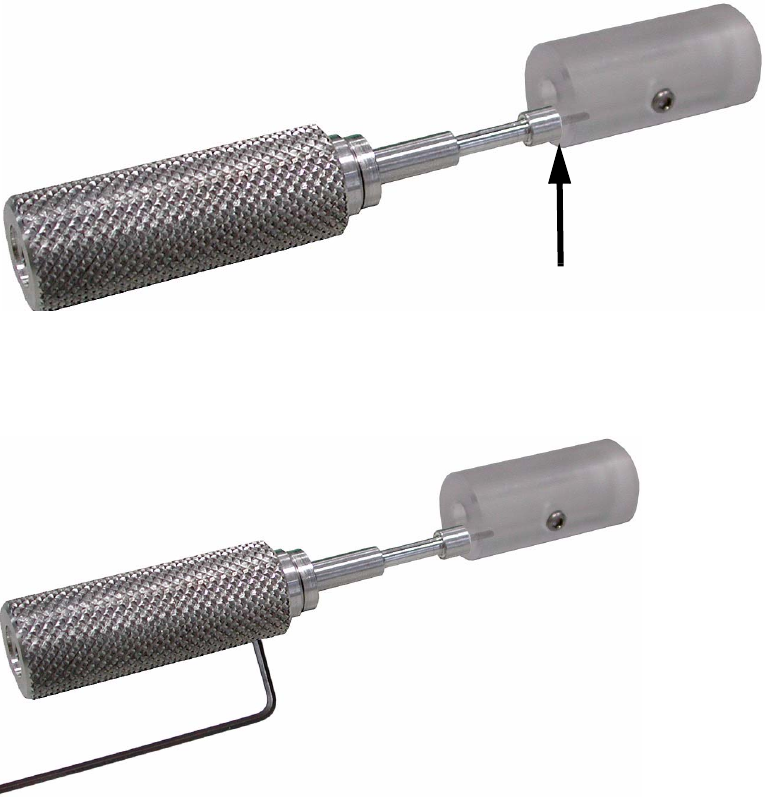

: Push the tool onto the end of the drill bit in the guide sleeve as far as it will go.
The correct length of drill bit is now inserted into the adjusting hole.
2
2
: Tighten the drill bit once more.
2
2
: Place the guide sleeve on the tool and screw it tight (1.5 mm hexagon socket spanner).
2
