Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
22

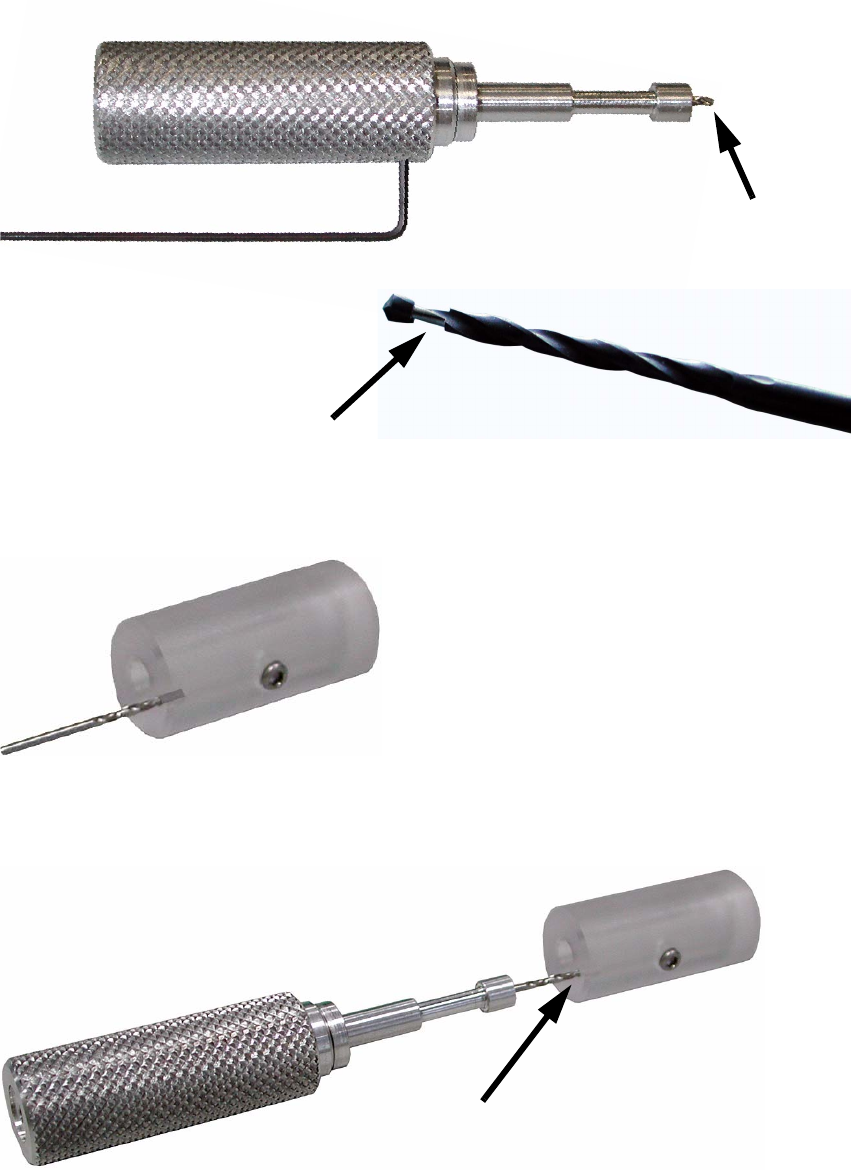

: Use a 0.89 mm hexagon socket spanner to loosen the fixing screw for the drill bit and pull the
bit out of the tool.
2
: Insert a new drill bit (max. length 34 mm) into the adjusting hole in the guide sleeve.
2
: Push the tool onto the end of the drill bit in the guide sleeve.
2
Drill bit
Cutout
Hole
Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
23
: Push the tool onto the end of the drill bit in the guide sleeve as far as it will go.
The correct length of drill bit is now inserted into the adjusting hole.
2
2
: Tighten the drill bit once more.
2
2
: Place the guide sleeve on the tool and screw it tight (1.5 mm hexagon socket spanner).
2
