Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
19
: Press the guide sleeve further against the collar and pull the handle back.
This will remove the filter disk from the segment.
2
: Remove the tool.
The filter disk is now in the guide sleeve and sticks on the tool (drill bit).
: Pull the insertion end downwards so that the filter disk gets separated from the drill bit.
: If the filter disk remains in the segment, use pointed tweezers to remove the filter disk through
the opening created by the drill bit.
2
: Dispose of the filter disk.
2
It is defective and must not be used again. 2
Filter disk
Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
20
2.8 Attaching the filter disk
: Switch on the compressed air to the placement machine.
This will make it easier to insert the filter disks.

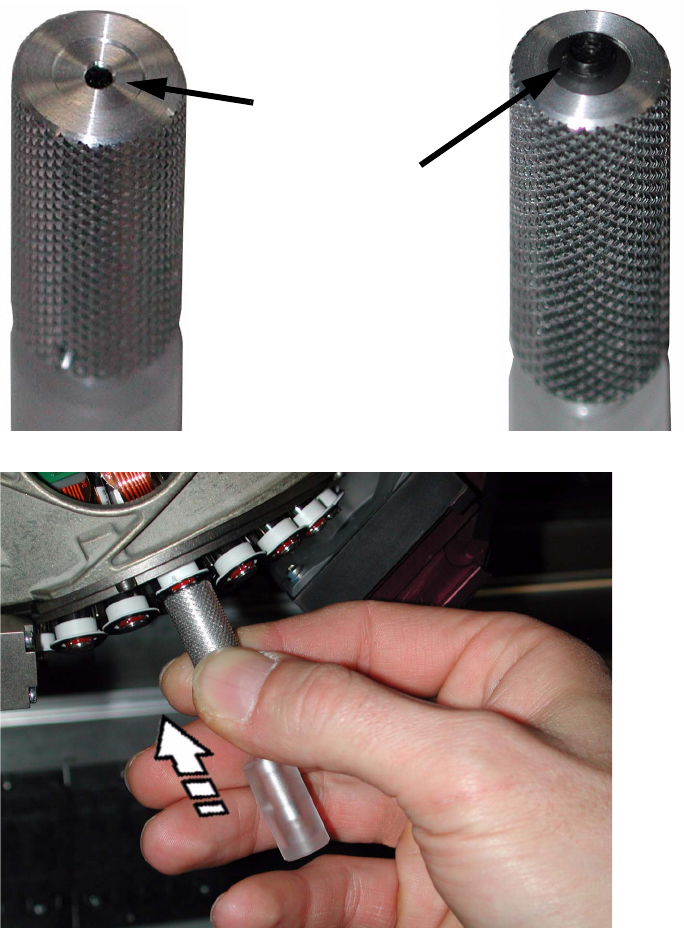

: Place the top of the filter disk on the tool.
2
2
2
: Use the tool to press the filter disk centrally onto the collar.
Indentation
Filter disk
Filter disk insertion and extraction tool for the C&P20
04/2007 Edition
21
2.9 Final tasks
: Dock the component trolley into its location.
: Using the software, pick up all the nozzles.
2.10 Replacing and adjusting the drill bit

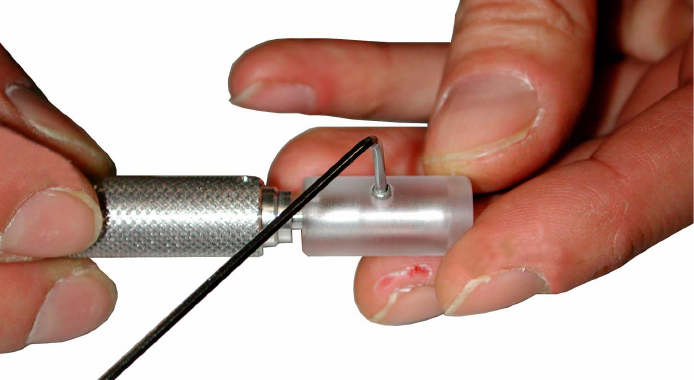

: Use a 1.5 mm hexagon socket spanner to loosen the fixing screw for the guide sleeve and pull
the guide sleeve off.
