Installation of SQL Server 2008 02/2011 Edition
3.2 Installation of SQL Server 2008
Please follow the instructions below for the manual installation of SQL Server 2008.
Note:
Close all other applications before you start with the installation of SQL Server 2008.
You also need to have administrative privileges to proceed.
→ Insert the SQL Server 2008 installation DVD into your drive.
After some seconds, the following dialog is displayed:

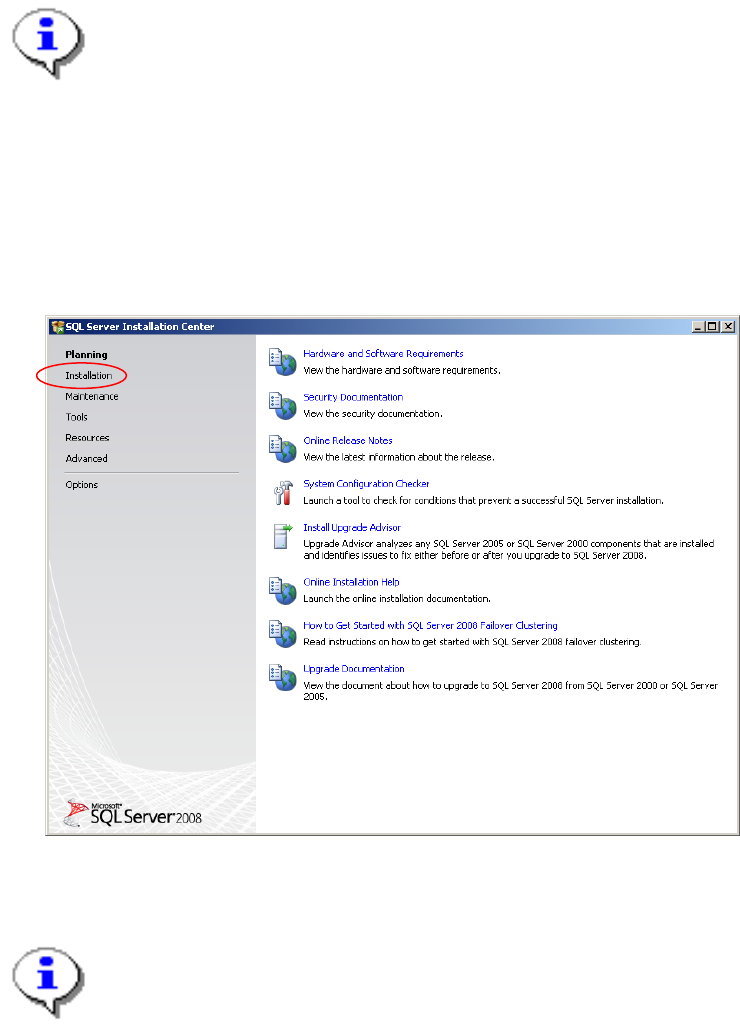

Fig. 3-4: SQL Server Installation Center - Planning
Note:
If the dialog does not appear start your Windows Explorer, browse to the file setup.exe on the
SQL Server 2008 installation DVD and double-click it .
→ Click on Installation on the left side
9
Installation of SQL Server 2008 02/2011 Edition
The window should look like this:

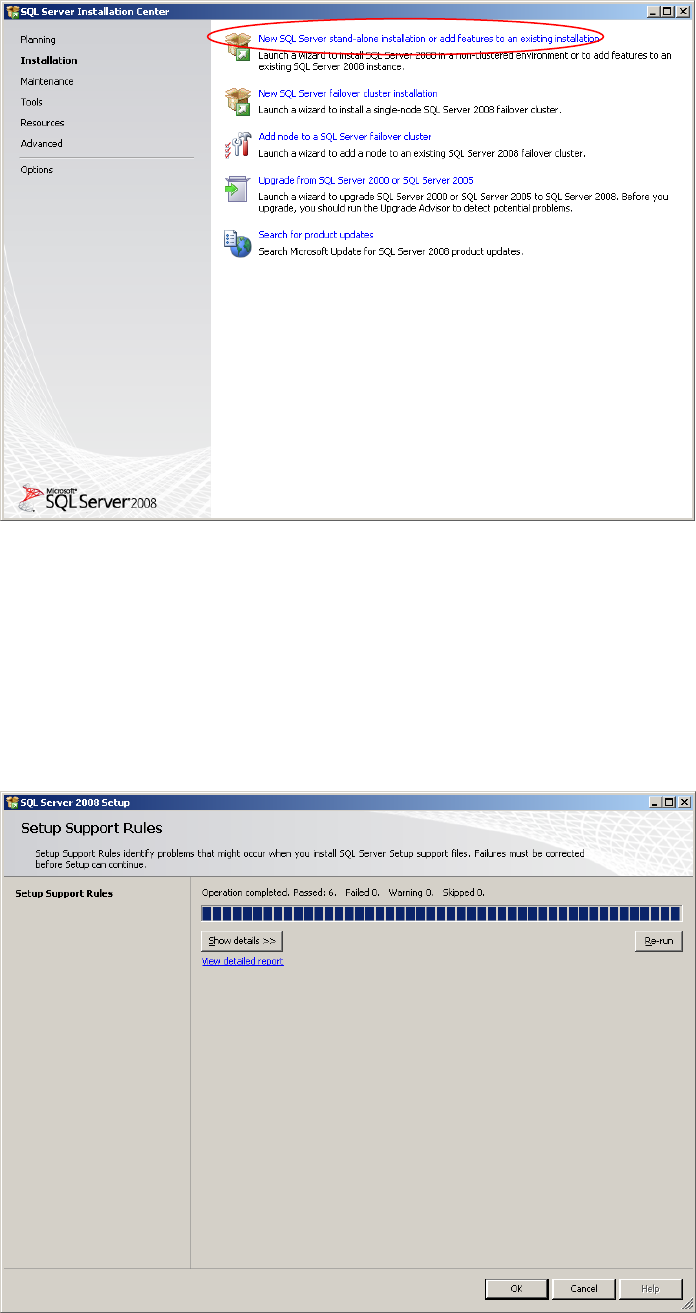

Fig. 3-5: SQL Server Installation Center - Installation
→ Click on New SQL Server stand-alone installation or add features to an existing
installation.
After some seconds, the following window will be displayed:
Fig. 3-6: SQL Server Setup Support Rules
10
Installation of SQL Server 2008 02/2011 Edition
→ Click the button Show details >> to examine the rules and follow the rule instructions if
necessary.
→ Click OK to continue.
After some seconds, the following window will be displayed:

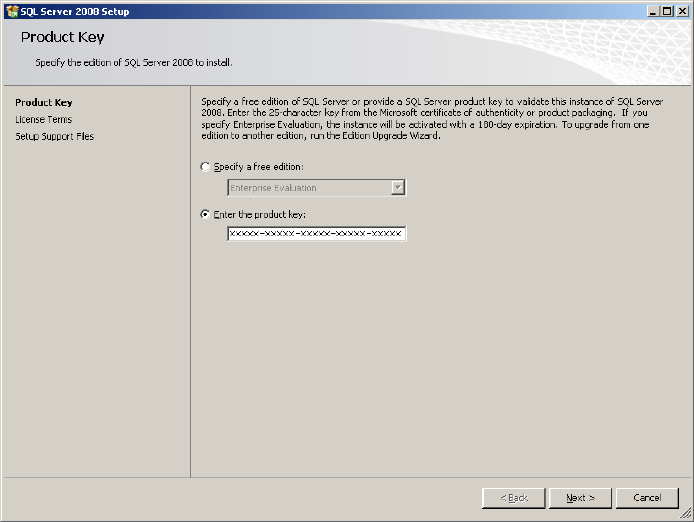

Fig. 3-7: SQL Server Setup Product Key
→ Enter/verify the product key
→ Click the Next > button to continue.
The following window will be displayed:
11
