Installation of SQL Server 2008 02/2011 Edition
→ Click the button Show details >> to examine the rules and follow the rule instructions if
necessary.
→ Click OK to continue.
After some seconds, the following window will be displayed:
Fig. 3-7: SQL Server Setup Product Key
→ Enter/verify the product key
→ Click the Next > button to continue.
The following window will be displayed:
11
Installation of SQL Server 2008 02/2011 Edition
Fig. 3-8: SQL Server Setup License Terms
→ Ensure the checkbox besides I accept the license terms is checked.
→ Click the Next > button to continue.
The following window might be displayed:
Fig. 3-9: SQL Server Setup Support Files
→ Click the Install button to continue installing support files. This may take some seconds.
The “Setup Support Rules” window reappears.
12
Installation of SQL Server 2008 02/2011 Edition
→ Click the Next > button to continue.
The feature selection window appears:

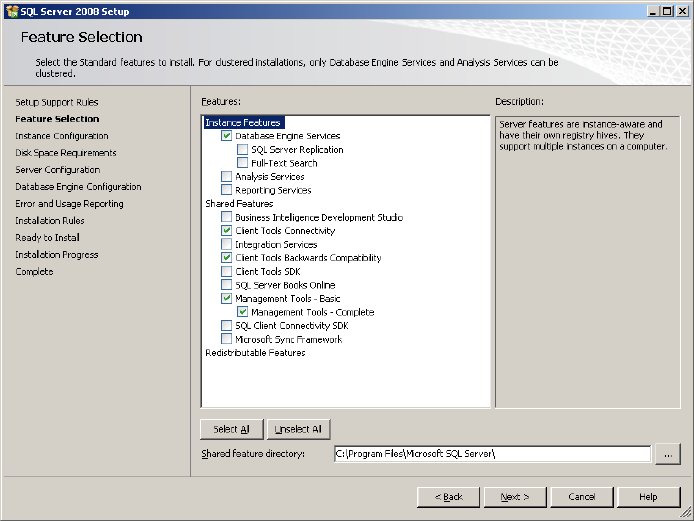

Fig. 3-10: SQL Server Setup Feature Selection
→ Ensure the following features being selected:
- Database Engine Services
- Client Tools Connectivity
- Client Tools Backwards Compatibility
- Management Tools – Basic
- Management Tools – Complete
→ Click the Next > button to continue.
The following window will be shown:
13
