Installation of SQL Server 2008 02/2011 Edition
3.3 After the installation
3.3.1 Needed Settings
After installation, verify that the option “Windows fibers” is not set:
→ Click Start – Programs – Microsoft SQL Server 2008– SQL Server Management Studio
The following dialog is displayed:
Fig. 3-28: SQL Server Enterprise Manager
→ Select your Server- and Instance name and specify the Windows Authentication.
→ Click the Connect button.
22
Installation of SQL Server 2008 02/2011 Edition

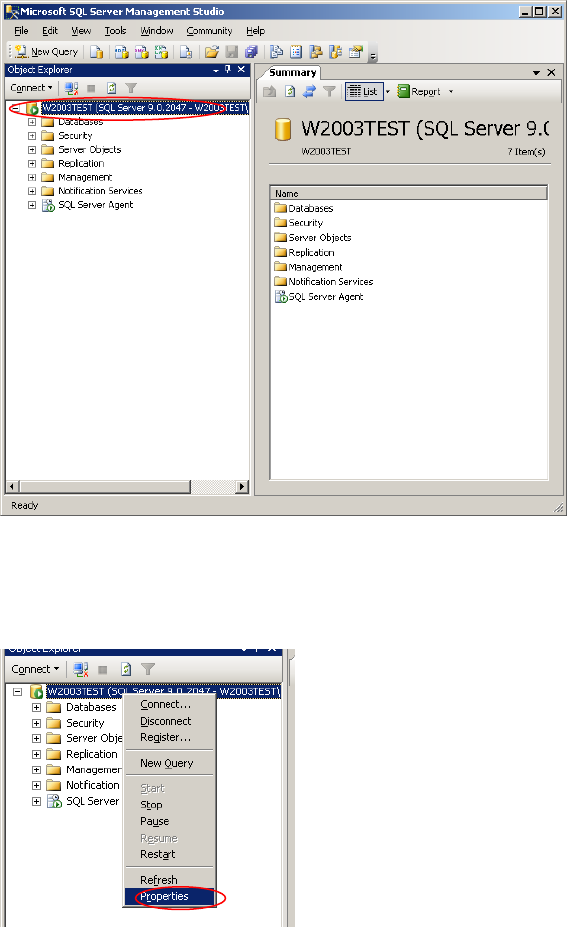

After connecting successfully, the following dialog is displayed:
Fig. 3-29: SQL Server Management Console
→ Right-click on your server connection on the left side and select Properties.
Fig. 3-30: Server connection properties
23
Installation of SQL Server 2008 02/2011 Edition

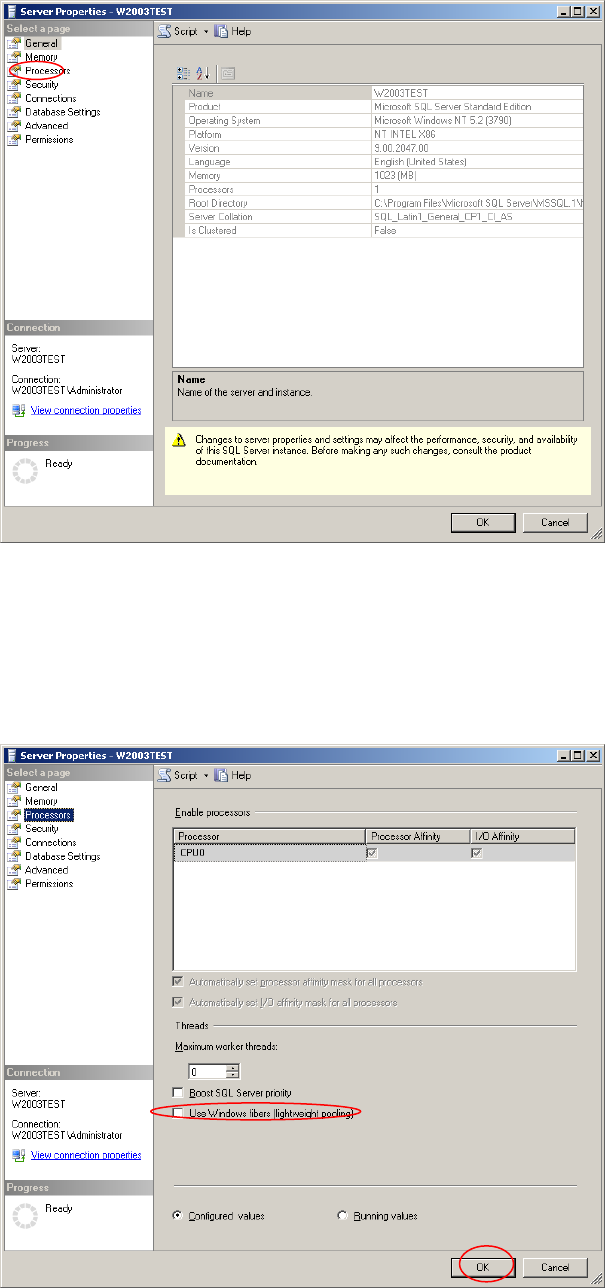

The following dialog is displayed:
Fig. 3-31: Server connection properties - General
→ Select the processors option- page on the left side
The following dialog is displayed:
Fig. 3-32: Server connection properties - General
24
