ADJUSTA BLE SCREE N MOUNT (ASM) CALIBR ATIONS 12.20 Technical Reference Manual Chapter Issue 7 Oct 06 CALIBRA TIONS Chase to T able Level NOTE This procedu re requires the use of a DEK T est Plate, DEK p art number 1 136…
ADJUSTABLE SCREEN MOUNT (ASM)
REPLACEMENT PROCEDURES
Chapter Issue 7 Oct 06 Technical Reference Manual 12.19
6. Release the cylinder pulley retaining pin from the pulley block and remove
the pulley from the block releasing the cable assembly.
7. Rotate the chase rail assembly through 180°
8. Remove the cable end from the retaining slot in the chase rail assembly.
9. Un-thread the cable assembly from the cable pulleys and cylinder pulley.
Fitment 1. Fit the end of the new cable assembly to the retaining slot in the chase rail
assembly.
2. Thread the cable assembly around the four sets of three cable pulleys and
route the cable around the cylinder pulley.
3. Thread the cable assembly loosely around the pulley and refit the pulley to
the pulley block and secure with the retaining pin.
4. Clamp the cable end to the chase rail assembly with the cable retainer
bracket and secure with two M4 pan head screws. Refit the cylinder cover.
5. Clip the cable retainers over the topmost pulleys. Fit the flap cover brackets
over the flap assemblies and secure with M3 screws.
6. Using M3 pan head retaining screws refit the stencil guide strips to the chase
rail assembly.
7. Position the stencil support plate on the base of the chase rail assembly and
secure with nine M3 countersunk screws.
8. To refit the chase rail assembly to the machine (see Chase Rail Assembly -
Fitment procedure earlier in this section.
Cable End
View on Underside of Chase Rail Assembly
Cable Retainer
Pulley
(in three positions)
ADJUSTABLE SCREEN MOUNT (ASM)
CALIBRATIONS
12.20 Technical Reference Manual Chapter Issue 7 Oct 06
CALIBRATIONS
Chase to Table
Level
NOTE
This procedure requires the use of a DEK Test Plate, DEK part number 113693.
If a DEK Test Plate is required, contact DEK Customer Support before com-
mencing.
The chase to table level is checked by measuring down to 5 points on the rising
table surface from the DEK Test Plate which simulates a screen fitted in the
chase.
A datum reading is taken from the centre hole E, the range of readings must not
exceed 0.15mm of the datum.

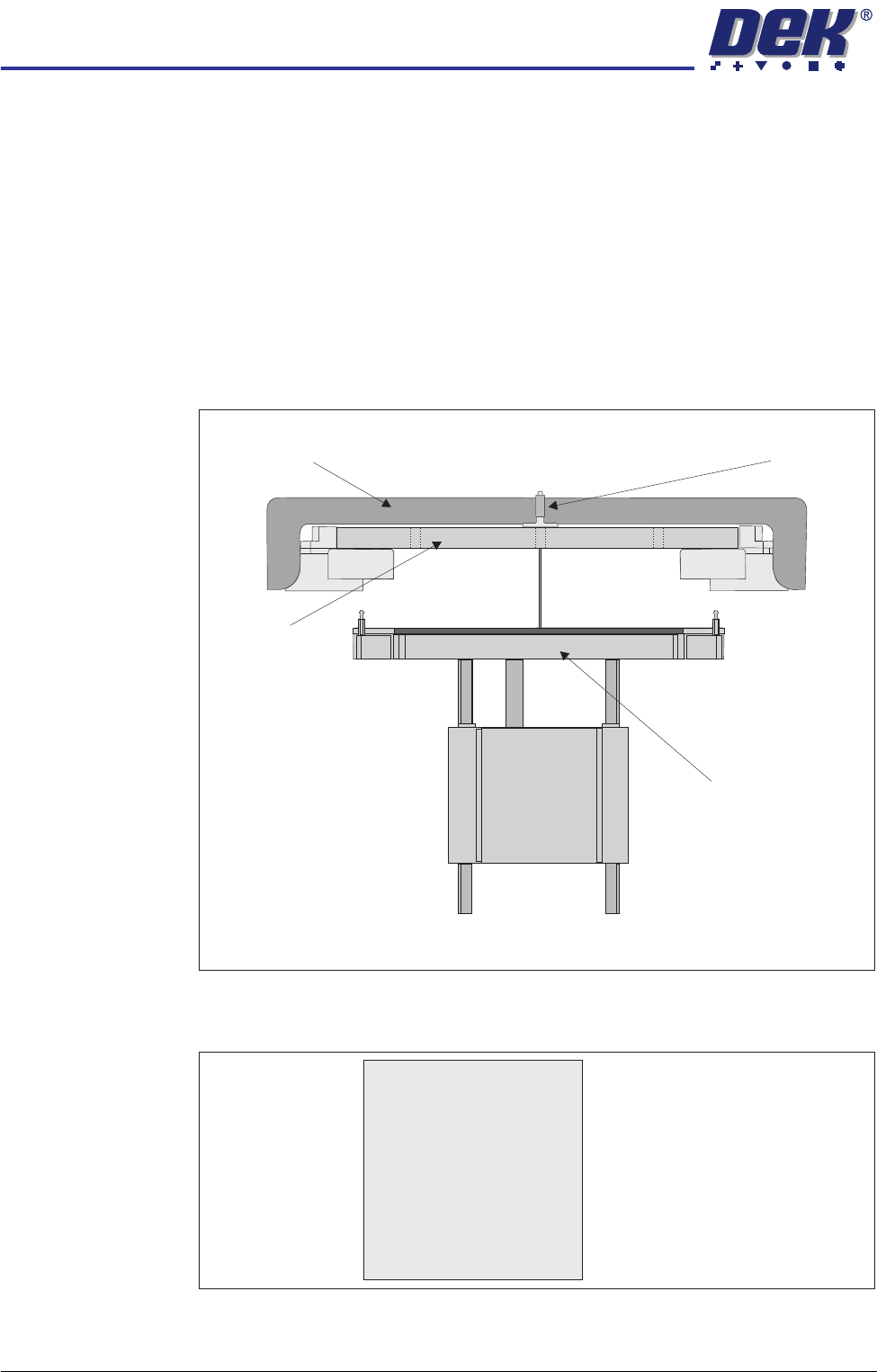

Figure 12-4 Chase to Table Level Setting
Figure 12-5 Test Plate Recordings
Depth Micrometer
Test Plate
Adjustable Screen Mount
Rising Table
View on Front of Machine
A
B
CD
E
A .....................mm
B .....................mm
C .....................mm
D .....................mm
E .....................mm
ADJUSTABLE SCREEN MOUNT (ASM)
CALIBRATIONS
Chapter Issue 7 Oct 06 Technical Reference Manual 12.21
Chase to Table
Level Adjustment
If adjustment is required, the bearing roller at the appropriate corner may be
adjusted to obtain the correct depth range.
NOTE
Be careful that this does not result in one corner of the chase ‘floating’, ie load
not being spread evenly over the four support rollers.
1. Using an appropriate sized C spanner, slacken the locking nut.
2. Using a slim 24mm spanner, raise or lower the roller bearing assembly
within the printhead assembly to achieve the required chase to table level
setting.
3. Tighten the locking nut.
4. Recheck the chase to table level setting.

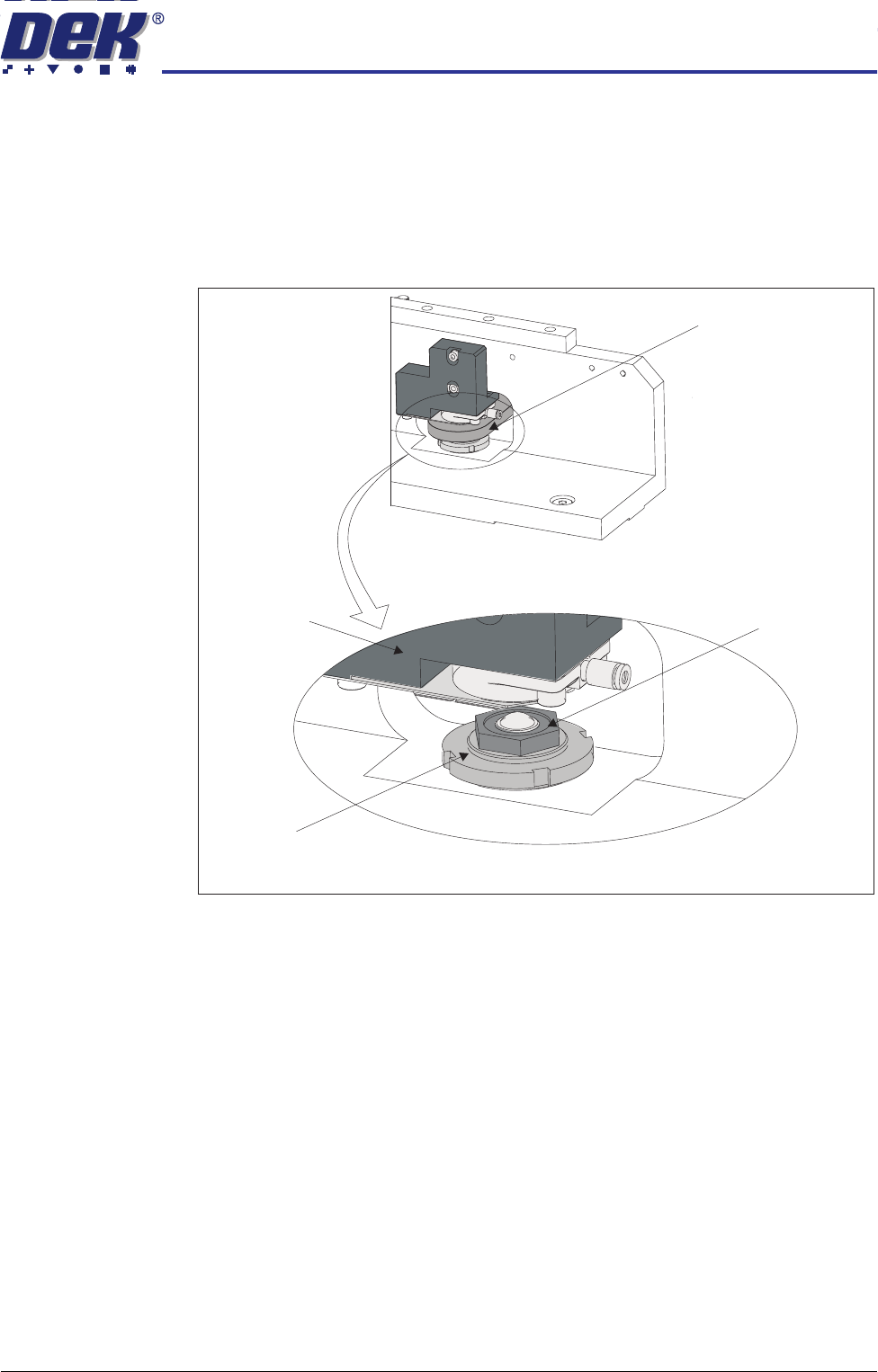

View on Roller Bearing Assembly (counter plate removed for clarity)
Locking Nut
Roller Counter Plate
Chase Clamp
Roller Bearing Assembly
View on Front Left or Rear Right Printhead
