Installation Manual, Station Software Version 703.02 SP1 07/2010 Edition

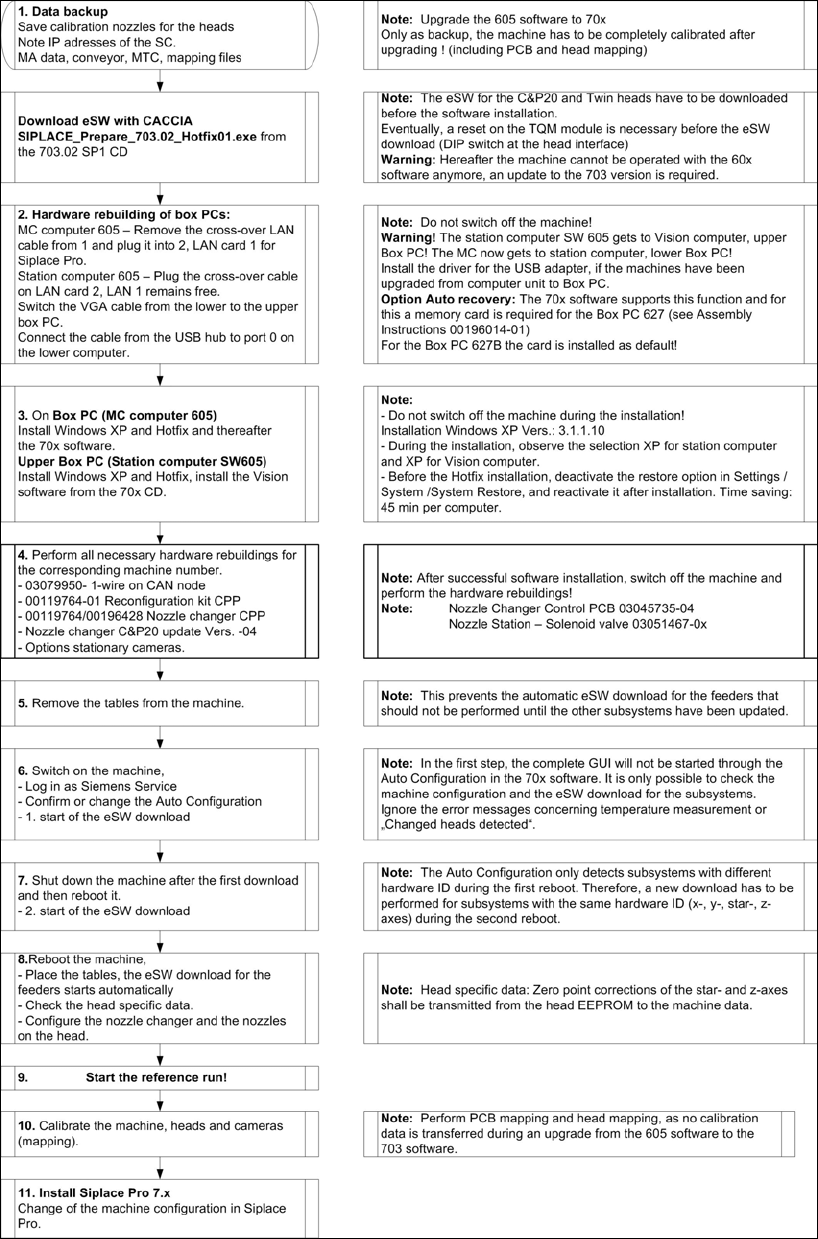

Flowchart: Upgrading from 60x software versions
11 of 58
Installation Manual, Station Software Version 703.02 SP1 07/2010 Edition
4 Requirements
4.1 SIPLACE X- and SX-series software components
4.1.1 Station
The station uses the following operating system configuration:
- Machine computer: Microsoft Windows XP Professional (incl. Service Pack 3 and most recent hotfixes)
- Vision computer: Microsoft Windows XP Professional (incl. Service Pack 3 and most recent hotfixes)
The machine computer and Vision computer software can optionally be used in one-computer or two-
computer operation.
4.1.2 Machine components
The following versions of other machine components are required for the station software to function
correctly:
SIPLACE station software SIPLACE Vision SIPLACE Pro
Version 703.02 SP1 Version 412 Version 7.1
Caution:
The functional statuses of the station computer, Vision computer and SIPLACE Pro software
must be compatible, as specified above. Another configuration is not supported.
12 of 58
Installation Manual, Station Software Version 703.02 SP1 07/2010 Edition
13 of 58
4.1.3 Embedded software
Machine type
Subsystem BIOS / Application File name
X4I X4 X3 X2 SX1/
SX2
BIOS AXIALL_0040033F.BHX X X X X
Application 1 AXIALL_00410326.BHX X X X X
Gantry axes
A364
Application 2 / X, Y AXIALL_00420681.BHX X X X X
BIOS
AXIALL_0070000C.BHX
AXIALL_0080000C.BHX
X
X
Application 1
AXIALL_0071007A.BHX
AXIALL_0081007A.BHX
X
X
Gantry axes
GCU, H-gantry
SX-series
Application 2
AXIALL_00720682.BHX
AXIALL_00820682.BHX
X
X
BIOS AXIALL_0040033F.BHX X X X
Application 1 AXIALL_00410326.BHX X X X
Z- and DP axis
Twin Head
Application 2 / Z, DP AXIALL_00420681.BHX X X X
BIOS AXIALL_0040033F.BHX X X X X
Application 1 AXIALL_00410326.BHX X X X X
Z- and star axis
C&P20A head
Application 2 / star, Z AXIALL_00420681.BHX X X X X
BIOS VHSAXD_00400104.HEX X X X X
DP axis
C&P20A head
Application 1 VHSAXD_00410307.HEX X X X X
BIOS AXIALL_0060000C.BHX X
Application 1 AXIALL_0061007A.BHX X
Z- and star axis
HCU
CPP head
Applikation 2 / star, Z AXIALL_00620681.BHX X
BIOS CPPAXD_00100124.BHX X X X X X
Application 1 CPPAXD_00110141.BHX X X X X X
DP axis
CPP head
Application 2 CPPAXD_00120116.BHX X X X X X
BIOS WPCAXI_0040033F.BHX X
Application 1 WPCAXI_00410305.BHX X
WPC5 feed axis
Application 2 WPCAXI_00420496.BHX X
BIOS WPCAXI_0040033F.BHX X
Application 1 WPCAXI_00410305.BHX X
WPC5 lift axis
Application 2 WPCAXI_00420496.BHX X
