Installation Manual, Station Software Version 703.02 SP1 07/2010 Edition
7 First booting after installation
When a machine is booted for the first time after installation, the station software detects which hardware
components are used via the Auto-configuration feature and configures itself accordingly. The operator is
prompted to confirm or reject the Auto-configuration on the GUI.
Fig. 7-1: Auto-configuration
→ Click the + sign in front of Auto-configuration to open the configuration list.
The used hardware components are displayed.
44 of 58
Installation Manual, Station Software Version 703.02 SP1 07/2010 Edition
Fig. 7-2: Used hardware components
The Machine service activity level is required to execute the Auto-configuration.
→ Click the
icon to call the user settings.
The user settings are displayed.
Fig. 7-3: Changing activity level
45 of 58
Installation Manual, Station Software Version 703.02 SP1 07/2010 Edition
→ Click the Machine service button and enter the password to change into this activity level.
The following window is displayed for the X-series machines. Here you can edit, confirm or reject the Auto-
configuration.

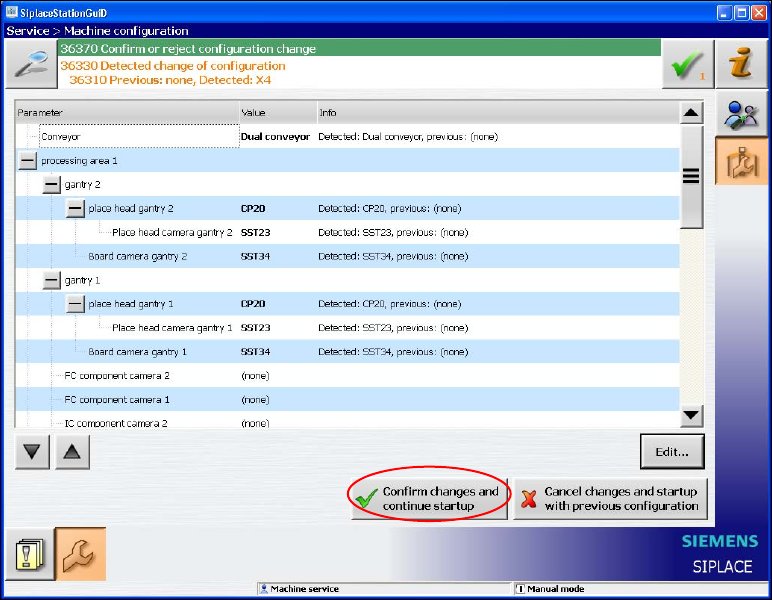

Fig. 7-4: Confirming Auto-configuration for X-series
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
46 of 58
