SIPLACE SWS Software 2.1 /
Versionsbeschreibung / Version Description Ausgabe Fehler! Unbekannter Name für Dokument-
Eigens
24
11.2 User Classification – New Operator Levels
The operator levels have been changed in the SWS control software 2.0. There are 4 different
operator levels:
– Production
– Advanced production
– Service (customer)
– Service (SIPLACE)
PLEASE NOTE
For details about the user classification and about changing the operator levels, refer to
the "SIPLACE SWS Software 2.1 Software Manual [Item no.: 00195986-01].
SIPLACE SWS Software 2.1 /
Versionsbeschreibung / Version Description Ausgabe Fehler! Unbekannter Name für Dokument-
Eigens
25
12 SWS Software 2.0 Features
The SWS software 2.0 includes all the functions of the SWS software 1. 2. The key new features of
the SWS software 2.0 are listed below.
12.1 LAN Connection to Station Software 707
In addition to the connection via CAN with the station software 605 SP5, the SWS software
supports a connection to machines via LAN with station software 707.
12.2 Managing 2 Different Transfer Positions
In combination with the station software 707 and the SWS software 2.0, 2 different transfer
positions are managed for operation with 2 nozzles. This enables you to set the transfer position
per nozzle.
12.3 Operation with 2 Nozzles
The SWS software supports operation with 2 nozzles.
12.4 Frame-Offset Compensation for Start Dies
The SWS software supports the frame-offset compensation during teaching for start dies or
reference points with static starting position.
12.5 Wafer Edge Recognition for Square Wafers
The SWS software supports wafer edge recognition of square wafers and ellipses.
SIPLACE SWS Software 2.1 /
Versionsbeschreibung / Version Description Ausgabe Fehler! Unbekannter Name für Dokument-
Eigens
26
12.6 Mapped Wafer - Reference Points

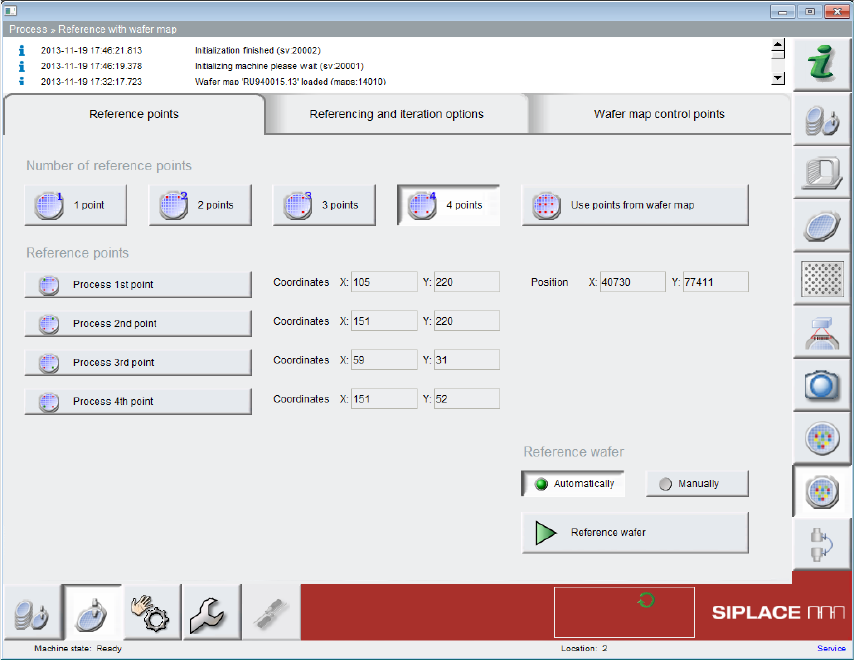

12.6.1 Teaching 4 Reference Points
The SWS software supports teaching of four reference points instead of three reference points, as
in previous versions.
12.6.2 Applying Reference Points from the Wafer Map
The SWS software supports the application of reference points from the wafer map.
