15 Restrictions
15.1 GUI Does Not React
Sometimes, the GUI may cease to react when used. This occurs sporadically when switching
windows on which camera images are shown.
Solution:
Press the ESC button to refresh the window.
SIPLACE SWS Software 2.1 /
Versionsbeschreibung / Version Description Ausgabe Fehler! Unbekannter Name für Dokument-
Eigens
33
15.2 When Deleting a Magazine Type, No Check Whether
Magazine is still Assigned to Products.
When a magazine type is deleted, no check is performed to see whether the magazine type was
still assigned to products. If products are loaded at a later time, although their magazines no longer
exist, you will be unable to initialize the SWS. You will be unable to load any other products or
assign a valid magazine type to the current product.
Solution:
Terminal open (ctrl + alt + x) and log in as launch
Edit file /asm/wf/config/process/machine.dat:
kwrite /asm/wf/config/process/machine.dat

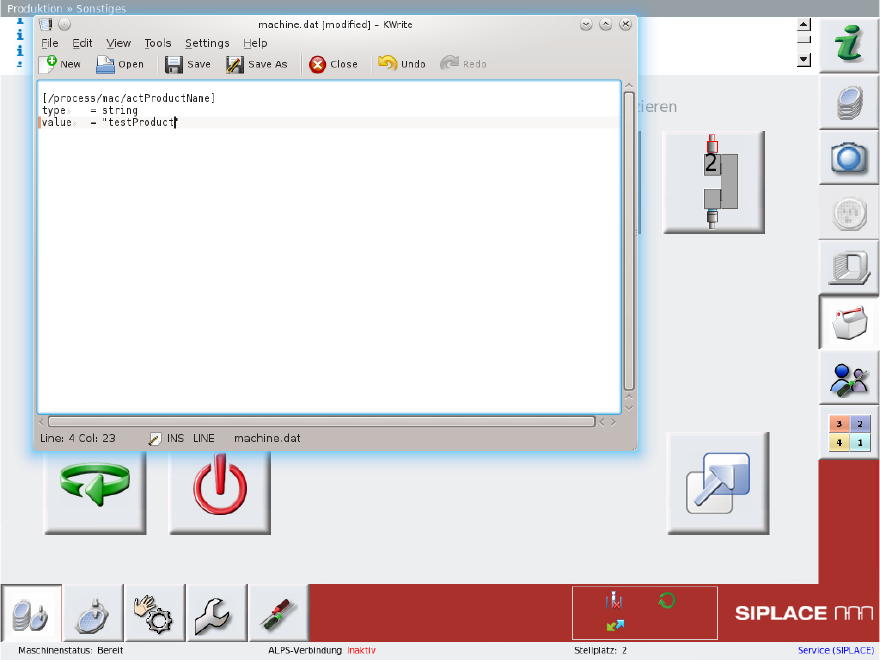

The following window will be shown:
Enter the name of a valid product as the value [/process/mac/actProductName]. (e.g. value
= "testProduct").
Saver the file and close kwrite.
Terminate the SWS software:
killall machine gui gembox
Restart the SWS software
ctrl + alt + q
