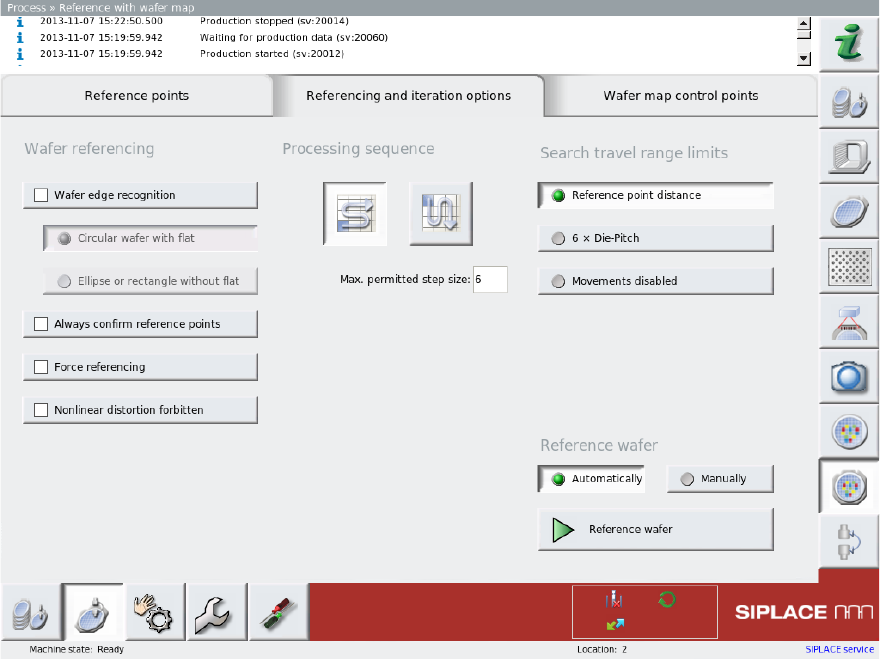

12.7 Mapped Wafer – Referencing and Iteration Options
12.7.1 Limiting the ROI for Wafer Referencing
If the reference point is not found at the theoretical position, a search will be triggered around the
theoretical position, during which the wafer table travels in a spiral pattern.
12.7.2 Forcing Referencing After Wafer Change
The Force referencing options ensures that the wafer is re-referenced at each wafer change. This
compensates any imprecision during wafer clamping.
12.7.3 Prohibiting Nonlinear Distortion
The Nonlinear distortion forbidden options checks the SWS software to see whether the pitch or
distortion between the individual reference points differs enough for there to be a different amount
of dies present in the rows and columns. If this option is enabled, referencing will be aborted in this
case.
SIPLACE SWS Software 2.1 /
Versionsbeschreibung / Version Description Ausgabe Fehler! Unbekannter Name für Dokument-
Eigens
28
12.8 Plain Wafer

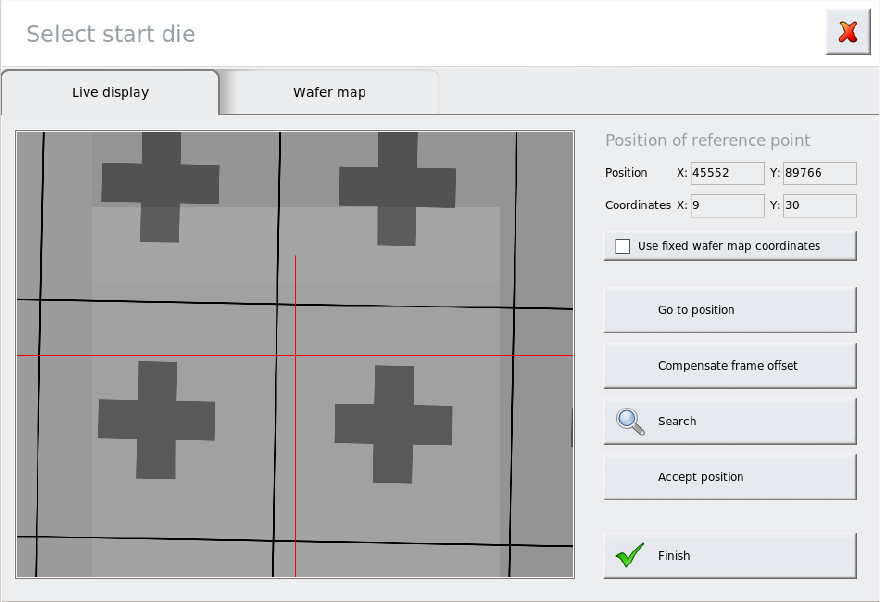

12.8.1 Using Fixed Wafer Map Coordinates
This option forces a link of the start die position and the wafer map coordinates.
Background:
Without this option (default), the wafer map die coordinates are calculated from the theoretical
center point once the start dies have been defined in manual or automatic wafer referencing. If the
wafer was fitted badly in the wafer frame and it is not possible to perform wafer edge recognition
(e.g. for synthetic wafers with very wide dicing streets) too many dies will be taken off the wafer or
large areas of the wafer will be approached in which no dies are found.
This is prevented with the Use fixed wafer map coordinates option.
SIPLACE SWS Software 2.1 /
Versionsbeschreibung / Version Description Ausgabe Fehler! Unbekannter Name für Dokument-
Eigens
29
13 SWS Software 2.1 Features
The SWS software 2.1 includes all functions from the SWS software 2.0. The following section
describes the main new features in version 2.1 of the SWS software.
NOTE
For details about the individual functions, please refer to the software manual for
the "SIPLACE SWS Software 2.1 [item no.: 00195986-02].

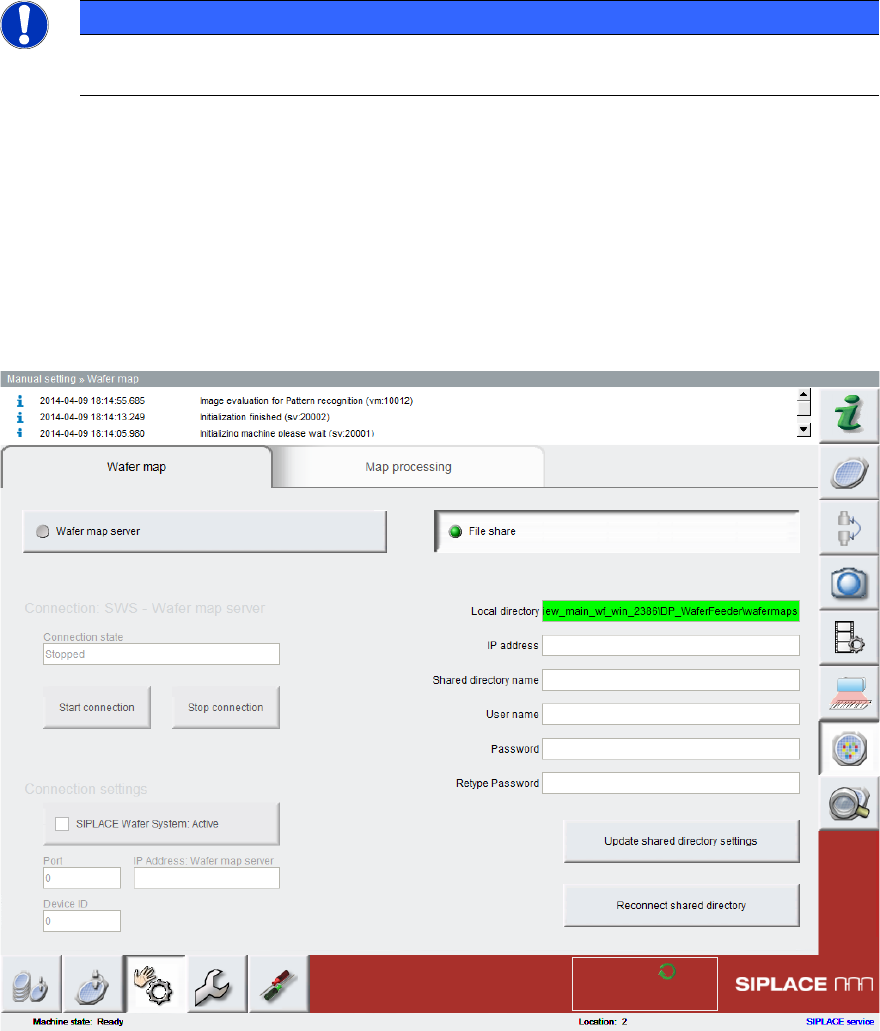

13.1.1 Revised Interface to Wafer Map Server
The menu navigation at Manual setting => Wafer-Map has been simplified. The settings and
monitoring options have been revised.
The option Connection settings => SIPLACE Wafer System has been extended. The software
now also supports passive connections to the wafer map server.
