Installation Manual SIPLACE EDM Version 1.1 SP2 Issue 12/2006
Figure 5 Target directory for installation
Since SIPLACE EDM comprises several applications whose installation depends on the role of the
workstation, you must select the type of installation you want to perform:
Figure 6 Type of EDM installation
The following are available for selection:
• Clearing Pool. Installs a clearing pool GUI and the EDM Tool. Use this option when you want to
allow a data preparation engineer access to the clearing pool database from his workstation.
• EDM Control Tool. Only installs the EDM Control tool.
• EDM Line (line server). Installs an EDM line server including the EDM client. Use this option
when you want to insert a local SIPLACE Pro installation into a line in your EDM system.
• EDM Master (master server). Installs an EDM master server, the clearing pool database and the
EDM tool. Use this option to install EDM on your central SIPLACE Pro server. There should only
be one master server per EDM system.
• EDM Master with Clearing Pool. Installs one EDM master server, one clearing pool database and
a clearing pool GUI to access the clearing pool database.
17 of 65
Installation Manual, SIPLACE EDM Version 1.1 SP2 Issue 12/2006
4.3.1 Clearing Pool
You only need to know which clearing pool database is to be accessed to install the clearing pool
GUI. Confirm the selection with the “Next” button. The SIPLACE EDM installation checks if it can
connect to the specified server and if there is a clearing pool database present there.
Figure 7 Selecting the clearing pool database
4.3.2 EDM Control Tool
You can edit the SIPLACE Pro data by any remote client which is connected to the line server.
To display the change notifications and comment dialogs on the remote client, you must first install
the EDM Control Tool on this remote client.
Select EDM Control Tool from the setup type dialog. The program is installed automatically.
18 of 65
Installation Manual SIPLACE EDM Version 1.1 SP2 Issue 12/2006
4.3.3 EDM Line (line server)
To install a line server the master server must be known.
Confirm the selection with the “Next” button.

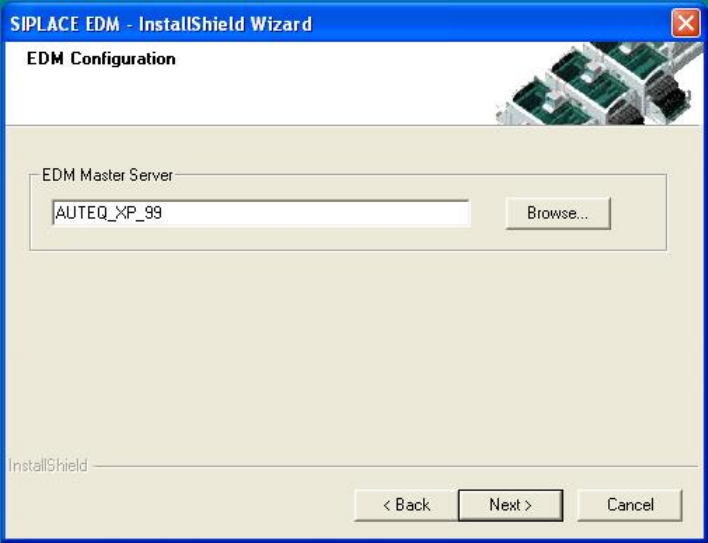

Figure 8 Selecting the master server
19 of 65
