Installation Manual SIPLACE EDM Version 1.1 SP2 Issue 12/2006
Figure 23 Configuration of the notification filter
The filter configuration comprises a set of rules (see Figure 23 Configuration of the notification filter).
This means that as soon as at least one of the defined conditions applies to the incoming
notification, the notification is rejected (no comment dialog box is opened and the notification is not
transferred to the master server).
59 of 65
Installation Manual, SIPLACE EDM Version 1.1 SP2 Issue 12/2006

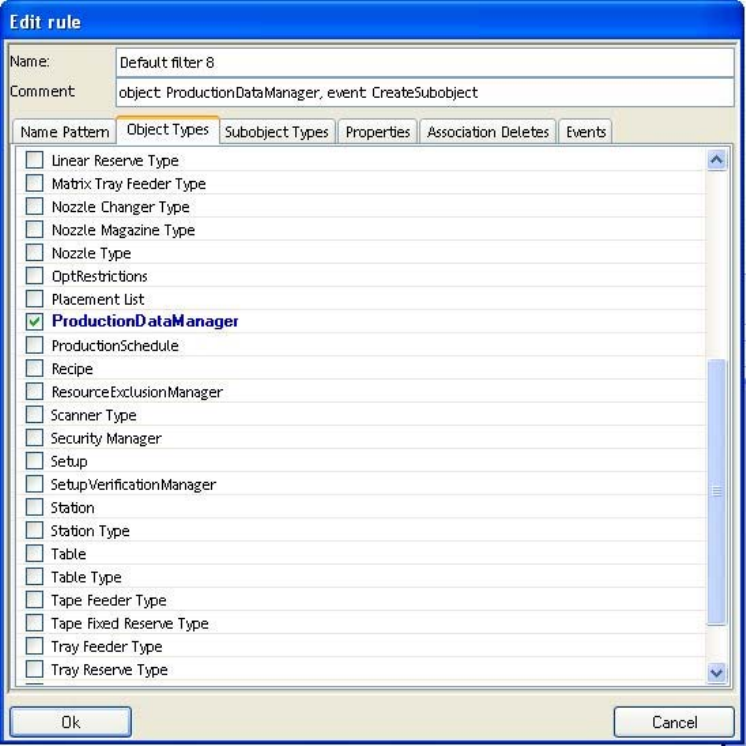

Figure 24 Configuration of a single rule
Every condition checks a subset of the properties of the notification. This set is ANDed, i.e. only
when all the properties checked by the condition have the values specified in the condition is the
notification rejected by this condition.
The following properties can be assessed by a condition:
• Name (regular expression)
• Object type
• Subobject type
• Property of object or subobject
• Deletion of subobjects of a particular object (association delete)
• Type of notification
There is a separate tab for each of these properties. If no value is selected in any of the tabs, this
property is not checked. If one or more values are selected, the value of the property in the
notification must match one of the values for the notification to be filtered.
60 of 65
Installation Manual SIPLACE EDM Version 1.1 SP2 Issue 12/2006
5.6 Handling incoming change notifications
5.6.1 Saving the changed objects in the clearing pool
This is the default handling method for incoming change notifications. It is used for changes to all
objects which
• were not imported into the master database as described in
5.4.3.
• were not rejected automatically as described in 5.4.4.
• have conflicting settings as described in 5.4.3 and 5.4.4.
A notification is sent for all handling options as per the email configuration settings.
5.6.2 Direct import of changed objects to the master database
For configuration see 5.4.3.
5.6.3 Automatic rejection of the changes
For configuration see 5.4.4.
61 of 65
