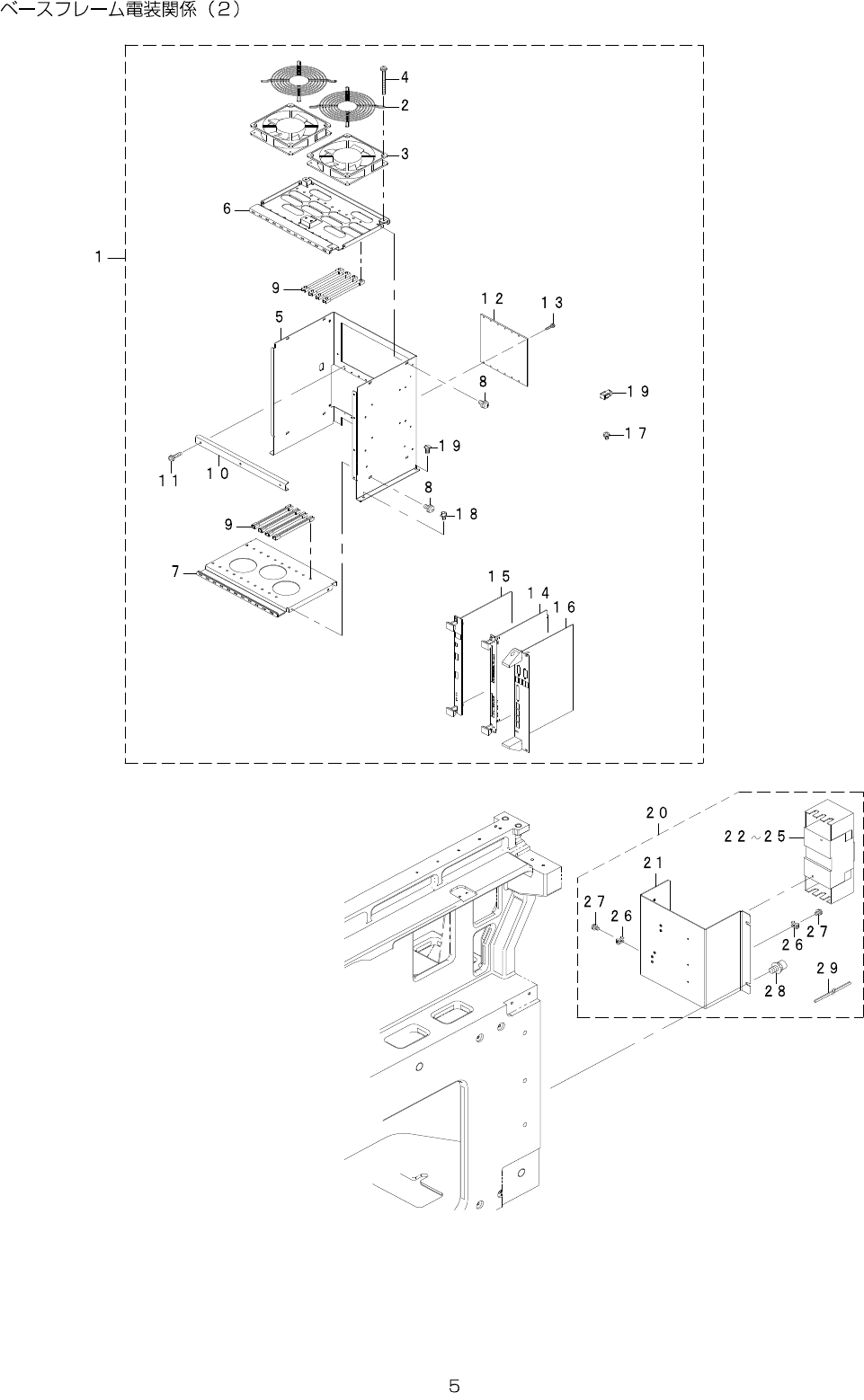

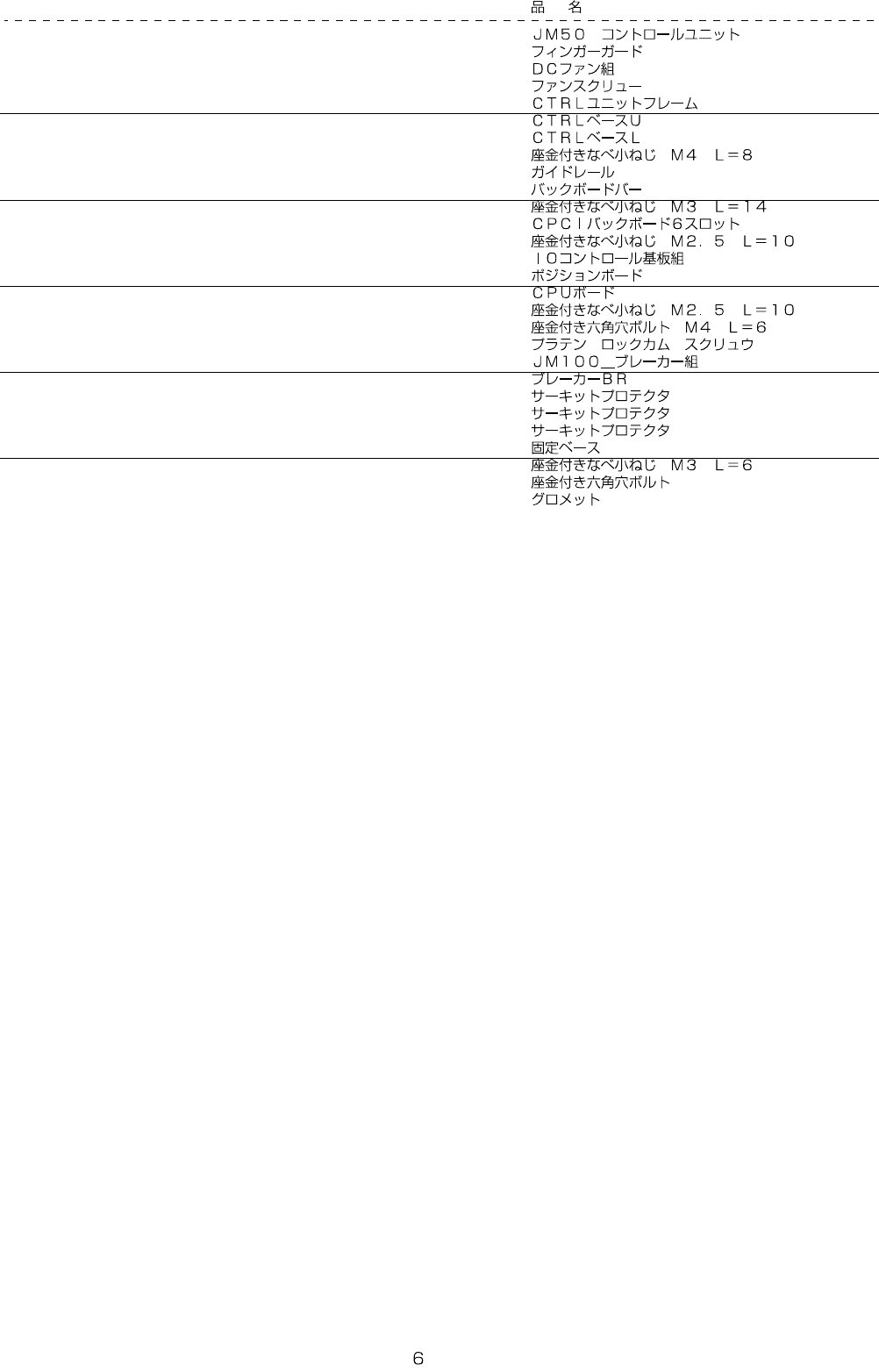

3. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(2)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-56186 ASM_JM50_CTRL_UNIT 1

2 HM-0003300-30 FANMOTOR (1)

3 401-89090 DCFANASM (1)

4 401-77318 FAN_SCREW (2)

5 401-47546 CTRL_UNIT_FRAME (1)

6 401-47544 CTRL_BASE_U (1)

7 401-47545 CTRL_BASE_L (1)

8 SL-4040891-SC SCREWM4X8 (8)

9 HX-0002600-00 GUIDERAIL (10)

10 400-47087 BACK_BOAD_BAR (1)

11 SL-4031491-SC SCREWM3L=14 (3)

12 401-72512 CPCIBACKBOARD6SLOT (1)

13 SL-4851091-SC SCREWM2.5L=10 (16)

14 401-28871 IOCONTROLPCBASM (1)

15 401-96265 POSITIONBOARD (1)

16 402-05765 CPUBOARD (1)

17 SL-4851091-SC SCREWM2.5L=10 (16)

18 SL-6040692-TN SCREWM4L=6 (2)

19 E1038-871-000 PLATENLOCKCAMSCREW (2)

20 402-06700 ASM_JM100_BREAKER_UNIT 1

21 402-06497 BREAKER_BR (1)

22 HA-0065200-1A CIRCUITPROTECTOR (1)

23 HA-0070300-00 CIRCUITPROTECTOR (1)

24 HA-0065400-0A CIRCUITPROTECTOR (1)

25 HX-0029400-00 FIXEDBASE (5)

26 SL-4030691-SC SCREWM3L=6 (5)

27 SL-6061292-TN SCREW (2)

28 HX-0067100-0A GROMMET (0.08)

- -

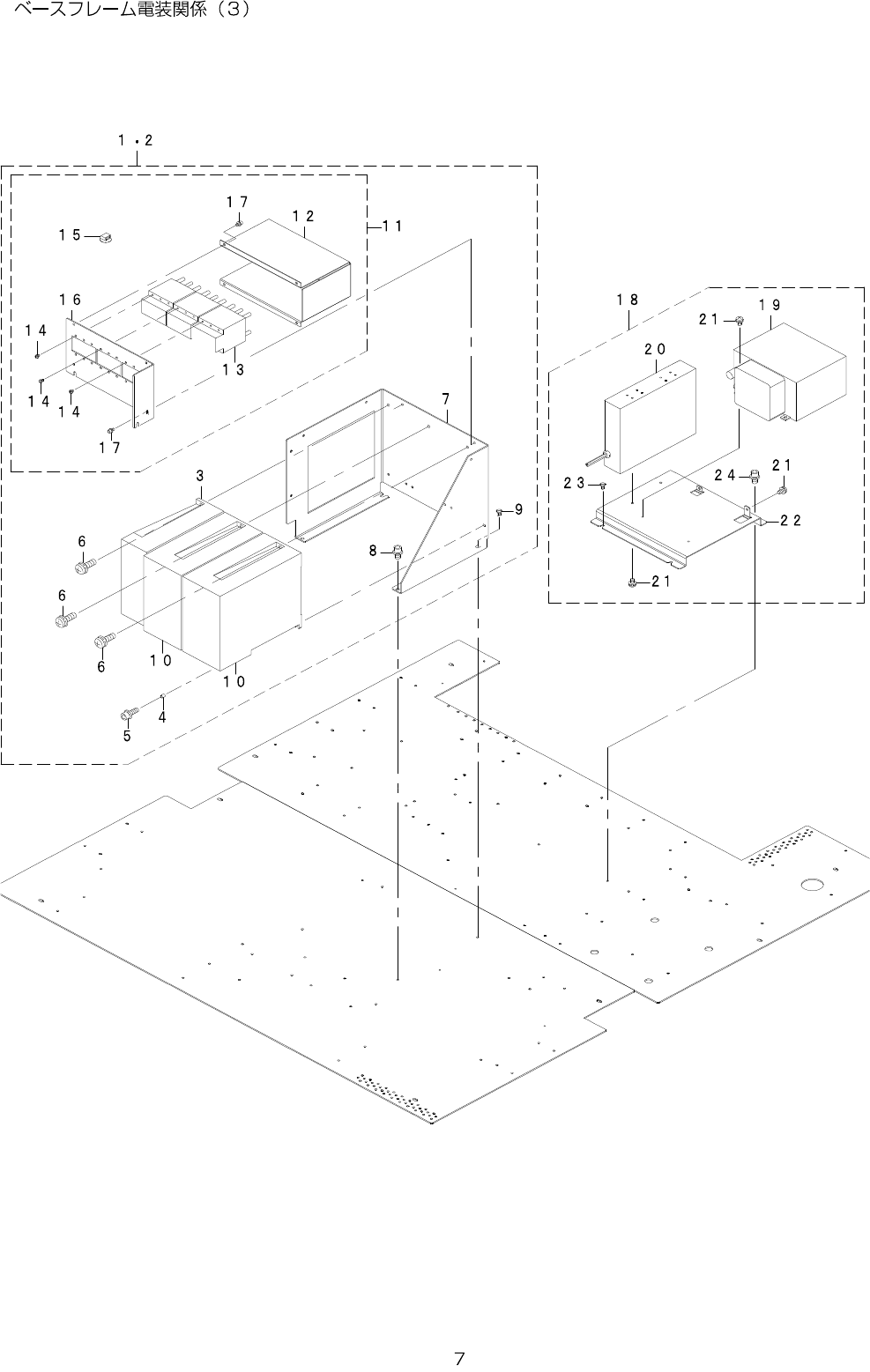

4. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(3)
