REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-14193 3DS_ELEC_DEVICE_ASM 1
2 402-14194 3DS_CPUBOARD_BOX_ASM (1)
3 402-05765 CPUBOARD (1)
4 HX-0002600-00 GUIDERAIL (2)
5 400-97423 CPCIBACKBOARD (1)
6 SL-4851091-SC SCREWM2.5L=10 (4)
7 401-33048 FANMOTORASM (1)
8 400-93510 Y_FAN_GUARD_C (1)
9 SL-4042591-SC SCREWM4L=25 (4)
10 402-14195 3D_VCS_PCB_BOX (1)
11 401-32928 COPLA_PCB_COVER (1)
12 SL-6030692-TN SCREWM3L=6 (4)
13 402-14196 3D_VCS_BOX_ASM_BR (1)
14 HX-0035400-00 SPACER (2)
15 SL-4030681-SC SCREWM3L=6 (4)
16 E1038-871-000 PLATENLOCKCAMSCREW (1)
17 SL-4040891-SC SCREWM4X8 (1)
18 402-14197 3DS_PSU_ASM (1)
19 HX-0070500-00 POWERSUPPLY
(1)
20 SL-4030691-SC SCREWM3L=6 (4)
21 HA-0052700-0E CIRCUITPROTECTOR (1)
22 SL-4030691-SC SCREWM3L=6 (2)
23 HX-0067100-0A GROMMET (0.1)
24 HX-0070600-0A MOUNTBASE (2)
25 401-32932 COPLA_POWER_BRACKET (1)
26 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (1)
27 SL-6040892-TN SCREWM4L=8 (2)
28 401-32931 COPLA_POWER_COVER (1)
29 SL-4040691-SC SCREWM4L=6 (2)
30 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (1)
31 402-14199 3D_VCS_POWER_STAY (1)
32 E1038-871-000 PLATENLOCKCAMSCREW (1)
33 SL-6040692-TN SCREWM4L=6 (2)
34 402-15941 3D_SCREEN_PLATE 1
- -

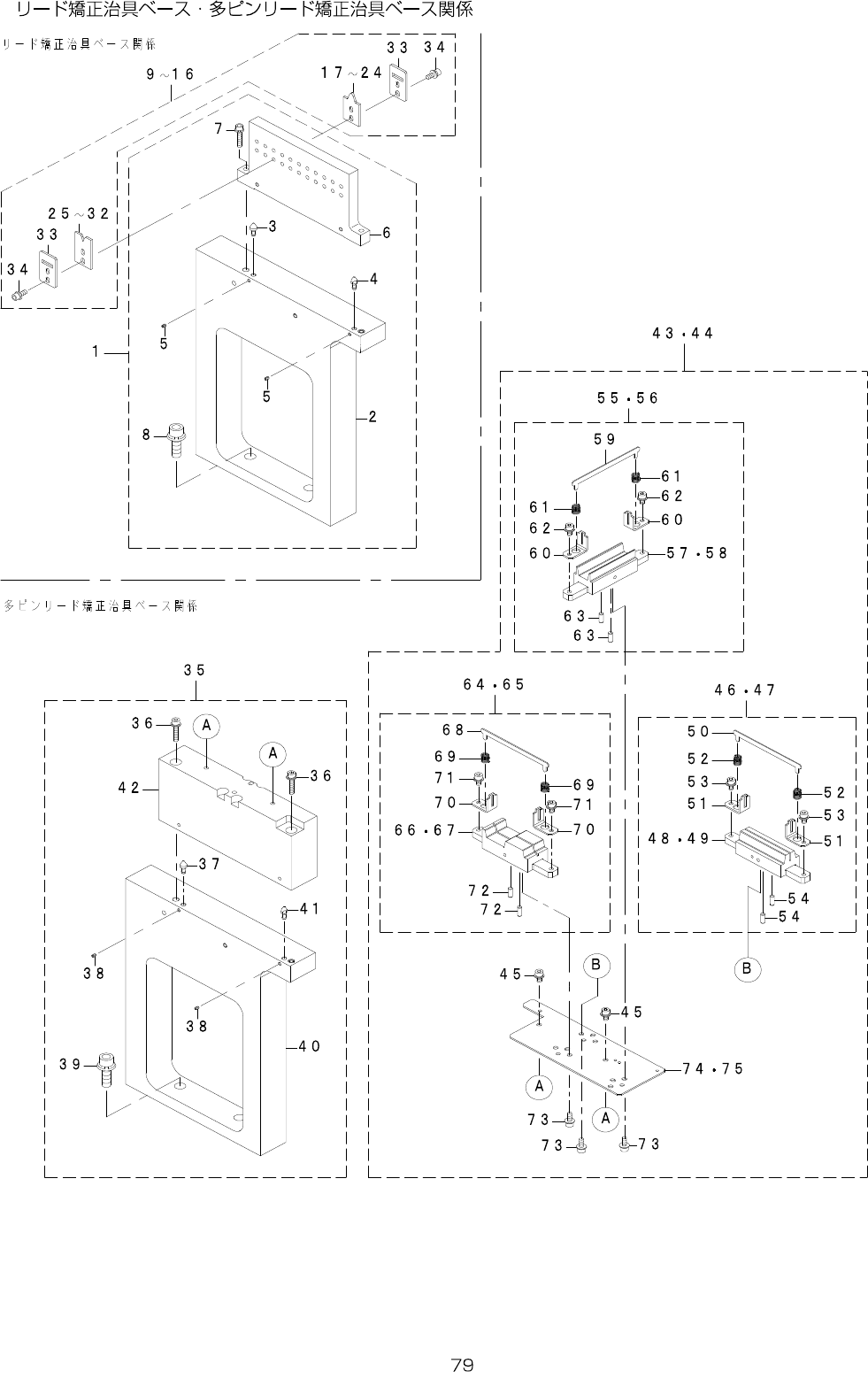

40.LEADCORRECTJIGBASE&MOSTLEADCORJIGBASEASMCOMPONENTS
- -

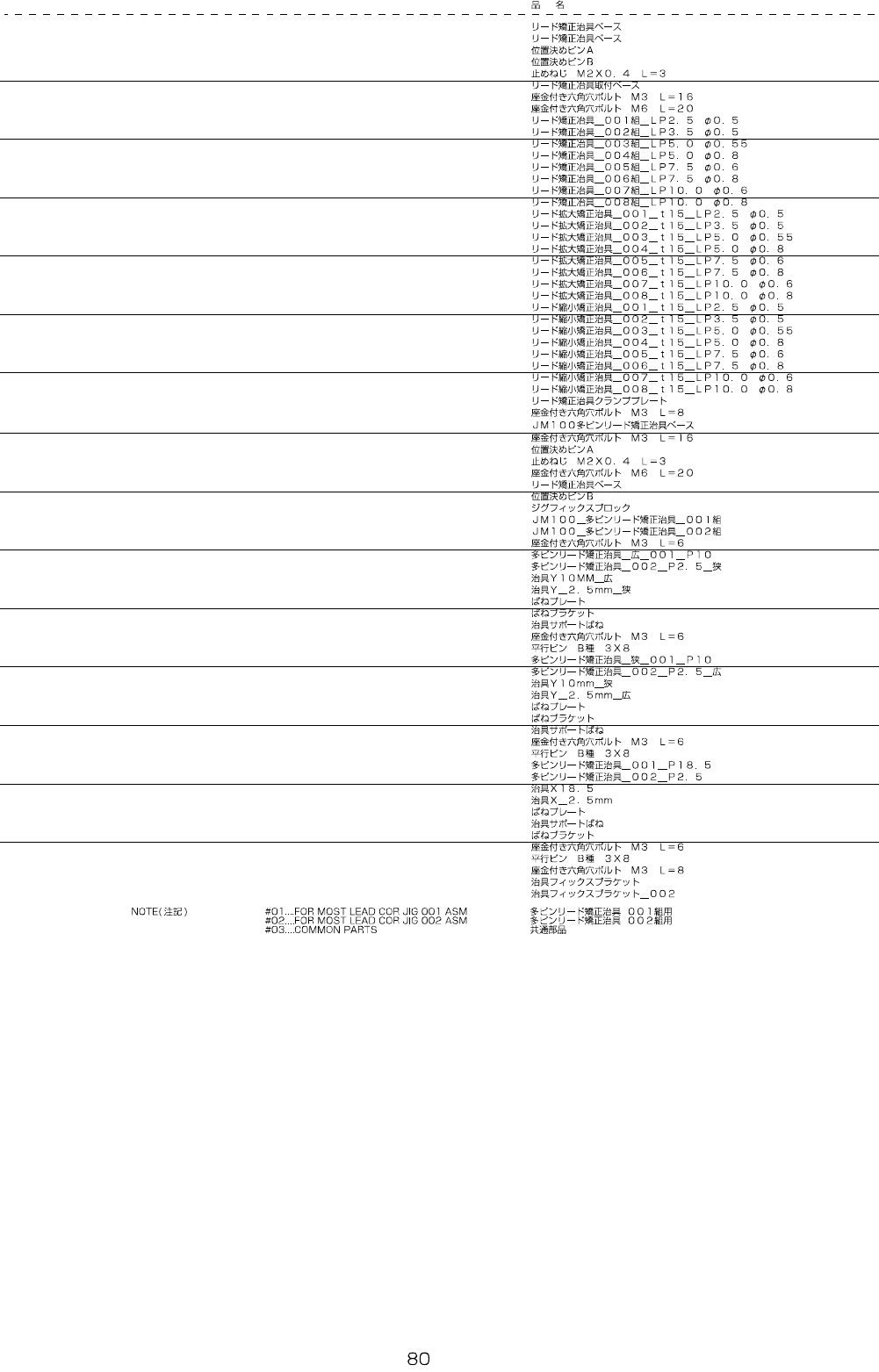

REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-13413 LEAD_CORRECT_JIG_BASE_ASM 1
2 401-65096 LEAD_CORRECT_JIG_FIX_BASE (1)
3 401-56188 LOCATE_PIN_A (1)
4 401-56189 LOCATE_PIN_B (1)
5 SM-8020302-TP SCREWM2X0.4L=3 (2)
6 401-65098 LEAD_CORRECT_JIG_ATTACH_BLOCK (1)
7 SL-6031692-TN SCREWM3L=16 (2)
8 SL-6062092-TN SCREWM6L=20 (2)
9 401-76201 LEAD_CORRECT_JIG_001_ASSY 1
10 401-76202 LEAD_CORRECT_JIG_002_ASSY 1
11 401-76203 LEAD_CORRECT_JIG_003_ASSY 1
12 401-76204 LEAD_CORRECT_JIG_004_ASSY 1
13 401-76205 LEAD_CORRECT_JIG_005_ASSY 1
14 401-76206 LEAD_CORRECT_JIG_006_ASSY 1
15 401-76207 LEAD_CORRECT_JIG_007_ASSY 1
16 401-76208 LEAD_CORRECT_JIG_008_ASSY 1
17 401-76209 EXTEND_LEAD_CORRECT_JIG_001_T15 (1)
18 401-76211 EXTEND_LEAD_CORRECT_JIG_002_T15 (1)
19 401-76213 EXTEND_LEAD_CORRECT_JIG_003_T15 (1)
20 401-76215 EXTEND_LEAD_CORRECT_JIG_004_T15 (1)
21 401-76217 EXTEND_LEAD_CORRECT_JIG_005_T15 (1)
22 401-76219 EXTEND_LEAD_CORRECT_JIG_006_T15 (1)
23 401-76221 EXTEND_LEAD_CORRECT_JIG_007_T15 (1)
24 401-76223 EXTEND_LEAD_CORRECT_JIG_008_T15 (1)
25 401-76210 SHRINK_LEAD_CORRECT_JIG_001_T15 (1)
26 401-76212 SHRINK_LEAD_CORRECT_JIG_002_T15 (1)
27 401-76214 SHRINK_LEAD_CORRECT_JIG_003_T15 (1)
28 401-76216 SHRINK_LEAD_CORRECT_JIG_004_T15 (1)
29 401-76218 SHRINK_LEAD_CORRECT_JIG_005_T15 (1)
30 401-76220 SHRINK_LEAD_CORRECT_JIG_006_T15 (1)
31 401-76222 SHRINK_LEAD_CORRECT_JIG_007_T15 (1)
32 401-76224 SHRINK_LEAD_CORRECT_JIG_008_T15 (1)
33 401-65107 LEAD_CORRECT_JIG_CLAMP_PLATE (2)
34 SL-6030892-TN SCREWM3L=8 (4)
35 402-55025 JM100_LEAD_COR_JIG_BASE_ASM
1
36 SL-6031692-TN SCREWM3L=16 (2)
37 401-56188 LOCATE_PIN_A (1)
38 SM-8020302-TP SCREWM2X0.4L=3 (2)
39 SL-6062092-TN SCREWM6L=20 (2)
40 401-65096 LEAD_CORRECT_JIG_FIX_BASE (1)
41 401-56189 LOCATE_PIN_B (1)
42 402-54978 JIG_FIX_BLOCK (1)
43
#01
402-55026 JM100_MOST_LEAD_COR_JIG_001_ASM 1
44
#02
402-55027 JM100_MOST_LEAD_COR_JIG_002_ASM 1
45 SL-6030692-TN SCREWM3L=6 (2)
46
#01
402-55062 MOST_LEAD_COR_JIG_WIDE_001_P10 (1)
47
#02
402-55066 MOST_LEAD_COR_JIG_NOR_002_P2.5 (1)
48
#01
402-54986 JIG_Y_10MM_WIDE (1)
49
#02
402-54985 JIG_Y_2.5MM_NARROW (1)
50
#03
402-54982 SPRING_PLATE (1)
51
#03
402-54980 SPRING_BRKT (2)
52
#03
402-54981 JIG_SUPPORT_SPRING (2)
53
#03
SL-6030692-TN SCREWM3L=6 (2)
54
#03
PH-0300082-C0 PARALLELPINTYPEB3X8 (2)
55
#01
402-55063 MOST_LEAD_COR_JIG_NAR_001_P10 (1)
56
#02
402-55065 MOST_LEAD_COR_JIG_WID_002_P2.5 (1)
57
#01
402-54987 JIG_Y_10MM_NARROW (1)
58
#02
402-54984 JIG_Y_2.5MM_WIDE (1)
59
#03
402-54982 SPRING_PLATE (1)
60
#03
402-54980 SPRING_BRKT (2)
61
#03
402-54981 JIG_SUPPORT_SPRING (2)
62
#03
SL-6030692-TN SCREWM3L=6 (2)
63
#03
PH-0300082-C0 PARALLELPINTYPEB3X8 (2)
64
#01
402-55064 MOST_LEAD_COR_JIG_001_P18.5 (1)
65
#02
402-55067 MOST_LEAD_COR_JIG_002_P2.5 (1)
66
#01
402-54988 JIG_X_18.5 (1)
67
#02
402-54983 JIG_X_2_5MM (1)
68
#03
402-54982 SPRING_PLATE (1)
69
#03
402-54981 JIG_SUPPORT_SPRING (2)
70
#03
402-54980 SPRING_BRKT (2)
71
#03
SL-6030692-TN SCREWM3L=6 (2)
72
#03
PH-0300082-C0 PARALLELPINTYPEB3X8 (2)
73
#03
SL-6030892-TN SCREWM3L=8 (6)
74
#01
402-54979 JIG_FIX_BRKT (1)
75
#02
402-55050 JIG_FIX_BRKT_002 (1)
