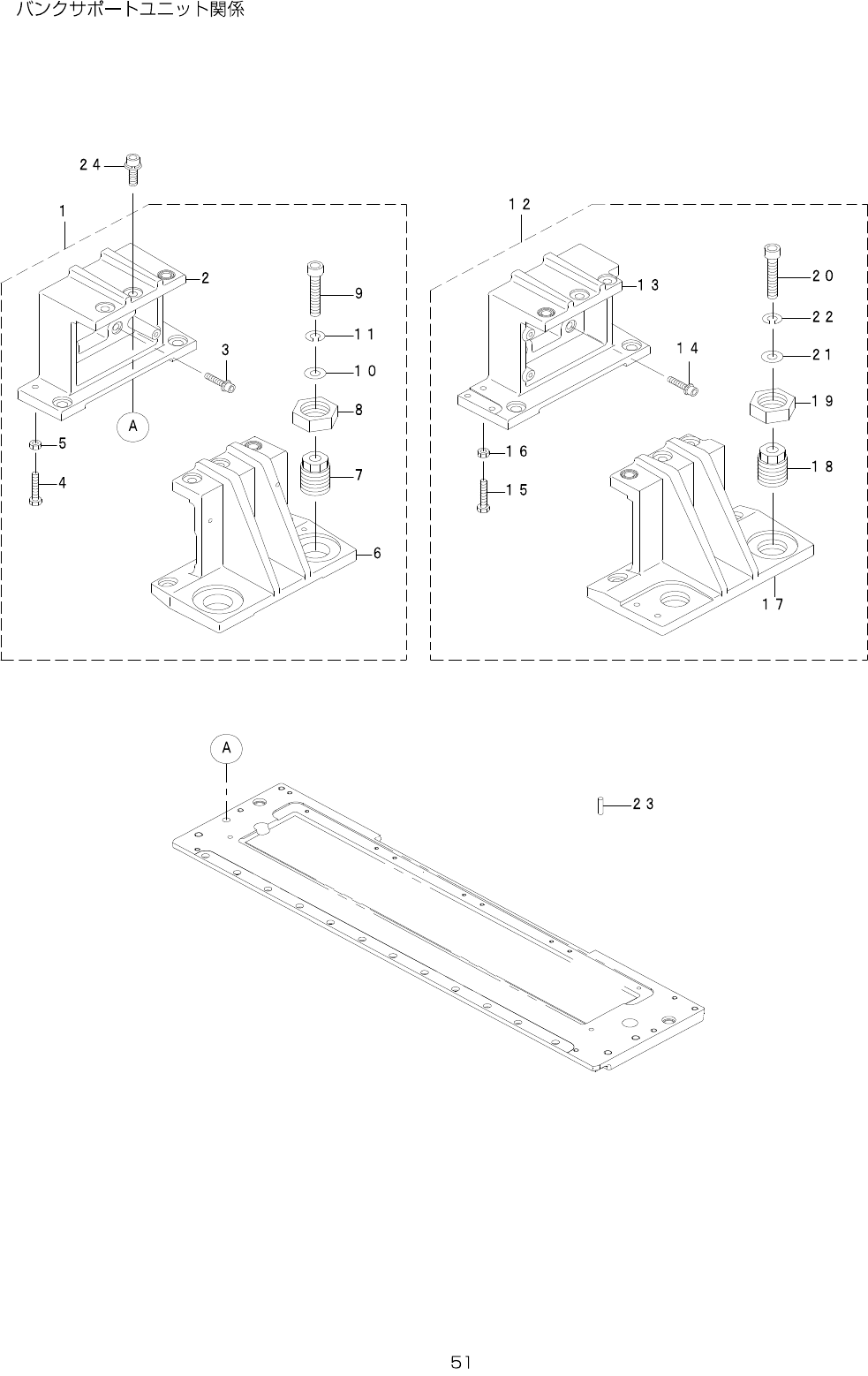

26.BANKSUPPORTUNITCOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-00573 BANKSUPPORTERFUNIT 1
2 400-00566 BANKSUPPORTERFLCOMB. (1)
3 SL-6063092-TN SCREWM6L=30 (4)
4 SM-9063503-SE SCREWM6L=35 (2)
5 NM-6060001-SC NUTM6X1TYPE1 (2)
6 400-00567 BANKSUPPORTERFRCOMB. (1)
7 400-00555 BANKLOCKBOLT (2)
8 400-00556 BANKLOCKNUT (2)
9 SM-6105502-TN SCREWM10L=55 (2)
10 WP-1052001-SC WASHER10 (2)
11 WS-1020002-KN SPRINGWASHERM10 (2)
12 400-00577 BANKSUPPORTERRUNIT 1
13 400-00568 BANKSUPPORTERRLCOMB. (1)
14 SL-6063092-TN SCREWM6L=30 (4)
15 SM-9063503-SE SCREWM6L=35 (2)
16 NM-6060001-SC NUTM6X1TYPE1 (2)
17 400-00569 BANKSUPPORTERRRCOMB. (1)
18 400-00555 BANKLOCKBOLT (2)
19 400-00556 BANKLOCKNUT (2)
20 SM-6105502-TN SCREWM10L=55 (2)
21 WP-1052001-SC WASHER10 (2)
22 WS-1020002-KN SPRINGWASHERM10 (2)
23 PS-0500202-KP SPRINGPINTYPEW5X20 2
24 SL-6082592-TN BOLT 4
- -

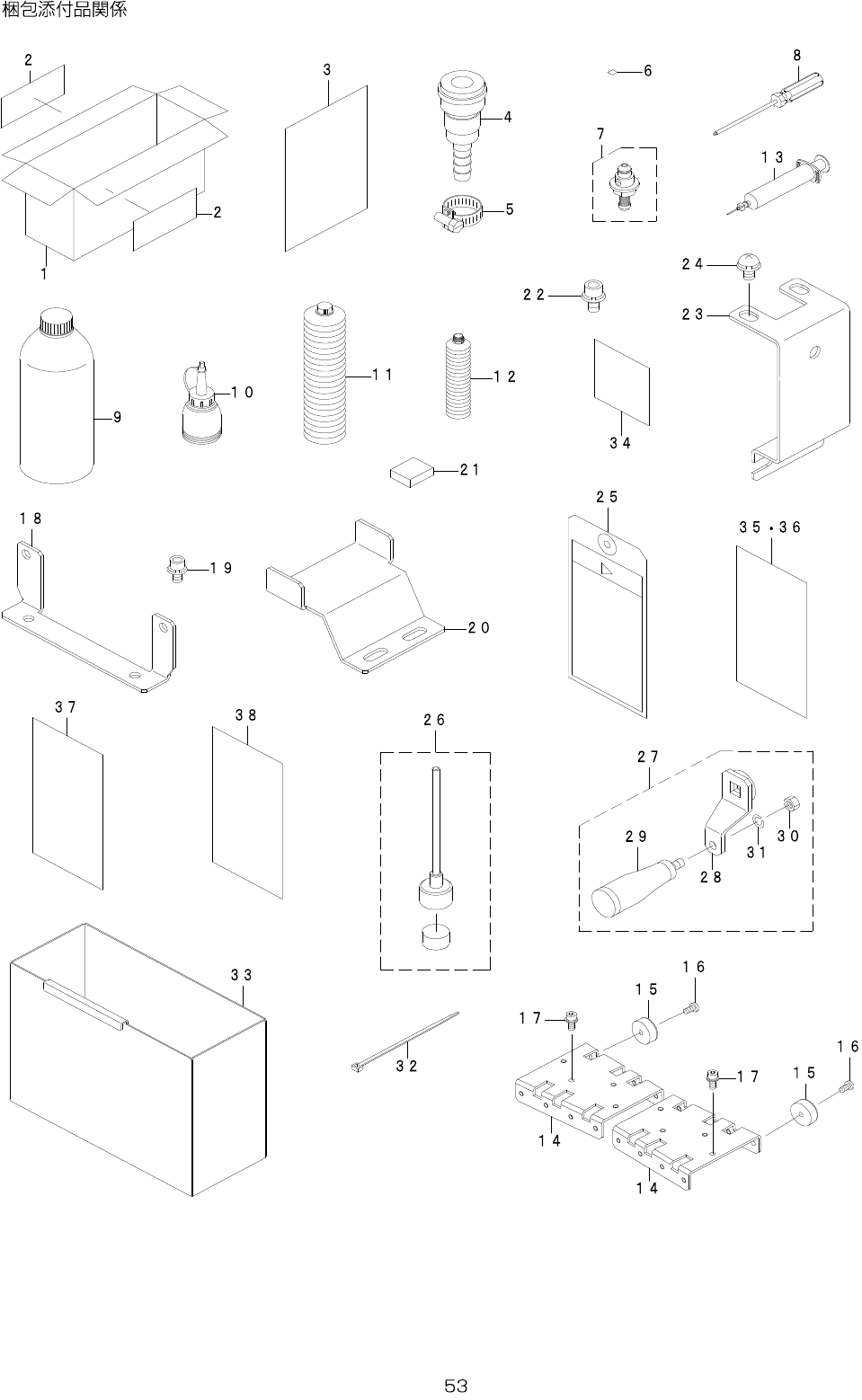

27.ACCESSORIESPARTCOMPONENTS
