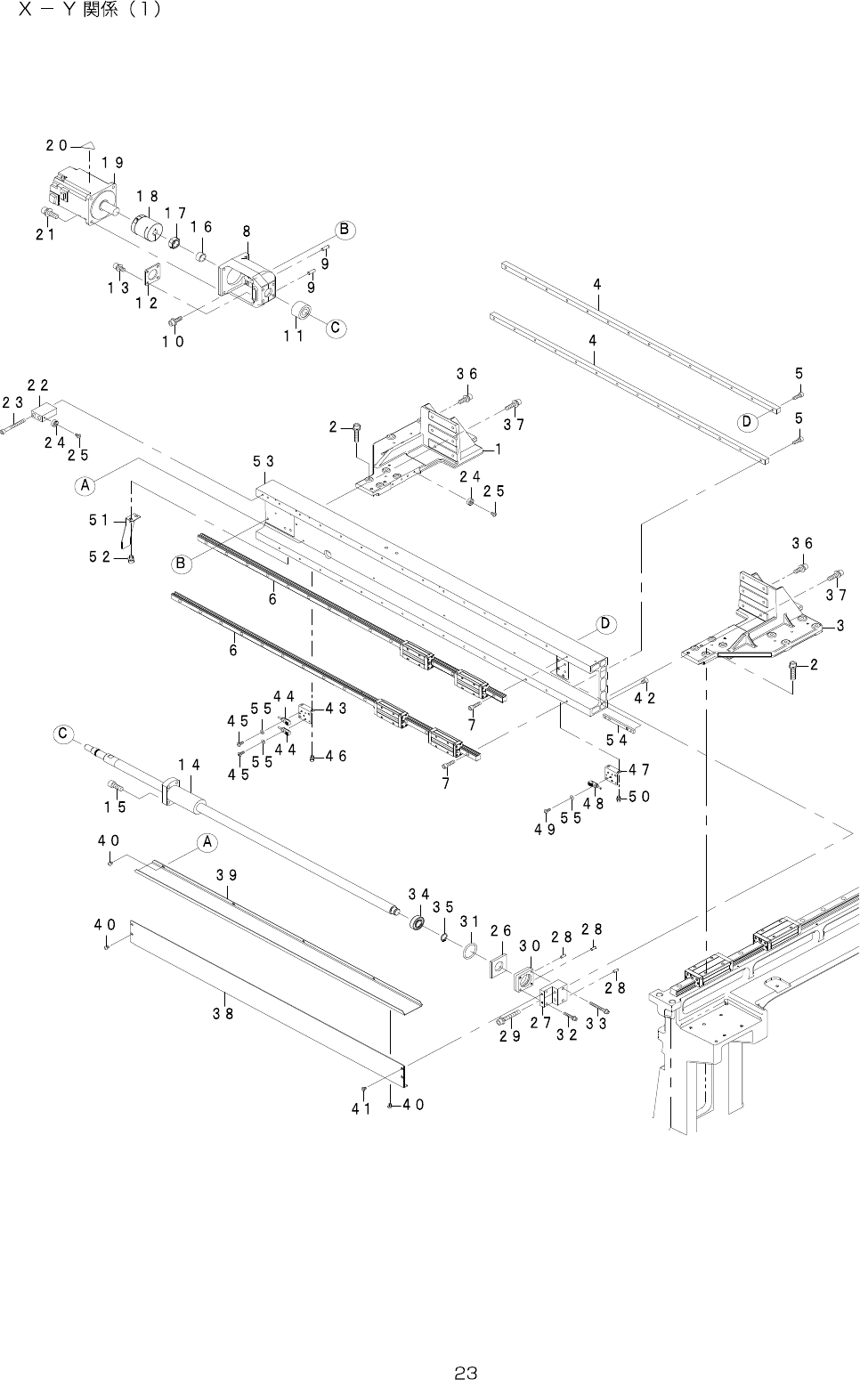

12.X-YCOMPONENTS(1)

- -

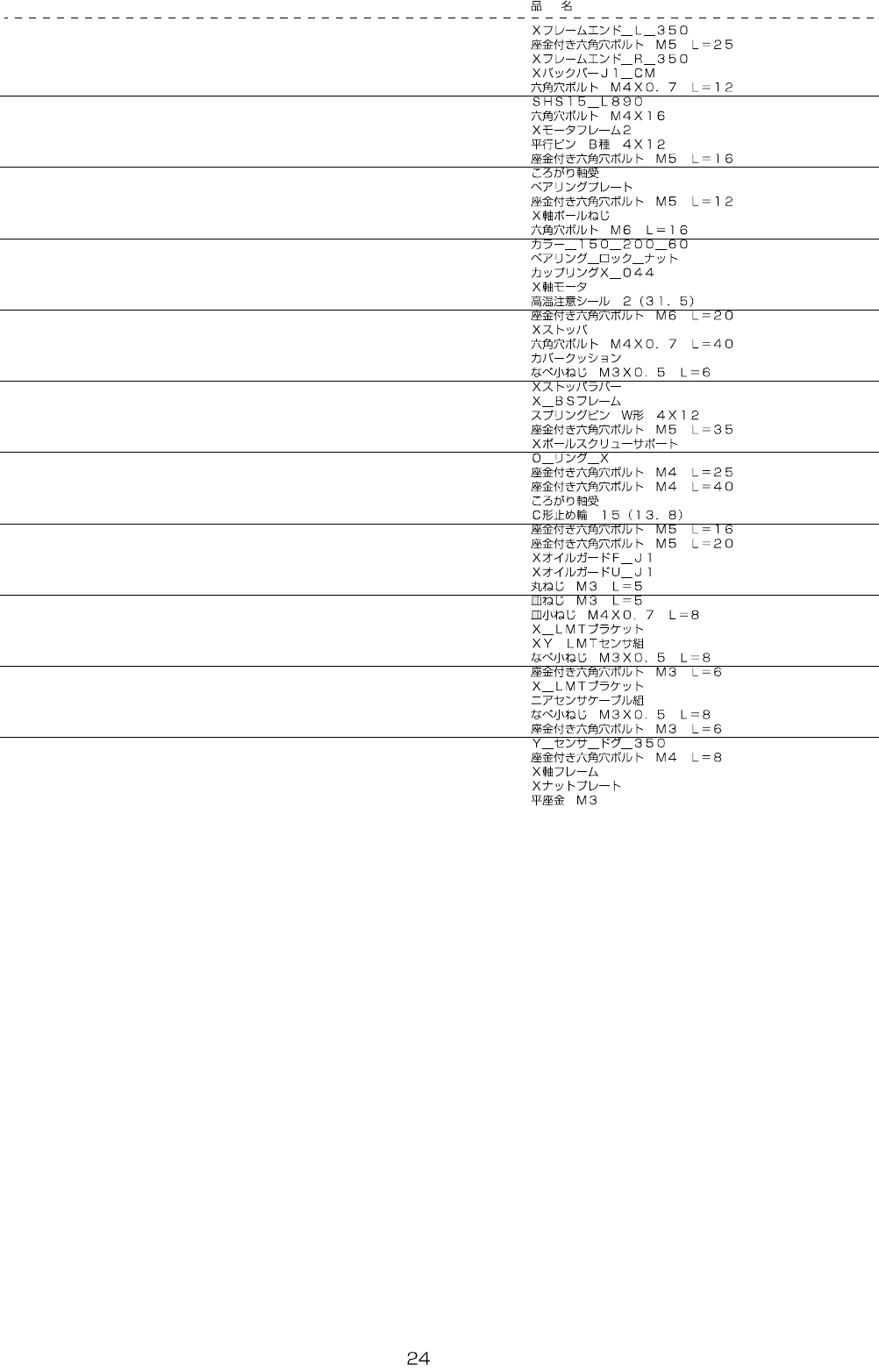

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-61579 X_FRAME_END_L_350 1

2 SL-6052592-TN SCREWM5L=25 16

3 401-61580 X_FRAME_END_R_350 1

4 402-55532 X_BACK_BAR_J1_CM 2

5 SM-6041202-TN SCREWM4X0.7L=12 28

6 402-06431 SHS15_L890 2

7 SM-6041602-TN SCREWM4X16 30

8 401-90239 X_MOTOR_FRAME2 1

9 PH-0400122-C0 PARALLELPINTYPEB4X12 2

10 SL-6051692-TN SCREWM5L=16 4

11 SB-1150016-00 BEARING 1

12 401-77465 BEARING_PLATE 1

13 SL-6051292-TN SCREWM5L=12 4

14 402-06433 X_BALL_SCREW 1

15 SM-6061602-TN SCREWM6L=16 4

16 401-77466 COLLAR_150_200_60 1

17 400-93876 BEARING_LOCK_NUT 1

18 401-72739 COUPLING_X_044 1

19 401-29653 XAXISMOTOR 1

20 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 1

21 SL-6062042-TN SCREWM6L=20 4

22 401-10222 X_STOPPER 1

23 SM-6044002-TN SCREWM4X0.7L=40 2

24 400-49671 COVERCUSHION 2

25 SM-4030601-SC SCREWM3X0.5L=6 2

26 401-82752 X_STOPPER_RUBBER 1

27 401-90235 X_BS_FRAME 1

28 PS-0400122-KP SPRINGPINTYPEW4X12 3

29 SL-6053592-TN SCREWM5L=35 2

30 401-27577 X_BALL_SCREW_SUPPORT 1

31 400-93864 O_RING_X 1

32 SL-6042592-TN SCREWM4L=25 2

33 SL-6044092-TN SCREWM4L=40 2

34 SB-1150004-00 BEARING 1

35 RC-0150001-KP C-RING15(13.8) 1

36 SL-6051692-TN SCREWM5L=16 8

37 SL-6052092-TN SCREWM5L=20 4

38 402-06509 X_OIL_GUARD_F_J1 1

39 402-06508 X_OIL_GUARD_U_J1 1

40 SM-3030552-TN SCREWM3L=5 10

41 SM-1030552-TN PLATESCREWM3L=5 2

42 SM-1040801-SC SCREWM4X0.7L=8 4

43 401-46922 X_LMT_BR 1

44 401-65028 XYLMTSENSORASM 2

45 SM-4030801-SC SCREWM3X0.5L=8 2

46 SL-6030692-TN SCREWM3L=6 2

47 401-46922 X_LMT_BR 1

48 401-29002 NEARSENSORCABLEASM 1

49 SM-4030801-SC SCREWM3X0.5L=8 1

50 SL-6030692-TN SCREWM3L=6 2

51 401-61595 Y_SENSOR_DOG_350 1

52 SL-6040892-TN SCREWM4L=8 2

53 402-06435 X_AXIS_FRAME 1

54 401-86201 X_NUT_PLATE 2

55 WP-0320501-SC WASHERM3 3

- -

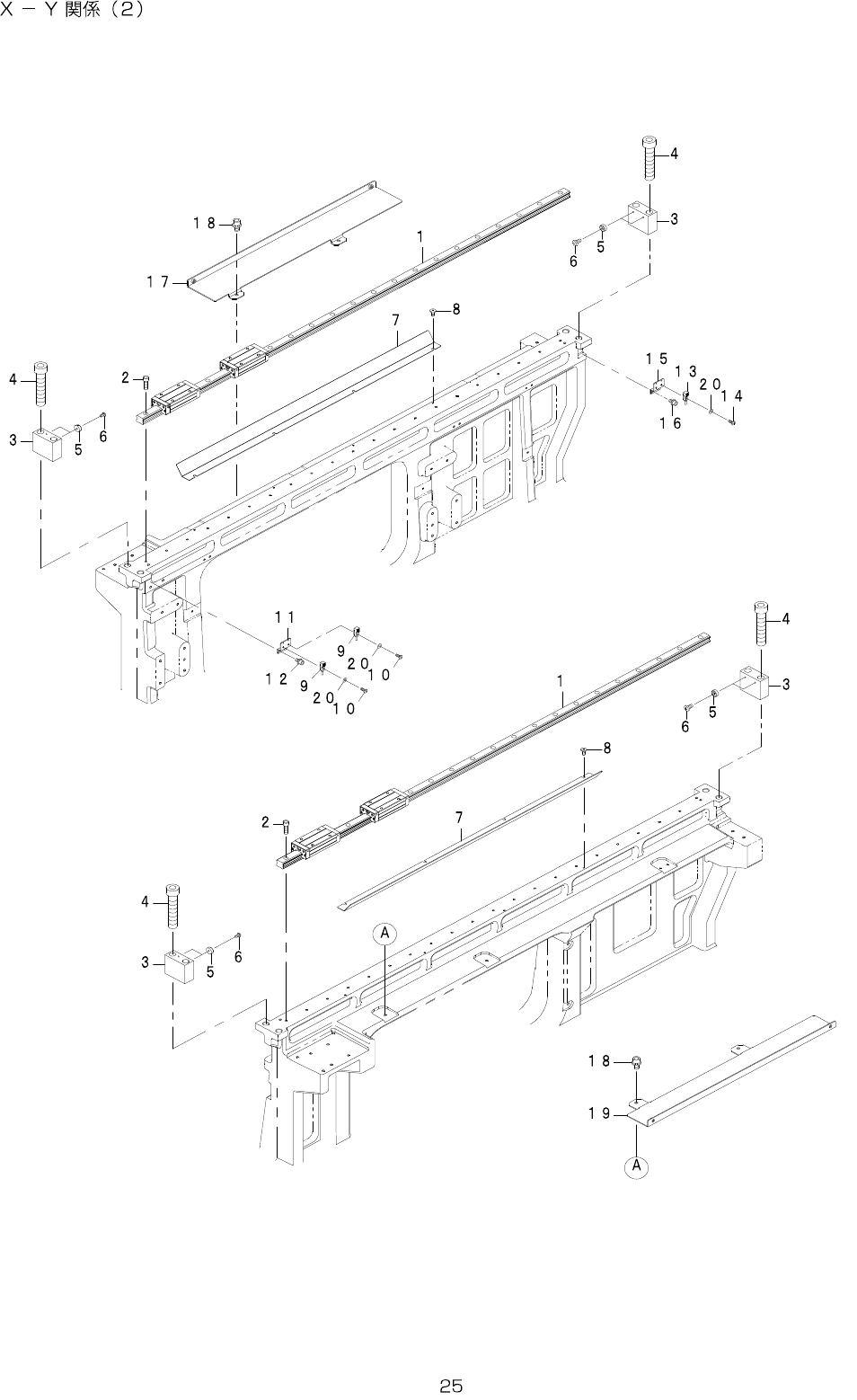

13.X-YCOMPONENTS(2)
