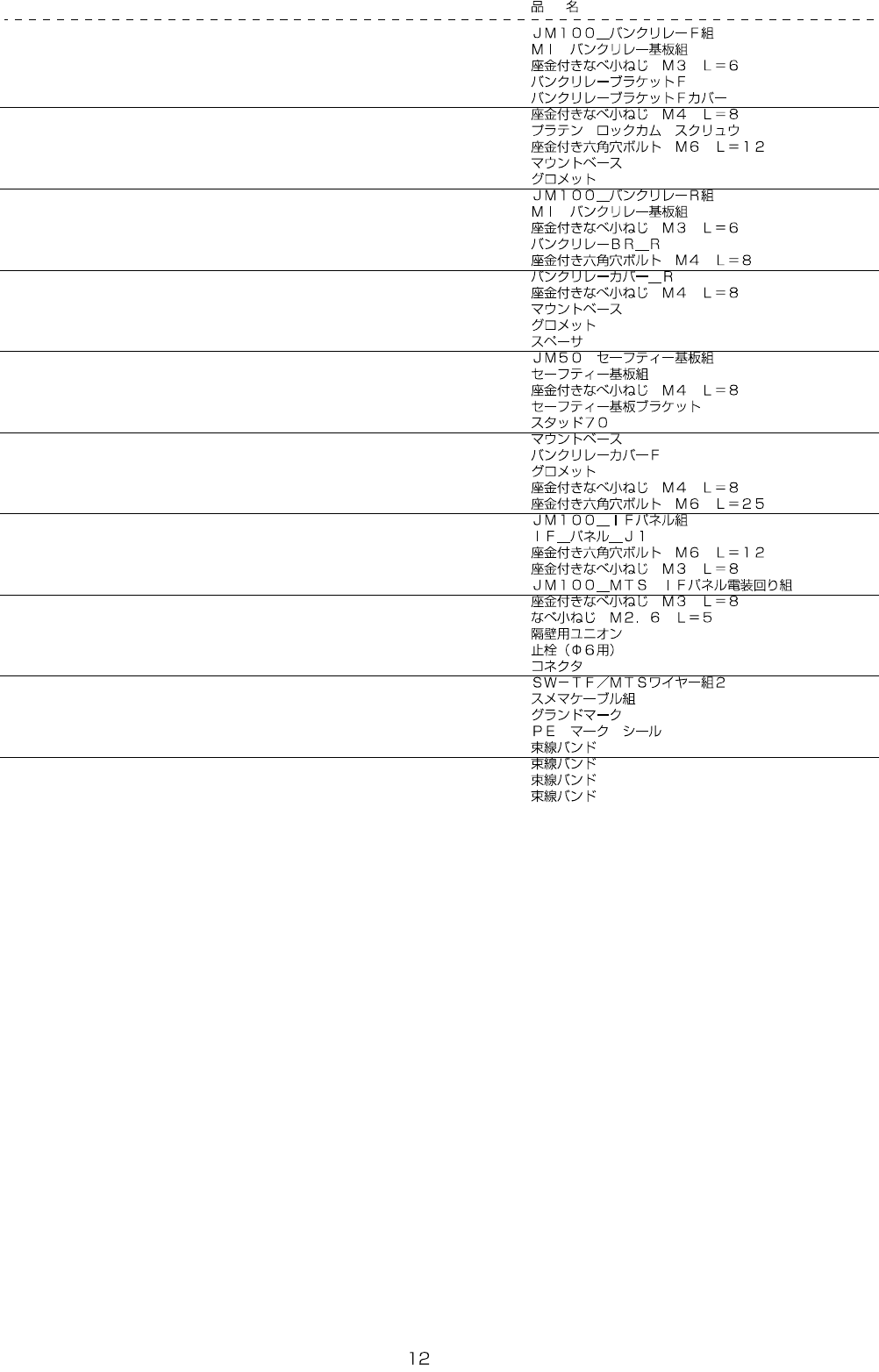

6. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(5)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-06697 ASM_JM100_BANK_RELAY_F_ASSY 1
2 402-06240 MIBANKRELAYPCBASM (1)
3 SL-4030691-SC SCREWM3L=6 (6)
4 402-06501 BANK_RELAY_BR_F (1)
5 402-06625 BANK_RELAY_BR_F_COVER (1)
6 SL-4040891-SC SCREWM4X8 (1)
7 E1038-871-000 PLATENLOCKCAMSCREW (1)
8 SL-6061292-TN SCREWM6L=12 (2)
9 HX-0070600-0A MOUNTBASE (7)
10 HX-0067100-0A GROMMET (0.22)
11 402-06698 ASM_JM100_BANK_RELAY_R_ASSY 1
12 402-06240 MIBANKRELAYPCBASM (1)
13 SL-4030691-SC SCREWM3L=6 (6)
14 401-83018 BANK_RELAY_BR_R (1)
15 SL-6040892-TN SCREWM4L=8 (3)
16 401-83019 BANK_RELAY_COVER_R (1)
17 SL-4040891-SC SCREWM4X8 (2)
18 HX-0070600-0A MOUNTBASE (6)
19 HX-0067100-00 GROMMET
(0.39)
20 HX-0033900-00 SPACER (3)
21 402-55538 ASM_JM50_SAFETY_PWB_ASSY 1
22 401-28872 SAFETYPCBASM (1)
23 SL-4040891-SC SCREWM4X8 (6)
24 402-06624 SAFETY_PWB_BR (1)
25 400-47078 STUD70 (2)
26 HX-0070600-0A MOUNTBASE (6)
27 402-06500 BANK_RELAY_COVER_F (1)
28 HX-0067100-0A GROMMET (0.15)
29 SL-4040891-SC SCREWM4X8 (2)
30 SL-6062592-TN SCREWM6L=25 (2)
31 402-06703 ASM_JM100_IF_PANEL_ASSY 1
32 402-06615 IF_PANEL_J1 (1)
33 SL-6061292-TN SCREWM6L=12 (2)
34 SL-4030881-SC SCREWM3L=8 (8)
35 402-06704 ASM_JM100_MTS_IF_P_E_ARD_ASSY 1
36 SL-4030881-SC SCREWM3L=8 (4)
37 SM-4860501-SC SCREWM2.6X5 (2)
38 PJ-2300062-00 PARTITIONUNION (1)
39 PX-9500010-00 PLUG6 (1)
40 HK-0651200-80 CONNECTOR 1
41 402-05719 SW-TF/MTSWIREASM2
1
42 401-29031 SMEMACABLEASM 2
43 100-04109 GROUNDMARK 3
44 CM-2001000-01 PEMARKLABEL 1
45 EA-9500B01-00 CABLEBAND 150
46 EA-9500B02-00 CABLEBAND 120
47 HX-0006500-0B CABLEBAND 50
48 HX-0006500-0C CABLEBAND 30
- -

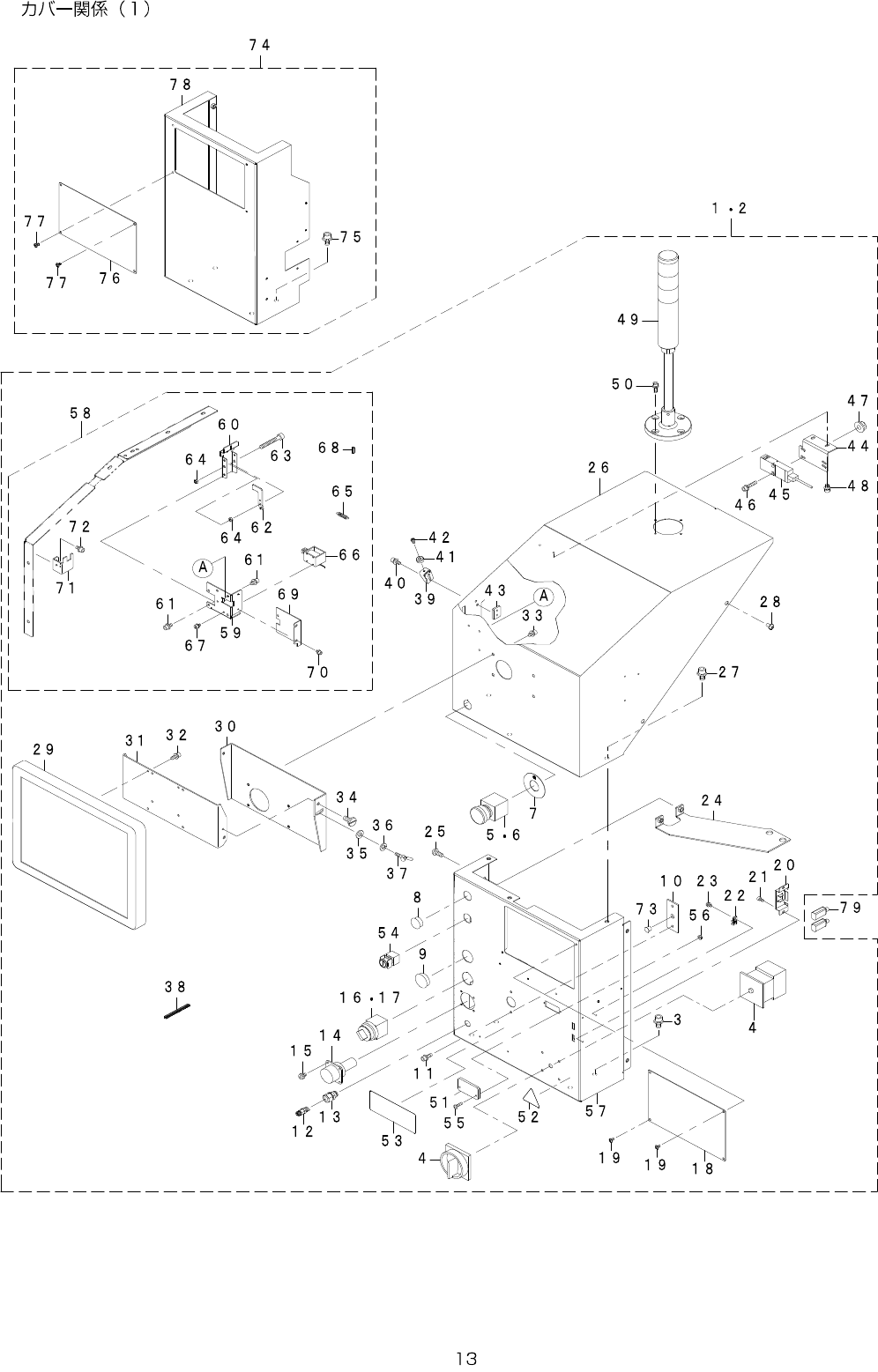

7. COVERCOMPONENTS(1)
