Page
22
SAMSUNG TECHWIN
12mm SMN Tape Feeder
Part List
27 ..2 J70660070B LOCKER SPRING 1 ○ ○ SM1-MF12-118R7
28 ..2 J7066071A TAPE GUIDE SPRING 1 ○ ○ SM1-MF12-119-2
29 ..2 J61071066A FEEDING SPRING 1 ○ ○ J61071066A
30 ..2 J61071054A STOP PAWL SPRING 1 ○ ○ J61071054A
31 ..2 J61071053A DRAIN LEVER SPRING 1 ○ ○ J61071053A
32 ..2 J71650297C PCB COVER 1 ○ ○ SM1-MF12-128R5
33 ..2 J7066076A SPRING PIN 25 2 ○ ○ SM1-MF12-129
34 ..2 J7066088A FORMING BKT SHAFT 1 ○ ○ SM1-MF12-131-3
35 ..2 J70660083B LOCKING LIMIT 1 ○ ○ SM1-MF12-140R3
36 ..2 J70660313B TOGGLE STOPPER2 2 ○ ○ SM1-MF12-150R
37 ..2 J70661019A SPRING PIN 26 1 ○ ○ SM1-MF12-152
38 ..2 J7066089A DRAIN PAWL SPRING 1 ○ ○ SM1-MF12-153-4
39 ..2 J70661020A LOCKER HINGE 2 ○ ○ SM1-MF12-156
40 ..2 J72650164B VINYL ROLLER 1 ○ ○ SM1-MF16-036R
41 ..2 J70660087B VINYL ROLLER SHAFT 1 ○ ○ SM1-MF16-037R3
42 ..2 J70652049A VINYL REMOVE BKT 1 ○ ○ J70652049A
43 ..2 J70652527A CYLINDER CABLE COVER 1 ○ ○ J70652527A
44 ..2 J6012401550 TRUSS SCREW 2 ○ ○ M4*15 (SUS)
45 ..2 J70652598A VINYL ROLLER SHAFT 3 1 ○ ○ J70652598A
46 ..2 J72651136A VINYL ROLLER 3 1 ○ ○ J72651136A
47 ..2 J71651412A 12MM MAIN FRAME 1 ○ ○ J71651412A
48 ..2 J70652190A SPROCKET SHAFT 1 ○ ○ J70652190A
49 ..2 J70660057B TAPE GUIDE SHAFT 1 ○ ○ SM1-MF12-038R
50 ..2 J70652591A TAKE UP REEL SHAFT 1 ○ ○ J70652591A
51 ..2 J70660085B LOCKER LIMIT SPRING 1 ○ ○ SM1-MF12-148R
52 ..2 J6502008A LOW PROFILE MOUNTS 1 ○ ○ DALM5 (NYLON)
Q'TY
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Page
23
SAMSUNG TECHWIN
12mm SMN Tape Feeder
Part List
53 ..2 J2500293A LEVER SHAFT 1 1 ○ ○ TF44-107R
54 ..2 J1301023 E-RING 4 ○ ○ DIA3 (SUS)
55 ..2 J6044400050 STAR WASHER 2 ○ ○ M4 (SUS)
56 ..2 J1301149 E-RING 2 ○ ○ DIA4 (SUS)
57 ..2 J1301154 FLAT WASHER 2 ○ ○ M3 (SUS)
58 ..2 J6006401059 FLAT HEAD CAP SCREW 5 ○ ○ M4 X 10MM
59 ..2 J1301158 FLAT HEAD CAP SCREW 3 ○ ○ M3*5 (SUS)
62 ..2 J1301304 HEX NUT 2 ○ ○ M4 (SUS)
63 ..2 J1301448 FLAT HEAD CAP SCREW 1 ○ ○ M3*6 (SUS)
64 ..2 J6004300650 BUTTON HEAD CAP SCREW 6 ○ ○ M3*6(SUS)
65 ..2 J6004301050 BUTTON HEAD CAP SCREW 2 ○ ○ M3*10(SUS)
66 ..2 J6006300850 FLAT HEAD CAP SCREW 3 ○ ○ M3*8(SUS)
69 ..2 J6010300438 SOCKET SET SCREW 3 ○ ○ M3*4 (BL/Zn)
Q'TY
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
SAMSUNG TECHWIN
Page
24

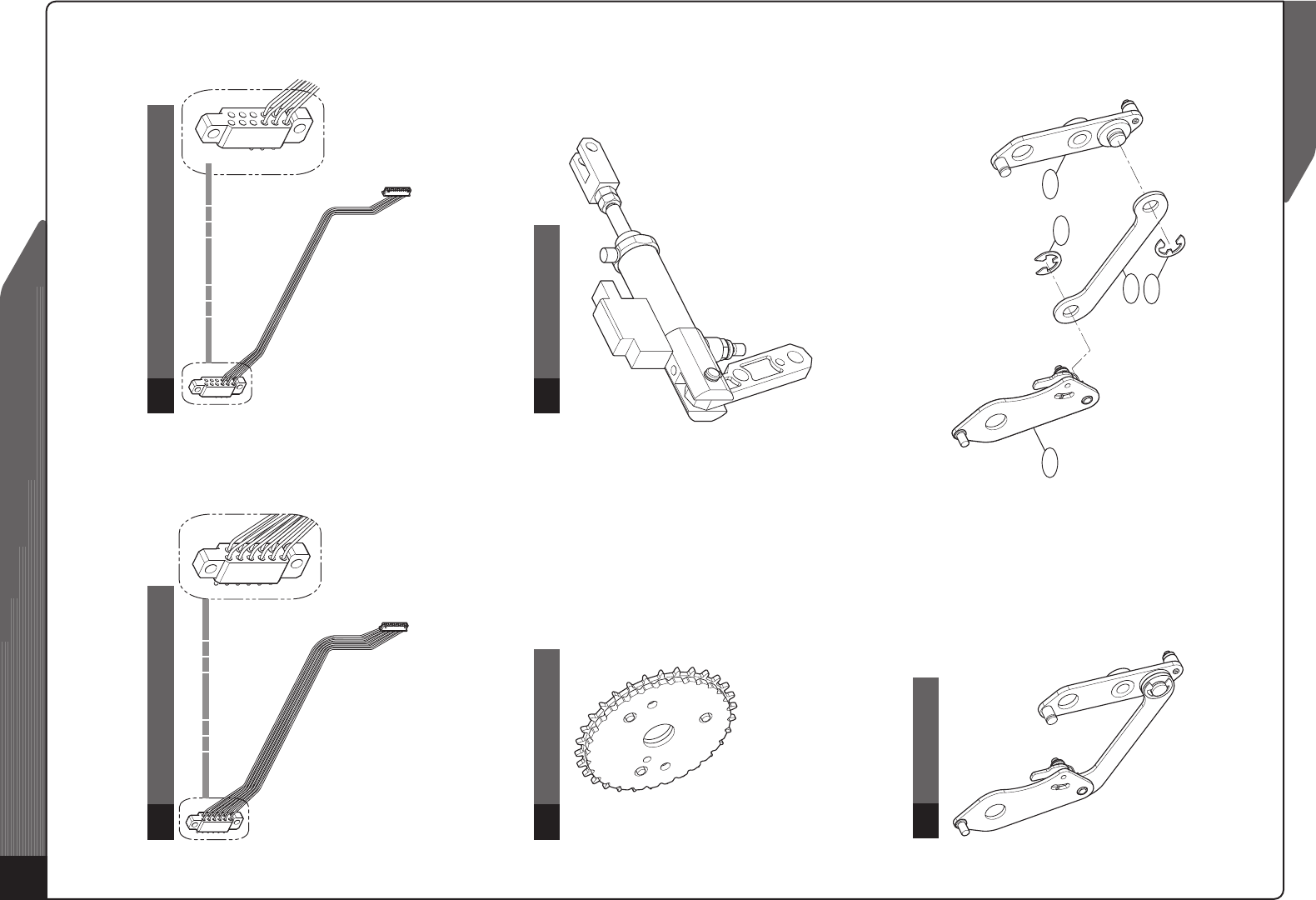

12mm SMN Tape Feeder -Sub
2
3
1
2
4
Sprocket Ass'y
A-2
Cylinder Ass'y
A-3
Lever A'ssy
A-4
Prober Cable Ass'y-IT
A-1
Prober Cable Ass'y-NON_IT
A-1
