Page 60 SAMSUNG TECHWIN 24m m SMN T ape Fe ede r -Su b Part List A-20 ..2 J9065 1472A INDEX ING S ENSOR ASSY -2488 1 ○ ○ A-21 ..2 J9065 212A CLAM P SWI TCH C ABLE ASSY 1 ○ ○ A-22 ..2 J9065 0281B PROBE CABL E ASS Y 121 6 …
Page
59
SAMSUNG TECHWIN
24mm SMN Tape Feeder -Sub
Part List
1 ...3 J67011042A CYLINDER 1 ○ ○ CJ2D16-235-CJMJ1625
2 ...3 J6711252A BARB ELBOW FITTING 1 ○ ○ M-5ALHU-3
3 ...3 J70652277A CYLINDER BRACKET 1 ○ ○ J70652277A
4 ...3 J70652054A 12MM CYL BKT 1 ○ ○ J70652054A
5 ...3 J70652720A PITCH BLOCK BUSH 1 ○ ○ J70652720A
A-12 ..2 J90651527A VALVE TOTAL ASSY 1 ○ ○
1 ...3 J67021020A SOLENOID VALVE 1 ○ ○ SYJ312-5LZ-M3-F
2 ...3 J67031011A SPEED CON 1 ○ ○ AS1311F-M3-23
3 ...3 J67111129A FITTING 1 ○ ○ KJS23-M3
4 ...3 J6705008A SILENCER 1 ○ ○ AN120-M3
5 ...3 J70652740A VALVE BRACKET 1 ○ ○ J70652740A
A-13 ..2 J90651528A T-LINK5 ASSY 1 ○ ○
A-14 ..2 J90651529A PUSHER LINK ASSY 1 ○ ○
A-15 ..2 J90651530A STOP PAWL ASSY-2488 1 ○ ○
A-16 ..2 J90651531A REEL HANGER ASSY-2488 1 ○ ○
A-17 ..2 J90651532A REEL PLATE ASSY 1 ○ ○
A-18 ..2 J90651533A T-LINK ASSY 1 ○ ○
1 ...3 J90651491A T-LINk2 ASSY 1 ○ ○ J90651491A
2 ...3 J70660007C T LINK1 SHAFT2 1 ○ ○ SM1-MF08-070R2
3 ...3 J70650996B T LINK1 1 ○ ○ SM1-MF08-060R1
4 ...3 J70660029B T LINK3 SHAFT1 1 ○ ○ SM1-MF08-095R1
5 ...3 J70652736A T-LINK4 1 ○ ○ J70652736A
6 ...3 J70652737A T-LINK3 1 ○ ○ J70652737A
7 ...3 J70660002C T LINK2 SHAFT2 1 ○ ○ SM1-MF08-065R2
8 ...3 J1301149 E-RING 3 ○ ○ DIA4 (SUS)
A-19 ..2 J90651534A DRAIN LINK ASSY 1 ○ ○
Q'TY
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Page
60
SAMSUNG TECHWIN
24mm SMN Tape Feeder -Sub
Part List
A-20 ..2 J90651472A INDEXING SENSOR ASSY-2488 1 ○ ○
A-21 ..2 J9065212A CLAMP SWITCH CABLE ASSY 1 ○ ○
A-22 ..2 J90650281B PROBE CABLE ASSY 1216 NONIT 1 X ○ NON IT OPTION
..2 J90650210B PROBE CABLE ASSY 1216 IT 1 ○ X IT OPTION
A-23 ..2 J9065280A FEEDING SWITCH ASS'Y NONIT 1 X ○ NON IT OPTION
..2 J9065176A FEEDING SWITCH ASS'Y IT 1 ○ X IT OPTION
A-24 ..2 J90600367C NONIT PCB ASSY 103 1 X ○ NON IT OPTION
..2 J90600366B IT SLAVE PCB ASSY 1 ○ X IT OPTION
A-25 ..2 J90651473A SOLENOID CABLE ASS'Y 1 ○ ○
A-26 ..2 J9065092A REEL STOPPER ASSY 1 ○ ○ SM1-MF12-213
Q'TY
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Page
61
SAMSUNG TECHWIN

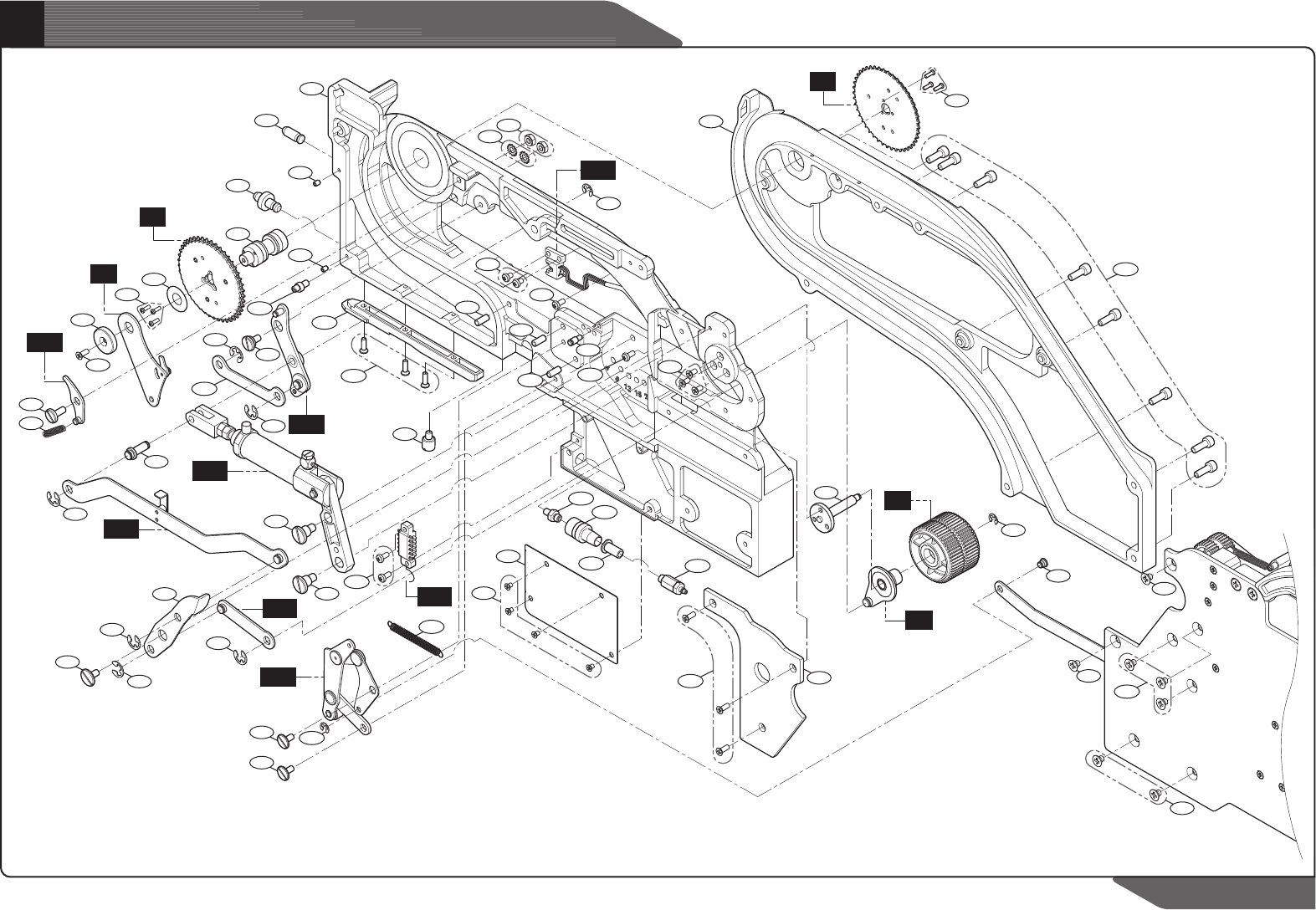

32mm SMN Tape Feeder (Front)
71
A-7
A-3
A-15
A-10
A-11
A-14
A-22
A-19
A-18
A-20
84
A-2
A-5
A-7
81
81
64
80
79
78
78
75
75
75
75
74
73
73
70
69
68
67
65
65
65
63
63
62
61
60
55
54
53
52
49
48
48
47
46
44
45
43
42
42
42
41
40
35
34
26
25
23
20
19
18
11
2
1
27
65
65
65
82
74
83
