Page 80 SAMSUNG TECHWIN 44m m SMN T ape Fe ede r Part List 79 . .2 J6004 30065 0 BUTT ON HE AD CA P SCR EW ○ ○ M3*6( SUS) 80 . .2 J6004 30085 0 BUTT ON HE AD CA P SCR EW ○ ○ M3*8( SUS) 81 . .2 J6010 30043 8 SOCK ET SE T …
Page
79
SAMSUNG TECHWIN
44mm SMN Tape Feeder
Part List
53 ..2 J70650978C INSTALL GUIDE 1 ○ ○
54 ..2 J7065944A V LOC PIN 1 ○ ○
55 ..2 J7065948A LOCATION FLANGE 1 ○ ○
56 ..2 J70691006A REEL BRAKE SPRING 1 ○ ○
57 ..2 J7066079A REEL PLATE SHAFT 1 ○ ○
58 ..2 J7066315A DAMPER WASHER 1 ○ ○
59 ..2 J7265131A DAMPER 1 ○ ○
60 ..2 J6711249A COUPLER PLUG 1 ○ ○
61 ..2 J7066024B COUPLER BKT1 1 ○ ○
62 ..2 J7066025A COUPLER BKT2 1 ○ ○
63 ..2 J1301023 E-RING ○ ○ DIA3 (SUS)
64 ..2 J1301149 E-RING ○ ○ DIA4 (SUS)
65 ..2 J1301303 E-RING ○ ○ DIA5 (SUS)
66 ..2 J1301266 HEX NUT ○ ○ M3 (SUS)
67 ..2 J1301304 HEX NUT ○ ○ M4 (SUS)
68 ..2 J6044400050 STAR WASHER ○ ○ M4 (SUS)
69 ..2 J6007301238 FLAT HEAD SOCKET SCREW ○ ○ M3*12 (BL/ZN)
70 ..2 J6006254050 FLAT HEAD CAP SCREW ○ ○ M2.5*4 (SUS)
71 ..2 J1301448 FLAT HEAD CAP SCREW ○ ○ M3*6 (SUS)
72 ..2 J2101083 FLAT HEAD TAPPING SCREW ○ ○ M3*8
73 ..2 J6012300650 TRUSS SCREW ○ ○ M3*6 (SUS)
74 ..2 J6006300850 FLAT HEAD CAP SCREW ○ ○ M3*8 (SUS)
75 ..2 J6006400850 FLAT HEAD CAP SCREW ○ ○ M4*8 (SUS)
76 ..2 J6009401250A SEMUS NABE SCREW ○ ○ M4*12 (SUS)
77 ..2 J6007300838 FLAT HEAD SOCKET SCREW ○ ○ M3*8 (BL/ZN)
78 ..2 J6004200450 BUTTON HEAD CAP SCREW ○ ○ M2*5 (SUS)
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Q'TY
Page
80
SAMSUNG TECHWIN
44mm SMN Tape Feeder
Part List
79 ..2 J6004300650 BUTTON HEAD CAP SCREW ○ ○ M3*6(SUS)
80 ..2 J6004300850 BUTTON HEAD CAP SCREW ○ ○ M3*8(SUS)
81 ..2 J6010300438 SOCKET SET SCREW ○ ○ M3*4 (BL/Zn)
82 ..2 J6004300650 BUTTON HEAD CAP SCREW ○ ○ M3*6 (SUS)
83 ..2 J70652192A LINK2 1 ○ ○
84 ..2 J90651490A FILTER ASSY 1 ○ ○
85 ..2 J7066140A LOCKER SPRING 1 ○ ○
86 ..2 J70652664A REEL BRAKE SPACER-44 1 ○ ○
87 ..2 J6004300850 BUTTON HEAD CAP SCREW ○ ○ M3*8(SUS)
88 ..2 J6006201050 FLAT HEAD CAP SCREW ○ ○ M2*10
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Q'TY
SAMSUNG TECHWIN
Page
81

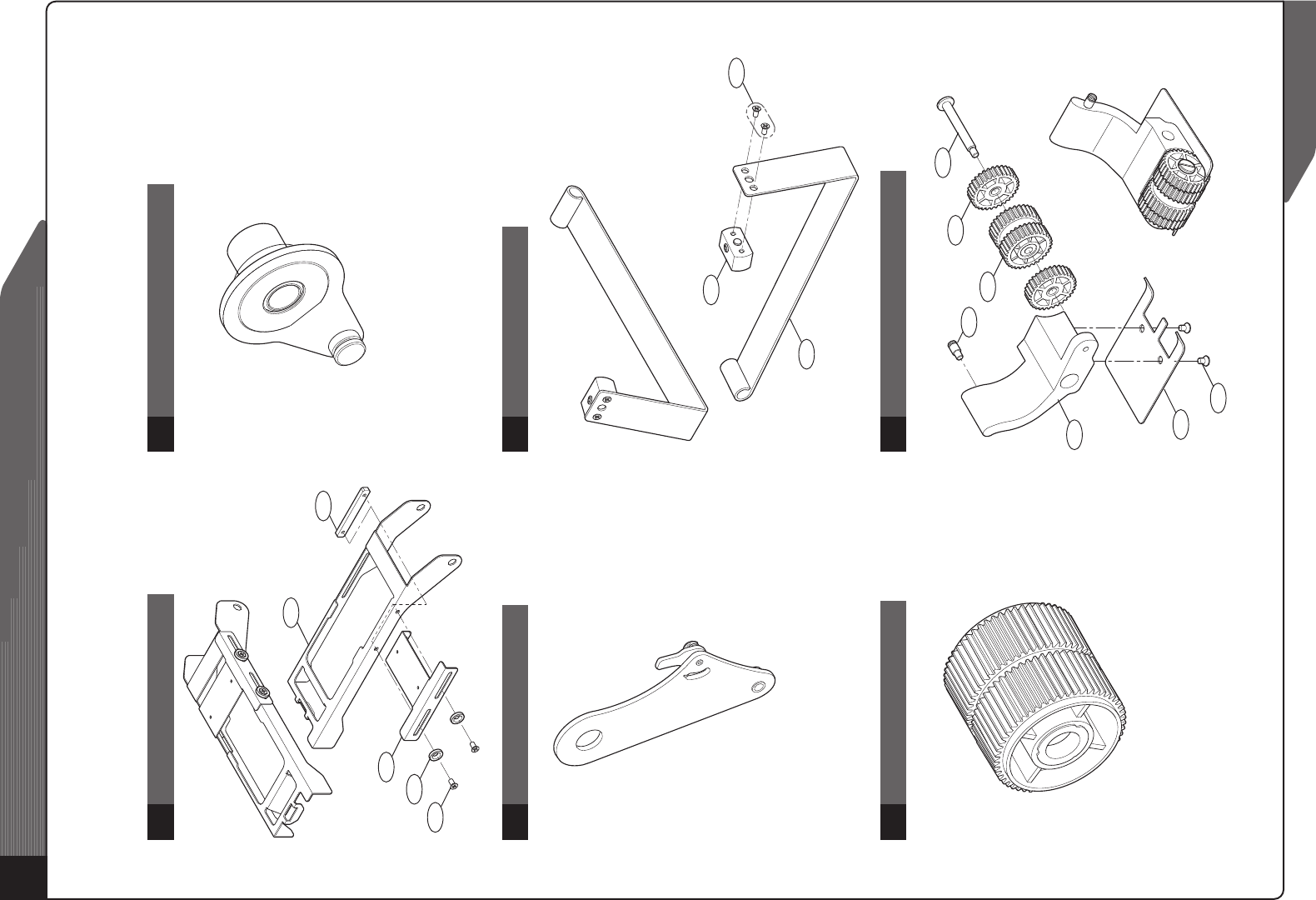

44mm SMN Tape Feeder -Sub
Tape Guide Ass'y-44
A-1
Drain Lever Ass'y-3288
A-2
Pusher Lever Ass'y
A-3
Magnet Link Ass'y
A-4
Drain Gear Ass'y-44
A-5
Pressing Lever Ass'y-44
A-6
1
3
2
1
2
4
5
7
1
5
6
3
4
2
3
