Page 32 SAMSUNG TECHWIN 12m m SMN T ape Fe ede r -Su b Part List A-14 ..2 J9167 1830A INDEX ING S ENSOR ASSY 1 ○ ○ J9 16718 30A A-15 ..2 J9065 1544A HANDL E IT ASSY 1 ○ X J906515 44A IT OP TION 1-1 . ..3 J 90650 176C FEE…
Page
31
SAMSUNG TECHWIN
12mm SMN Tape Feeder -Sub
Part List
A-8 ..2 J90651447A 12MM LOCKER ASSY 1 ○ ○ J90651447A
A-9 ..2 J90651480A CLAMP SWITCH CABLE ASSY 1 ○ ○ J90651480A
1 ..2 J90600367C NONIT PCB ASSY 105 1 X ○ 1.05 NON IT OPTION
2 ..2 J90600366B IT SLAVE PCB ASSY 1 ○ X 2.03 IT OPTION
A-10 ..2 J90651443A REEL PLATE ASSY 1 ○ ○ J90651443A
1 ..2 J90651443A REEL PLATE ASSY 1 ○ ○ J90651443A
2 ...3 J7265131A DAMPER 1 ○ ○ TF12-N226R
3 ...3 J7065802A DAMPER WASHER 1 ○ ○ TF12-N228R
4 ...3 J7066079A REEL PLATE SHAFT 1 ○ ○ SM1-MF12-134
5 ...3 J1301158 FLAT HEAD CAP SCREW 3 ○ ○ M3*5 (SUS)
6 ...3 J7066047A FLAT HEAD CAP SCREW-H4.4 2 ○ ○ SM1-MF08-132
7 ...3 J1301149 E-RING 2 ○ ○ DIA4 (SUS)
8 ...3 J70652289A CABLE COVER 1 ○ ○ J70652289A
9 ..2 J90651449A REEL ARM PLATE ASSY 1 ○ ○ J90651449A
10 ...3
J1301023 E-RING
1 ○ ○
DIA3 (SUS)
11 ...3
J70652268A REEL ARM PLATE
1 ○ ○
J70652268A
12 ...3
J70652597A REEL BRAKE PIN
1 ○ ○
J70652597A
13 ...3
J6004301050 BUTTON HEAD CAP SCREW
1 ○ ○
M3*10(SUS)
14 ...3
J70660084B REEL LEVER SPRING
2 ○ ○
SM1-MF12-147R3
15 ...3
J7065810A REEL ARM POST
1 ○ ○
TF12-N241
16 ...3
J70652276A REEL BRAKE
1 ○ ○
J70652276A
17 ...3
J6006401059 FLAT HEAD CAP SCREW
1 ○ ○
M4 X 10MM
18 ..2 J9065092A REEL STOPPER ASSY 1 ○ ○ SM1-MF12-213
A-11 ..2 J9065203A FORMING GEAR ASSY 1 ○ ○ SM1-MF12-211
A-12 ..2 J90651543A STOP PAWL ASSY 1 ○ ○ J90651543A
A-13 ..2 J90650204B DRAIN BKT ASSY 1 ○ ○ SM1-MF12-212R1
Q'TY
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Page
32
SAMSUNG TECHWIN
12mm SMN Tape Feeder -Sub
Part List
A-14 ..2 J91671830A INDEXING SENSOR ASSY 1 ○ ○ J91671830A
A-15 ..2 J90651544A HANDLE IT ASSY 1 ○ X J90651544A IT OPTION
1-1 ...3 J90650176C FEEDING SWITCH ASSY IT 105 1 ○ X J90650176C IT OPTION
..2 J90651545A HANDLE NON IT ASSY 1 X ○ J90651545A NON IT OPTION
1-2 ...3 J90650280C FEEDING SWITCH ASSY NONIT 105 1 X ○ J90650280C NON IT OPTION
A-16 DRAIN LEVER & GEAR ASSY 1 ○ ○
1 ..2 J90651439A 12MM DRAIN LEVER ASSY 1 ○ ○ J90651439A
2 ..2 J90651542A DRAIN GEAR ASSY 1 ○ ○ J90651542A
Q'TY
IT
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Page
33
SAMSUNG TECHWIN

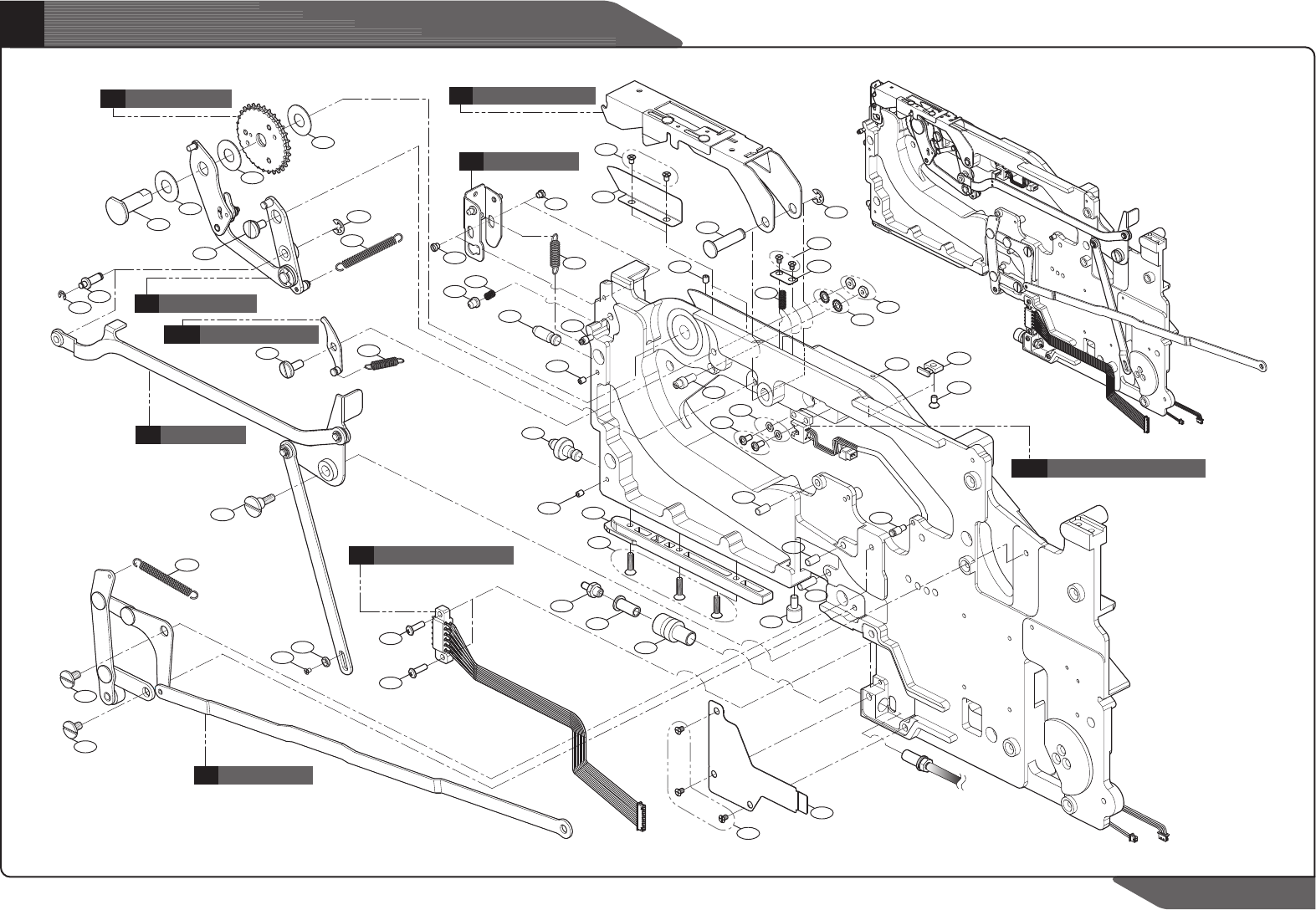

16mm SMN Tape Feeder (Front)
6
Locker Ass'y
A-8
Tape Guide Ass'y
A-7
Sprocket Ass'y
A-2
Pusher Ass'y
A-4
Drain Ass'y
A-5
Toggle Ass'y
A-6
Prober Cable Ass'y
A-1
Indexing Sensor Ass'y
A-14
64
69
69
69
54
65
65
62
52
63
57
56
55
49
48
17
39
39
37
36
36
30
28
27
26
24
23
21
19
18
18
18
18
16
15
14
11
12
2
10
9
8
7
5
4
3
1
1
1
29
47
51
35
56
20
Stop Pawl Ass'y
A-12
53
