Page 72 SAMSUNG TECHWIN 32m m SMN T ape Fe ede r -Su b Part List A-1 ..2 J906 51493 A TA PE GU IDE A SSY-3 2 1 ○ ○ 1 ...3 J7065 2614A TAPE GUIDE -32 1 ○ ○ J7065 2613A 2 ...3 J9065 1501A SHUTT ER AS SY-32 1 ○ ○ J9065 1500…
SAMSUNG TECHWIN
Page
71

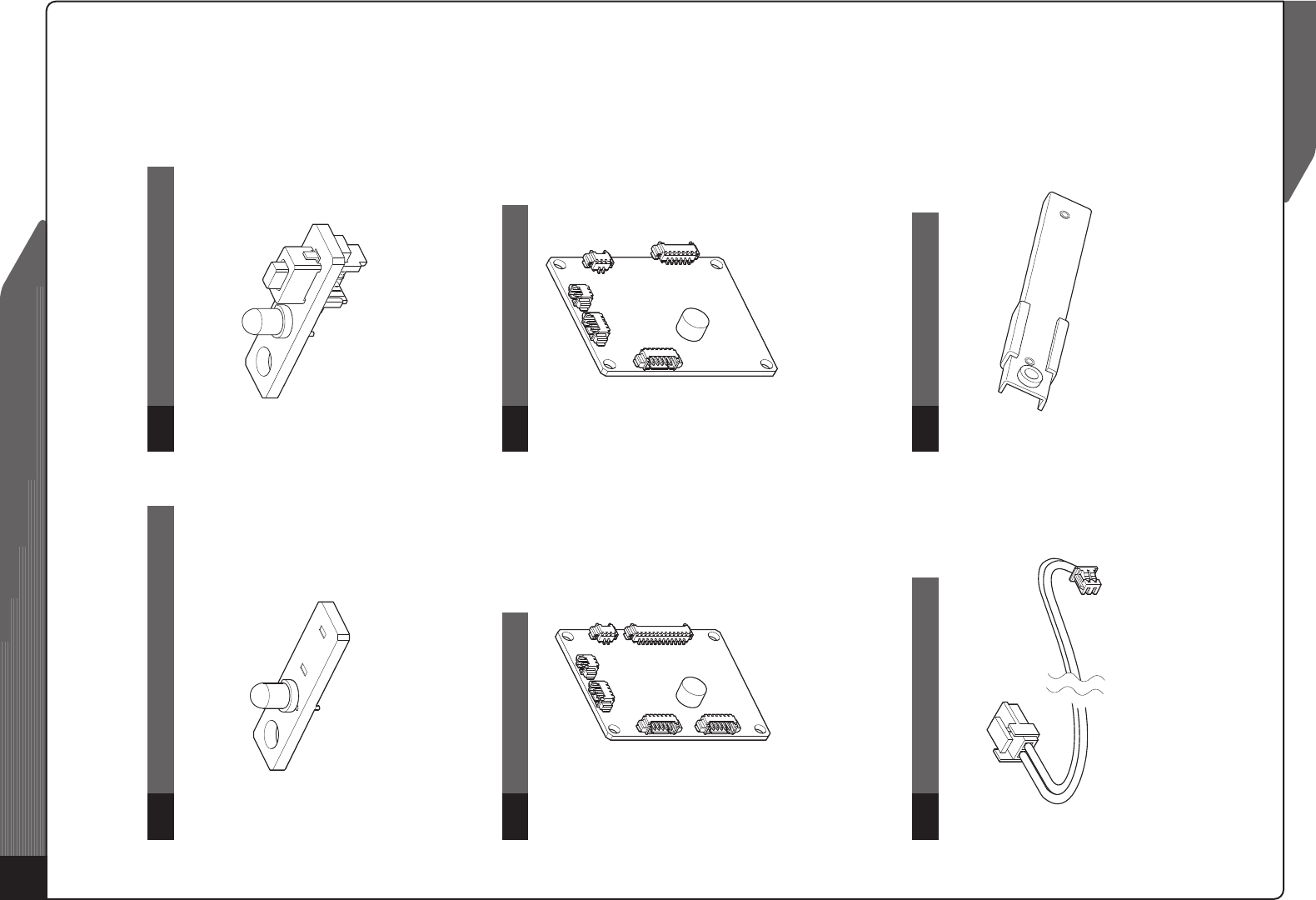

32mm SMN Tape Feeder -Sub
Solenoid Cable Ass'y
A-25
Reel Stopeer Ass'y
A-26
NONIT PCB Ass'y
A-24
IT Slave PCB Ass'y
A-24
Feeding Switch Ass'y-NONIT
A-23
Feeding Switch Ass'y-IT
A-23
Page
72
SAMSUNG TECHWIN
32mm SMN Tape Feeder -Sub
Part List
A-1 ..2 J90651493A TAPE GUIDE ASSY-32 1 ○ ○
1 ...3 J70652614A TAPE GUIDE-32 1 ○ ○ J70652613A
2 ...3 J90651501A SHUTTER ASSY-32 1 ○ ○ J90651500A
3 ...3 J70652748A SHUTTER STOP NUT 1 ○ ○ J70652748A
4 ...3 J70652718A SHUTTER GUIDE WASHER 2 ○ ○ J70652718A
5 ...3 J1301448 FLAT HEAD CAP SCREW 2 ○ ○ M3*6 (SUS)
A-2 ..2 J90651499A DRAIN LEVER ASSY-3288 1 ○ ○
A-3 ..2 J90651507A PUSHER LEVER ASSY 1 ○ ○
A-4 ..2 J90651508A MAGNET LINK ASSY 1 ○ ○
1 ...3 J70652745A MAGNET LINK 1 ○ ○ J70652745A
2 ...3 J90651509A MAGNET ASSY 1 ○ ○ J90651509A
3 ...3 J6006164050 FLAT HEAD CAP SCREW 2 ○ ○ M1.6*4 (SUS)
A-5 ..2 J90651511A DRAIN GEAR ASSY-32 1 ○ ○
A-6 ..2 J90651517A PRESSING LEVER ASSY-32 1 ○ ○
1 ...3 J71651432A PRESSING GEAR LEVER-32 1 ○ ○ J71651432A
2 ...3 J70652693A PRESSING GEAR SHAFT-2432 1 ○ ○ J70652693A
3 ...3 J90651506A PRESSING GEAR ASSY 1 ○ ○ J90651506A
4 ...3 J70652642A PRESSING GEAR FORK-32 1 ○ ○ J70652642A
5 ...3 J6006254050 FLAT HEAD CAP SCREW 2 ○ ○ M2.5*4 (SUS)
6 ...3 J70652726A PRESSING GEAR SPRING POST 1 ○ ○ J70652726A
A-7 ..2 J90651522A SPROCKET ASSY 1 ○ ○
A-8 ..2 J90651523A LOCKER ASSY 1 ○ ○
A-9 ..2 J90651524A CLAMP LEVER ASSY 1 ○ ○
A-10 ..2 J90651525A CROSS LEVER ASSY 1 ○ ○
A-11 ..2 J90651526A CYLINDER TOTAL ASSY 1 ○ ○
1 ...3 J67011042A CYLINDER 1 ○ ○ CJ2D16-235-CJMJ1625
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Q'TY
IT
Page
73
SAMSUNG TECHWIN
32mm SMN Tape Feeder -Sub
2 ...3 J6711252A BARB ELBOW FITTING 1 ○ ○ M-5ALHU-3
3 ...3 J70652277A CYLINDER BRACKET 1 ○ ○ J70652277A
4 ...3 J70652054A 12MM CYL BKT 1 ○ ○ J70652054A
5 ...3 J70652720A PITCH BLOCK BUSH 1 ○ ○ J70652720A
A-12 ..2 J90651527A VALVE TOTAL ASSY 1 ○ ○
1 ...3 J67021020A SOLENOID VALVE 1 ○ ○ SYJ312-5LZ-M3-F
2 ...3 J67031011A SPEED CON 1 ○ ○ AS1311F-M3-23
3 ...3 J67111129A FITTING 1 ○ ○ KJS23-M3
4 ...3 J6705008A SILENCER 1 ○ ○ AN120-M3
5 ...3 J70652740A VALVE BRACKET 1 ○ ○ J70652740A
A-13 ..2 J90651528A T-LINK5 ASSY 1 ○ ○
A-14 ..2 J90651529A PUSHER LINK ASSY 1 ○ ○
A-15 ..2 J90651530A STOP PAWL ASSY-2488 1 ○ ○
A-16 ..2 J90651531A REEL HANGER ASSY-2488 1 ○ ○
A-17 ..2 J90651532A REEL PLATE ASSY 1 ○ ○
A-18 ..2 J90651533A T-LINK ASSY 1 ○ ○
1 ...3 J90651491A T-LIN2 ASSY 1 ○ ○ J90651491A
2 ...3 J70660007C T LINK1 SHAFT2 1 ○ ○ SM1-MF08-070R2
3 ...3 J70650996B T LINK1 1 ○ ○ SM1-MF08-060R1
4 ...3 J70660029B T LINK3 SHAFT1 1 ○ ○ SM1-MF08-095R1
5 ...3 J70652736A T-LINK4 1 ○ ○ J70652736A
6 ...3 J70652737A T-LINK3 1 ○ ○ J70652737A
7 ...3 J70660002C T LINK2 SHAFT2 1 ○ ○ SM1-MF08-065R2
8 ...3 J1301149 E-RING 3 ○ ○ DIA4 (SUS)
A-19 ..2 J90651534A DRAIN LINK ASSY 1 ○ ○
A-20 ..2 J90651472A INDEXING SENSOR ASSY-2488 1 ○ ○
Reference
NO.
LEVEL
PART NO.
PART NAME
TYPE
Non -
IT
Q'TY
IT
Part List
