Support Media V1.13 04/2012 Edition

Figure 3-7: Prerequisite Analyzer copying files downloaded for offline use to local Search Folder

After the files have been copied, Prerequisite Analyzer will restart checking the Additional Software

Search Folder for needed files. If all required files have been found, you will be allowed to continue.

3.4.4 Download and install manually option

After you’ve selected the Download and install manually option, Prerequisite Analyzer will show

you a list of missing Software Packages as shown in the following picture.

Support Media V1.13 04/2012 Edition

Figure 3-8: Dialog for manual download and installation of missing components

The dialog will display the following information

• The description of the required installation package

• A link to the manual download of the installation package (if available)

• A note, describing where the installation package can be found on a former Support Media

version if it is available.

• For some packages, a link to the appropriate installation documentation might be shown

► Use this list to retrieve and install the missing Software packages manually

► After you’ve installed the missing packages manually, close and restart Prerequisite Analyzer

to detect the additionally installed Software and continue preparing your computer.

3.4.5 Downloading for multiple configurations

If you plan to prepare multiple (different) computer configurations, you may want to download all

missing required Software Packages in advance.

To do this, you have to perform the following steps.

► Insert the Support Media DVD / mount the ISO file of Support Media and execute the file

Autorun.cmd, if no autorun dialog appears.

The Launcher application opens.

Support Media V1.13 04/2012 Edition

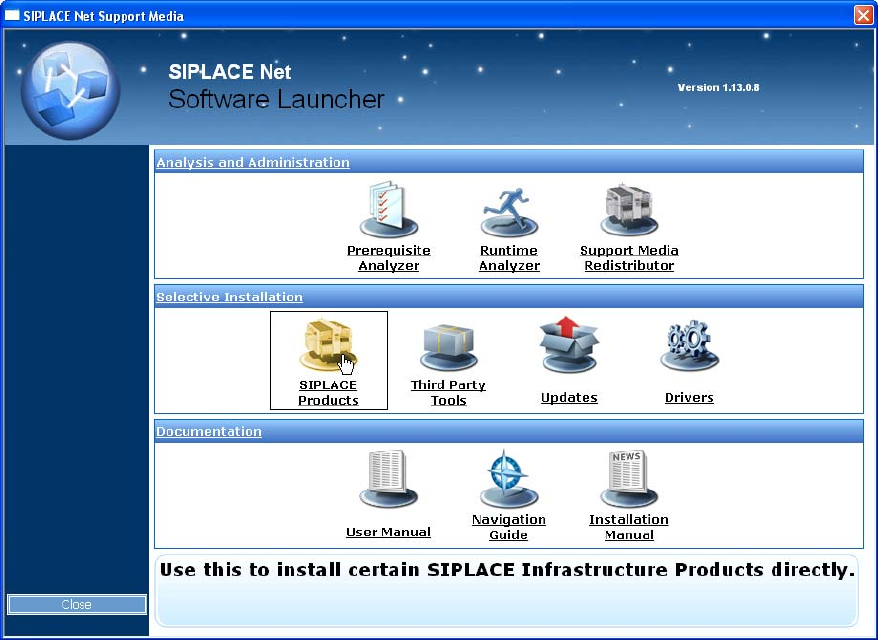

Figure 3-9: Selecting SIPLACE Products in Software Launcher

► In the Launcher application, select SIPLACE Products.

The SIPLACE Installer application opens.
