Support Media V1.13 04/2012 Edition

Figure 3-10: Selecting Missing Prerequisites Downloader in SIPLACE Installer application

► Select the option “Missing Prerequisites Downloader”

Figure 3-11: Hint message

► Click OK.

Support Media V1.13 04/2012 Edition

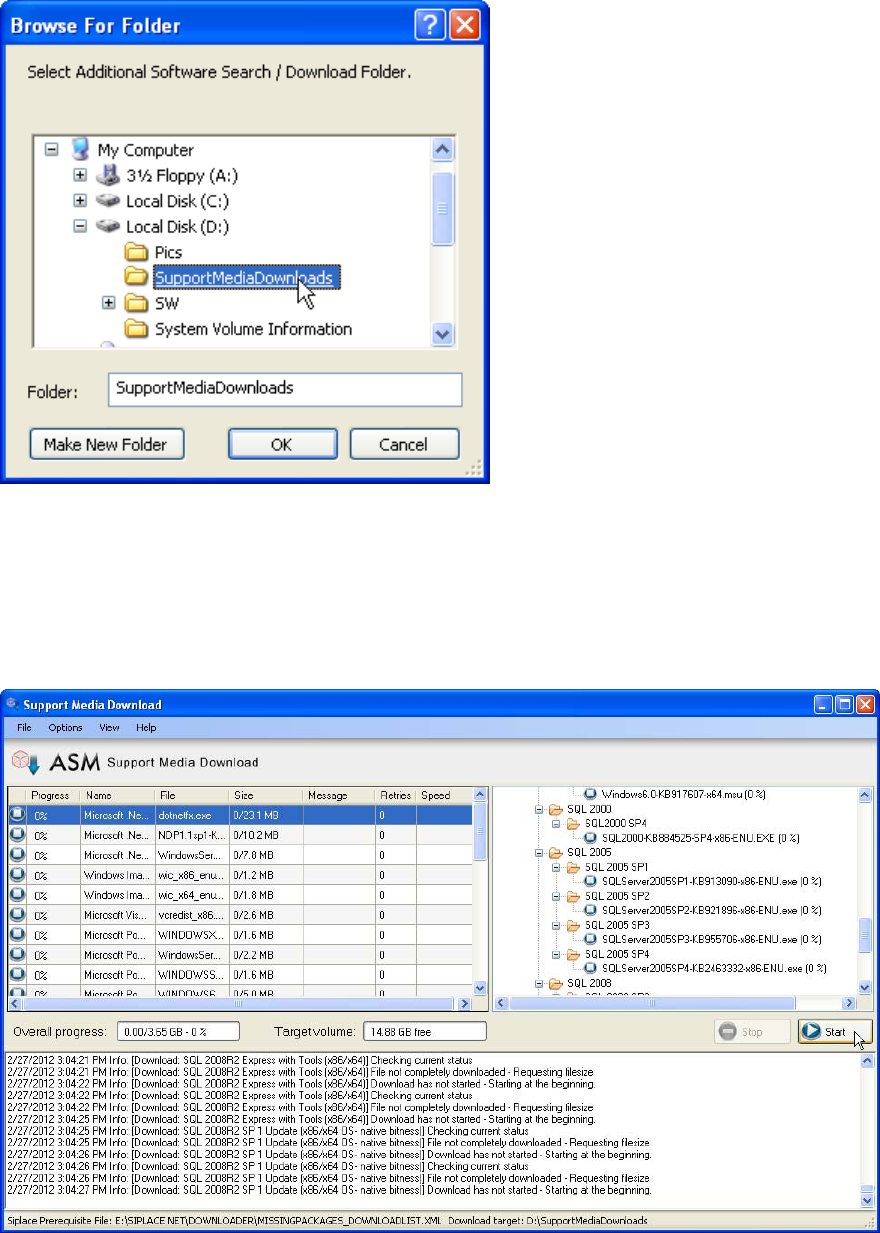

Figure 3-12: Folder Selection dialog window

► In the new folder selection dialog window, select or create the Download folder.

► Click OK to accept the choice

The Support Media Download Tool will be started.

Figure 3-13: Support Media Download Tool

► Click the Start button to start the download.

► After the download completed, click the Done button to close the Download Tool.

► In Prerequisite Analyzer, select this new directory structure as Additional Software Search

Folder, as described in the chapters above.

Support Media V1.13 04/2012 Edition

3.5 Critical Usage Notes

CAUTION

Installing Support Media from a network drive/local folder

Do not use Support Media from a network drive/local folder, as this causes following

problems:

• Problems with Internet Explorer security not allowing certain scripts.

• Problems with pathnames of files from Prerequisites larger than 256 characters.

It is strongly recommended to use a DVD / mapped ISO file instead.

Support Media Redistributor will help you creating and sharing an ISO file for network distribution.

You may use the freeware tool MagicDisc to map an ISO file to a drive letter.

This Tool is available on this DVD or via download from the web:

http://www.magiciso.com/setup_magicdisc.exe.

If you seem to have general problems with .HTA files (e.g. security warnings or unknown file

extension), you may try to use the HTAFix reg file provided on DVD1.

3.6 Known Issues

Removed "outdated" Installation packages (since V1.11):

Some Installation packages (like SQL 2008 SP 1 Express - see above section "New DVD content")

have been removed from the DVDs to save space for easier distribution of Support Media.

Prerequisite Analyzer will detect, if required Prerequisites are missing on the DVD and show you

options how to retrieve the missing packages.

SQL Server/Express 64 Bit:

If you've installed a 32 Bit SQL Edition on your 64 Bit OS and want to use the 64 Bit Edition, you

have to uninstall the Edition before.

SQL Server:

If you plan to install SQL Server Edition, please see the Navigation Guide documents regarding

manual SQL installation to ensure you use the correct installation options.

Analyzer now also includes Profiles (in "SIPLACE Net") helping to prepare your computer for SQL

Server installations.

After installation, you may (re-)run Prerequisite Analyzer to apply possibly required updates and

install all other required Prerequisites. Additionally, Analyzer will warn you if it finds known

conflicting settings.
