Support Media V1.13 04/2012 Edition 20 Figure 3-9: Selecting SIPLACE Products in Software Launcher ► In the Launcher application , select SIPLACE Products . The SIPLACE Installer application opens.

Support Media V1.13 04/2012 Edition

Figure 3-8: Dialog for manual download and installation of missing components

The dialog will display the following information

• The description of the required installation package

• A link to the manual download of the installation package (if available)

• A note, describing where the installation package can be found on a former Support Media

version if it is available.

• For some packages, a link to the appropriate installation documentation might be shown

► Use this list to retrieve and install the missing Software packages manually

► After you’ve installed the missing packages manually, close and restart Prerequisite Analyzer

to detect the additionally installed Software and continue preparing your computer.

3.4.5 Downloading for multiple configurations

If you plan to prepare multiple (different) computer configurations, you may want to download all

missing required Software Packages in advance.

To do this, you have to perform the following steps.

► Insert the Support Media DVD / mount the ISO file of Support Media and execute the file

Autorun.cmd, if no autorun dialog appears.

The Launcher application opens.

Support Media V1.13 04/2012 Edition

Figure 3-9: Selecting SIPLACE Products in Software Launcher

► In the Launcher application, select SIPLACE Products.

The SIPLACE Installer application opens.

Support Media V1.13 04/2012 Edition

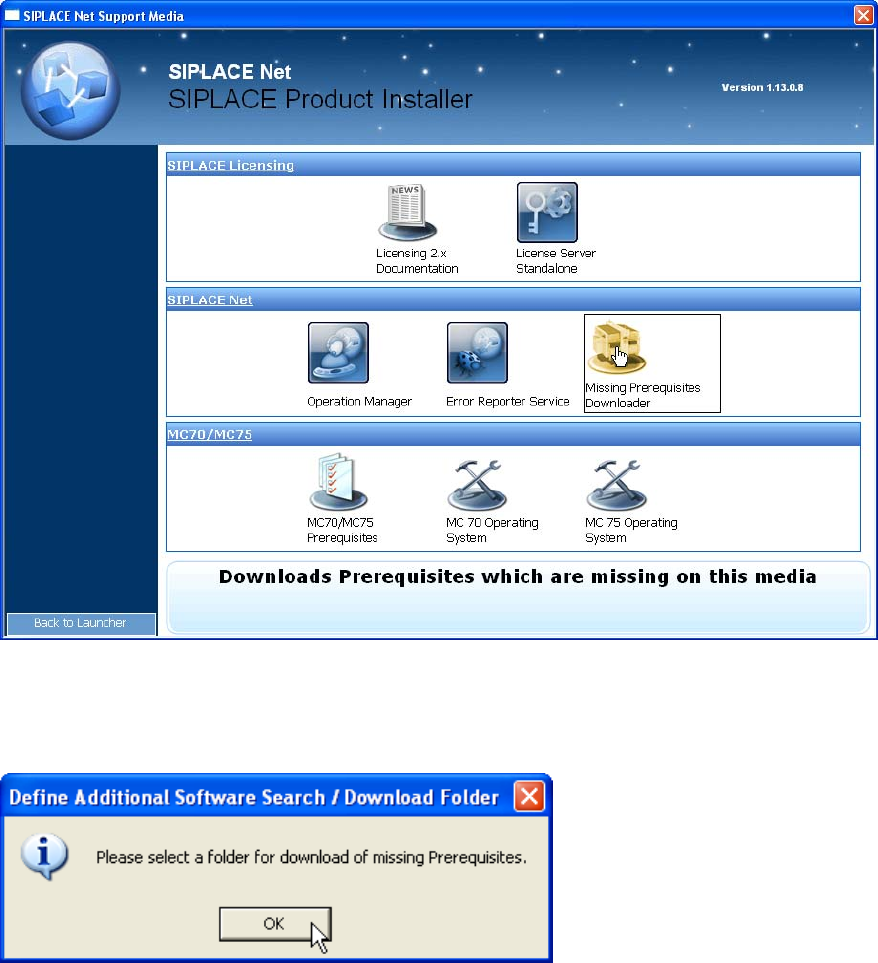

Figure 3-10: Selecting Missing Prerequisites Downloader in SIPLACE Installer application

► Select the option “Missing Prerequisites Downloader”

Figure 3-11: Hint message

► Click OK.
