SMT Software Engineering Group

IM Operations YAMAHA MOTOR CO., LTD.

MDOC-SOFT50234  11/18

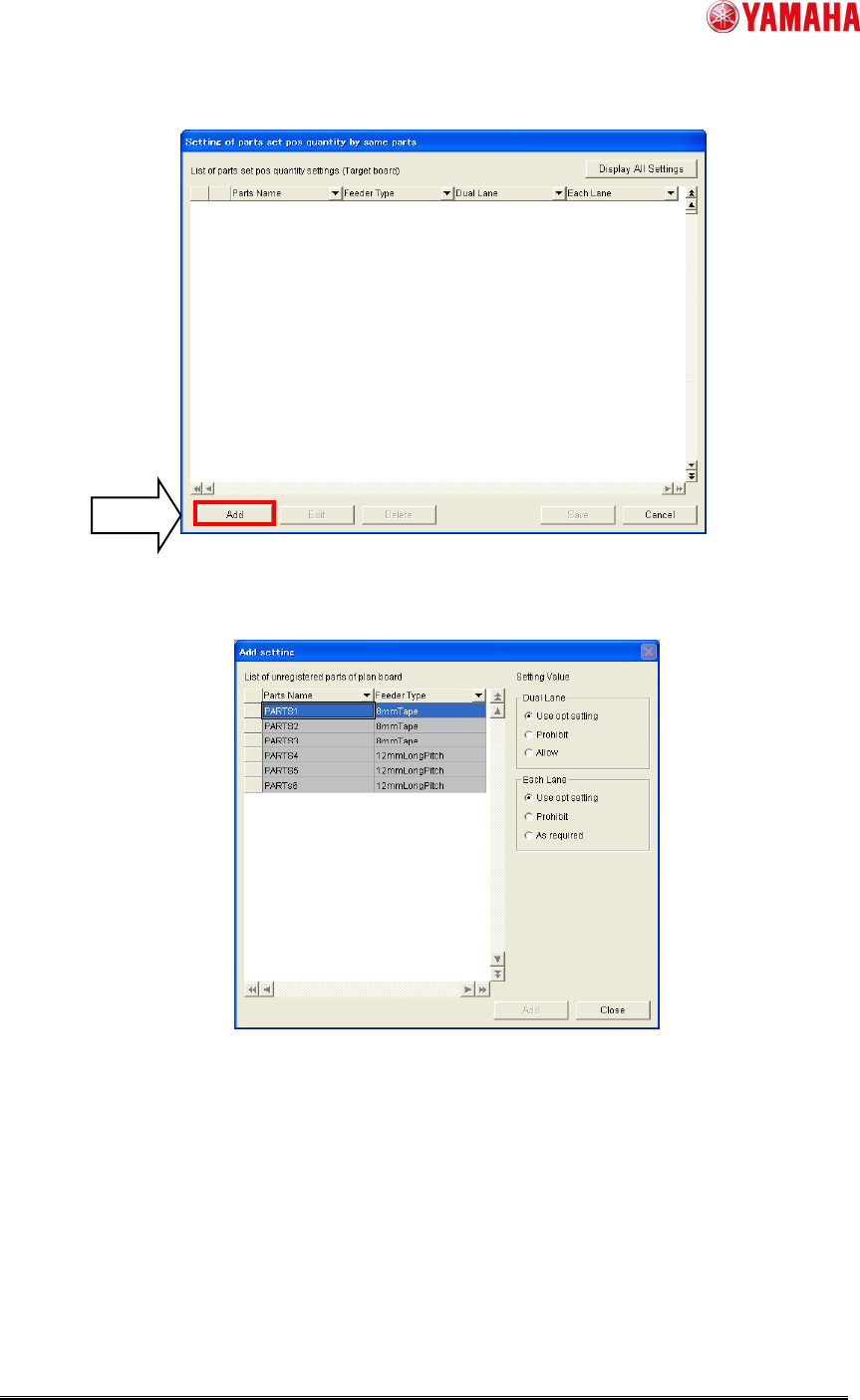

Fig.8. [Add] button to register setting record

Fig. 9. [Add setting] window



SMT Software Engineering Group

IM Operations YAMAHA MOTOR CO., LTD.

MDOC-SOFT50234  12/18

2. Click the cell in the left side of parts list. (To select plural parts, drug them.)

Fig. 10. Select parts

3. Select the parameters in [Dual Lane] and [Each Lane] in the right area of the “Add

setting”.

Fig. 11. Select parameter



SMT Software Engineering Group

IM Operations YAMAHA MOTOR CO., LTD.

MDOC-SOFT50234  13/18

4. Click [add] button in the “Add setting”. Then the setting records will be added

temporarily to “Setting of parts set pos quantity by same parts”.

Fig. 12. [Add] button

5. Click [Save] button. Without this, the setting records won’t be saved.

Fig. 13. Save added setting records
