SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50234 3/18
1 Applicable models and software versions
Applicable items and software version are shown as below.
Sheet 1. Applicable models and software version
Item Name Software Version Remarks
All series mounter
YFacT P-Tool
V3.32 STD R1.000 or later /
P-Tool V1.32 STD R1.000 or later
2 Outline
In the machines whose each head has restriction area for the board, there is a possibility
that “Mount Position Coordinate Errors” will occur. This function prevents some of the errors
by distributing plural feeders of the part. And this function succeeds “Lane Divide Prohibited
Part Setting” and its function in the Feeder Viewer (*1).
(*1) Feeder Viewer is the application of P-Tool of Yamaha Factory Tools.
3 Restrictions
・ There are combinations of the Optimizer Settings which are not available. Please see
Capture 4.4 for more detail.
・ “Setting of parts set pos quantity by same parts” is used in ALL LINES in common.
This setting can be set by same part.
・ Not all errors of “Mount Position Coordinate Errors” can be avoided by this function.
When the error will appear again after using this function, please check the machine
specification, Mount Data’s coordinates, the condition of Parts distribution, and
Machine Setting.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50234 4/18
4 Detail
4.1 Function in optimization
4.1.1 Set parts to plural set position in the lane
AsshownintheFig.1,whentheheadhasrestrictionareafortheboard,partshavetobeset
pluralsetpositionsmanually.Thisfunctiondoesthisautomaticallybythefollowingsettingsand
makesitpossibletomakeboarddatawhichisreadytostartproduction.

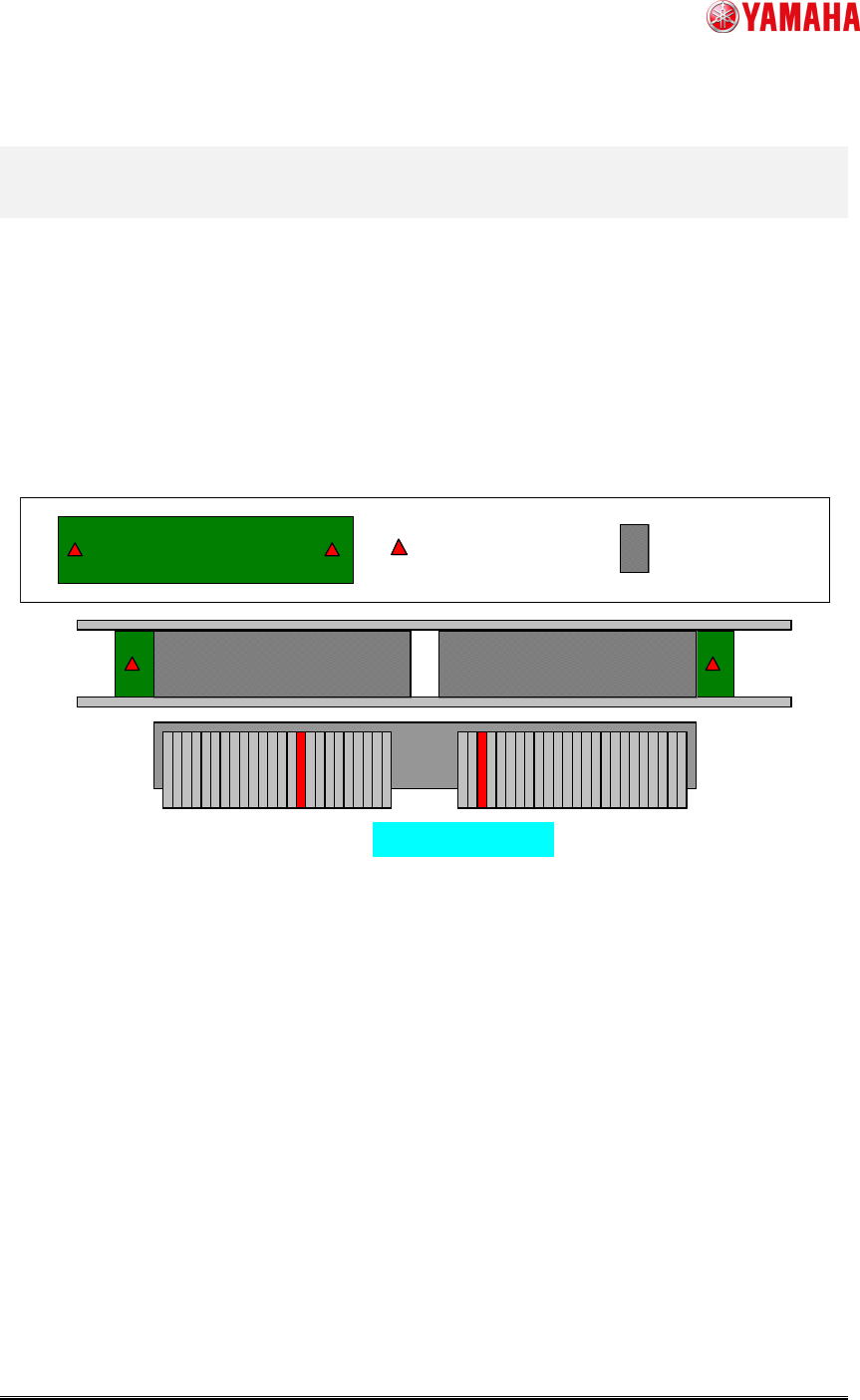

Fig. 1 Example : necessary case of plural set pos
4.1.2 Function of Lane Divide
This function succeeds the function of “Lane Divide Prohibited Parts Setting” (*2) in the
FeederViewer.Thesettingrecordsarealsosucceededautomaticallyinupgradingtheversion.
(*2)Thefunctionof“LaneDivide”istosetpartsfeedersetpositionsinbothlanesinorderto
make“ParallelMount”possible.
Set plural set pos
The area head can reachMount Position of “PART A”
Set plural set pos
The area head can reachMount Position of “PART A”
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50234 5/18
4.2 Detail Settings
4.2.1 Optimizer Setting
Select “DO” or “NOT” in [Set optimization parameters] – [Basic Condition] – [Exec Option]
– [Parts set pos quantity arrangement] – [Each Lane] / [Dual Lane]. (See Fig.2.) This is
applied for each optimizer setting.

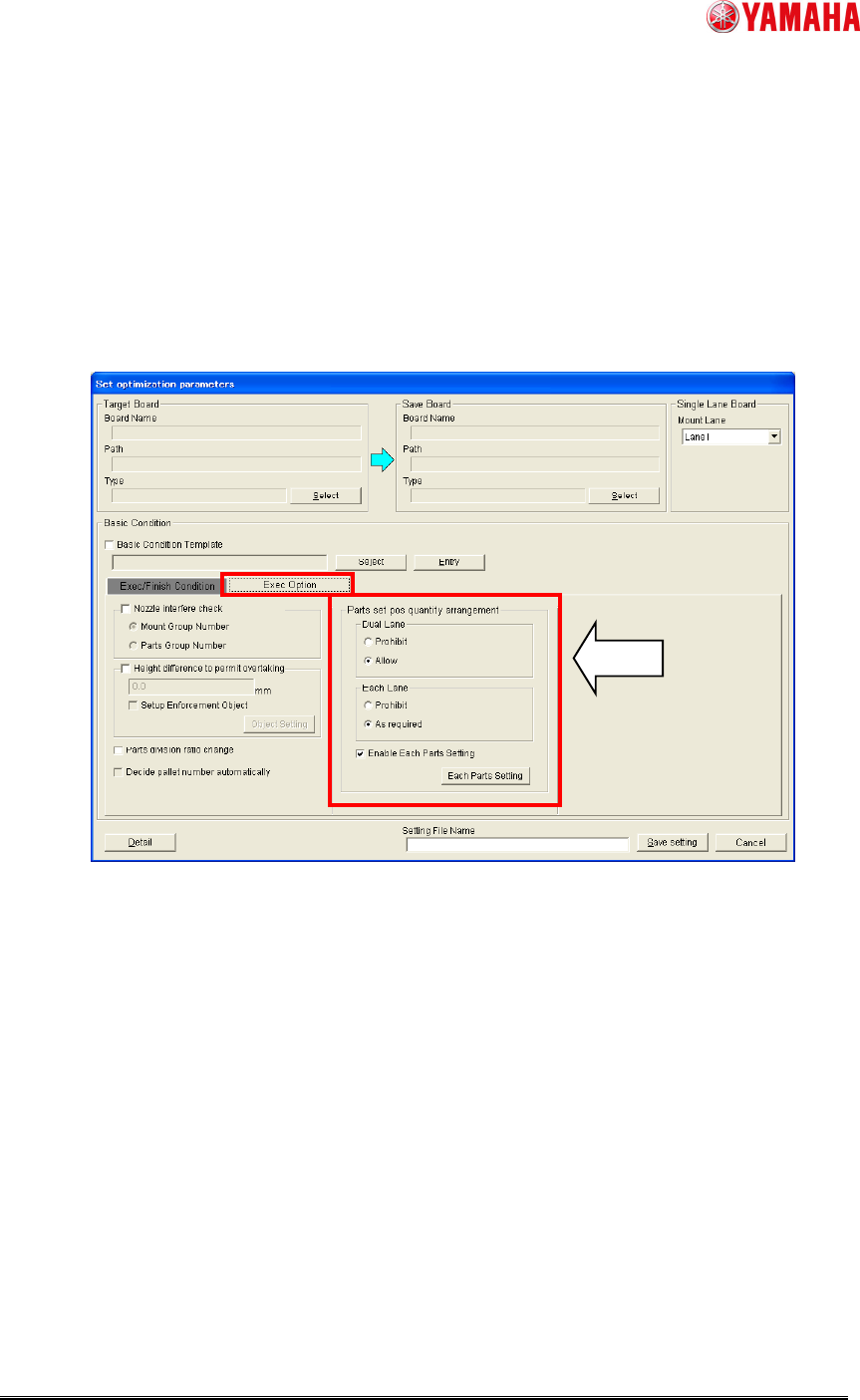

Fig. 2. “Set optimization settings”
[Dual Lane] (*3)
“Prohibit” : “Lane Divide” is NOT executed
“Allow” : Allow “Lane Divide” executed
(*3) This setting appears when dual lane machine exists in the line data.
[Each Lane]
“Prohibit” : Prohibit to set parts to plural set positions in one side lane
“As required” : Allow to set parts to plural set positions in one side lane
