Y-axis Drive
Moving -axis Section
KLD-1202
3-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
3
2
90990-12J006
SCREW, BIN. HEAD W/W
2
3
90990-26J008
BEARING
2
4
KHY-M224A-A0
SUPPORT UNIT
1
5
90990-41J100
COLLAR
1
6
90K63-611404
AC SERVO MOTOR
1
7
91312-04008
BOLT HEX,SOCKET HEAD
2
8
$UB0425-C
URETHANE TUBE
1
L=180mm
9
91312-04025
BOLT HEX,SOCKET HEAD
2
10
91312-05014
BOLT HEX,SOCKET HEAD
4
11
91312-06018
BOLT HEX,SOCKET HEAD
4
12
91312-06020
BOLT HEX,SOCKET HEAD
4
13
91312-06035
BOLT HEX,SOCKET HEAD
4
14
92012-03005
BOLT BUTTON HEAD
2
15
92A08-04305
SCREW SET
2
16
KLD-M26G0-00
Y GREASE PIPE ASSY.
1
17
KG2-M9173-00
LOCK NUT
1
18
KHN-M224J-00
COLLAR A
2
19
KHN-M224K-00
COLLAR B
2
20
KHN-M22AD-00
GREASE NIPPLE
1
21
KHY-M2642-00
HOLDER,BRG.Y
1
22
KHY-M2648-00
DAMPER
1
23
KHY-M264L-00
SPACER,BRG SET
1
24
KHY-M266C-00
BLOCK,JOINT
1
25
KHY-M266D-00
JOINT
1
26
KHY-M266E-00
JOINT
1
27
KHY-M2671-00
BALL SCREW
1
28
KHY-M2671-A0
Y AXIS B.S.SUB ASSY
1
29
KLD-M2641-00
HOLDER,MOTOR Y
1
30
KLD-M266A-00
PLATE,PIPE
1
31
KM0-M2220-00
COUPLING, X-AXIS
1
32
99480-05010
PIN,PARALLEL
1
33
91312-03006
BOLT HEX,SOCKET HEAD
4
34
KHY-M652F-00
SENSOR,YOT ASSY
1
35
KHY-M652A-00
SENSOR,YORG ASSY
1
18
16
19
37
16
6
21
11
42
4
26
10
41
9
40
24
29
17
10
25
42
11
41
9
20
12
36
17
39
34
1
33
30
2
7
28
31
12
6
10
8
15
22
2
27
8
8
22
38
8
5
10
44
6
23
13
35
17
39
23
30
38
10
32
5
41
12
3
3
41
9
14
44
13
10
41
3
33
27
18
16
19
37
16
6
21
11
42
4
26
10
41
9
40
24
29
17
10
25
42
11
41
9
20
12
36
17
39
34
1
33
30
2
7
28
31
12
6
10
8
15
22
2
27
8
8
22
38
8
5
10
44
6
23
13
35
17
39
23
30
38
10
32
5
41
12
3
3
41
9
14
44
13
10
41
3
33
27

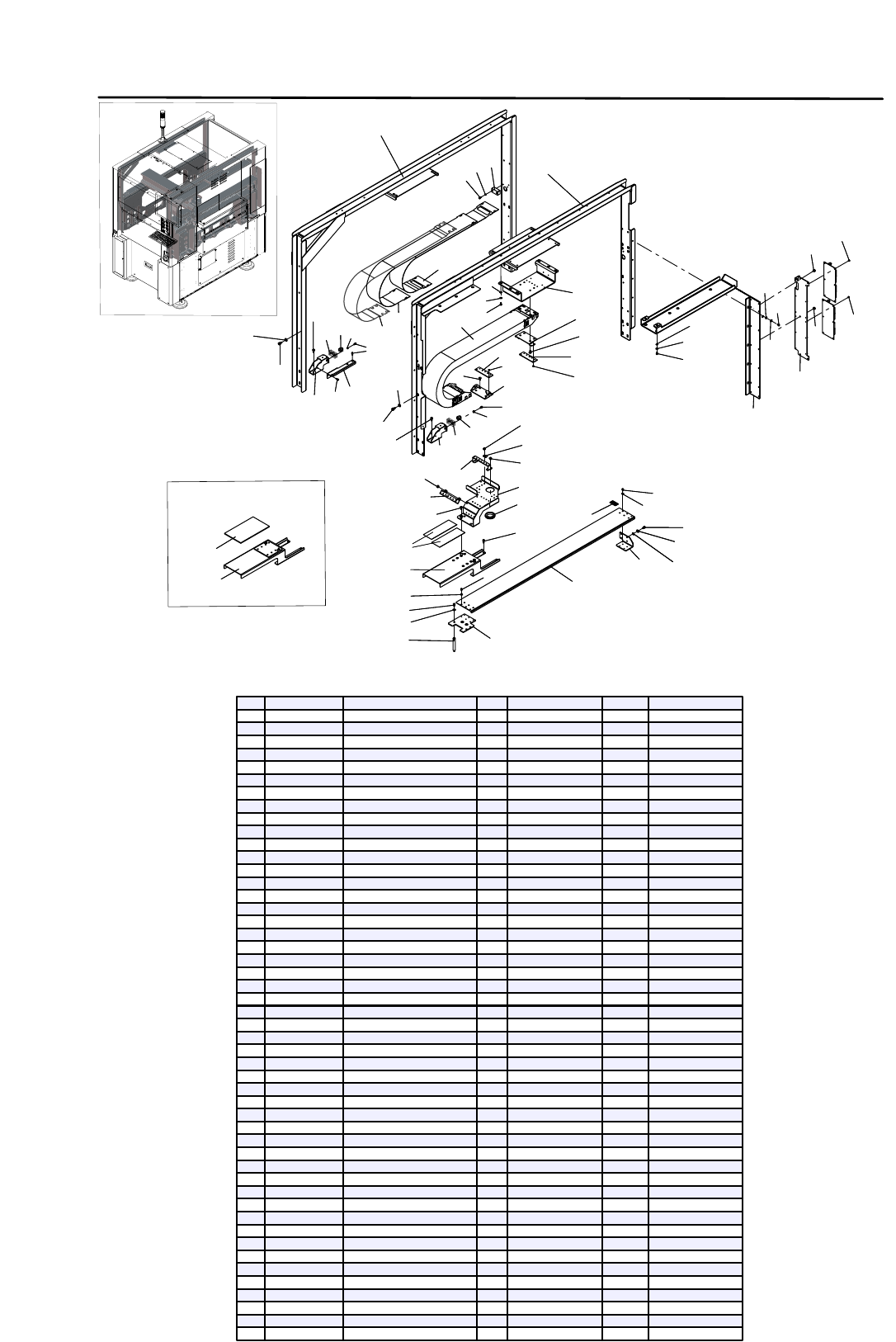

Y Axis Frame/Duct/Stopper/Cover
Moving -axis Section
KLD-2002
3-6
OLD
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
19
2
90166-12JA06
SCREW, PAN HEAD
12
3
90172-00J040
WASHER, EXTL, TOOTHED
13
4
90172-00J050
WASHER, EXTL, TOOTHED
4
5
98502-03004
SCREW PAN HEAD
4
6
90990-01J032
BOLT HEX,SOCKET HEAD
12
7
90990-11J001
SCREW, PAN HEAD W/W
15
8
90990-12J001
SCREW, BIN. HEAD W/W
11
9
91312-04006
BOLT HEX,SOCKET HEAD
15
10
91312-04008
BOLT HEX,SOCKET HEAD
17
11
91312-05008
BOLT HEX,SOCKET HEAD
7
12
91312-05010
BOLT HEX,SOCKET HEAD
8
13
91312-06010
BOLT HEX,SOCKET HEAD
21
14
KHY-M2678-00
GUIDE,CABLE Y
1
15
KLD-M26F1-00
FRAME 1
1
16
KHW-M2654-00
PLATE , DAMPER
2
17
KHW-M2656-00
SPACER
6
17-1
90990-41J180
COLLAR
6
OK
ML60128-2014/7/11
18
KHY-M260B-00
TAPE,Y DUCT
1
19
KHY-M260C-00
TAPE 2, Y DUCT
1
20
KHY-M260D-00
TAPE 3, Y DUCT
1
21
KHY-M2655-01
BRKT. COVER Y AXIS
1
22
KHY-M2657-00
BRACKET 1,HARNESS
2
23
KHY-M2669-00
BRACKET,HARNESS
2
24
KHY-M26C1-01
COVER TOP,BALL SCREW
1
25
KHY-M26C5-00
SHAFT,COVER
3
26
KHY-M26C6-01
BRKT. 2R,COVER Y
1
27
KLD-M260A-00
TAPE, Y AXIS
1
27-1
KLD-M260B-00
TAPE, Y AXIS
2
SET
MS30036-2019/3/18
28
KLD-M2651-00
PLATE,I/0
1
29
KLD-M2654-00
PLATE , DAMPER
1
30
KLD-M2656-00
BRACKET 1,STOPPER
2
31
KLD-M2658-00
PLATE,FIX Y AXIS
1
32
KLD-M2694-00
BRACKET A, GUIDE
1
33
KLD-M2695-00
BRACKET GUIDE,Y AXIS
1
33-1
KLD-M2695-02
BRACKET GUIDE,Y AXIS
1
SET
MS30036-2019/3/18
34
KLD-M269B-00
STAY GUIDE,Y AXIS
1
35
KLD-M26F2-00
FRAME 2
2
35-1
KLD-M26F2-01
FRAME 2
1
OK
MH70034-2011/7/26
36
90990-23J023
GROMMET
1
37
KLD-M26F4-00
DUCT,HARNESS
1
37-1
KLD-M26F4-00
DUCT,HARNESS
1
Hole Position change
NG
MH70109-2011/8/3
38
KV7-M2266-00
PLATE, NUT
2
39
KV7-M2651-00
DAMPER, STOPPER
2
40
KV7-M7165-00
SEAL DON'T TOUCH
1
41
92902-04200
WASHER,PLAIN
23
42
92902-05200
WASHER,PLAIN
7
43
92902-05600
WASHER,PLAIN
4
44
92902-06200
WASHER,PLAIN
21
14
5
18
5
19
13
19
19
13
12
16
3
7
15
1
4
7
9
6
9
6
11
9
6
9
10
8
6
2
17
Y Axis Guide
Y Axis Section
KLD-1202
3-7
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
91312-06010
BOLT HEX,SOCKET HEAD
3
2
91312-06018
BOLT HEX,SOCKET HEAD
4
3
91312-04008
BOLT HEX,SOCKET HEAD
2
4
91312-05008
BOLT HEX,SOCKET HEAD
3
5
91312-05010
BOLT HEX,SOCKET HEAD
6
6
91312-05014
BOLT HEX,SOCKET HEAD
16
7
91312-05016
BOLT HEX,SOCKET HEAD
39
8
KGS-M2256-00
GRIP
1
9
KHN-M22F5-00
WASHER,SWR05
16
10
KHN-M22F6-00
WASHER,SWR06
4
11
KHY-M2666-00
HOLDER,NUT Y AXIS
1
12
KHY-M2682-00
DOG,ORIGIN
1
13
KHY-M2683-00
DOG,SECOND LIMIT
2
14
KHY-M2691-00
BRACKET,SENSOR
1
15
KHY-M26C2-01
COVER1,BALL SCREW
1
16
KHY-M26C4-00
COVER3,BALL SCREW
1
17
KV7-M7165-00
SEAL DON'T TOUCH
1
18
KV7-M2676-S2
Y-AXIS GUIDE SET
1
19
92902-05600
WASHER,PLAIN
6
