YSC1_pl.pdf - 第6页
32 35 16 28 2 37 14 2 1 17 2 36 25 27 37 1 13 24 14 2 15 37 36 1 14 23 3 3 33 34 2 31 7 8 9 2 6 4 8 30 2 2 35 19 14 30 2 8 20 2 18 2 1 37 19 9 15 29 7 5 14 1 37 10 12 4 11 22 10 21 2 31 2 26 33 1 6 2 3 37 4 3 5 2 34 16 3…
30
31
10
5
5
18
5
5
18
14
27
12
16
15
27
32
6
12
25
24
34
25
28
17
29
26
6
9
11
11
35
14
45
21
22
20
8
46
23
7
13
19
4
33
1
3
39
40
41
37
43
38
42
2
36
44
38

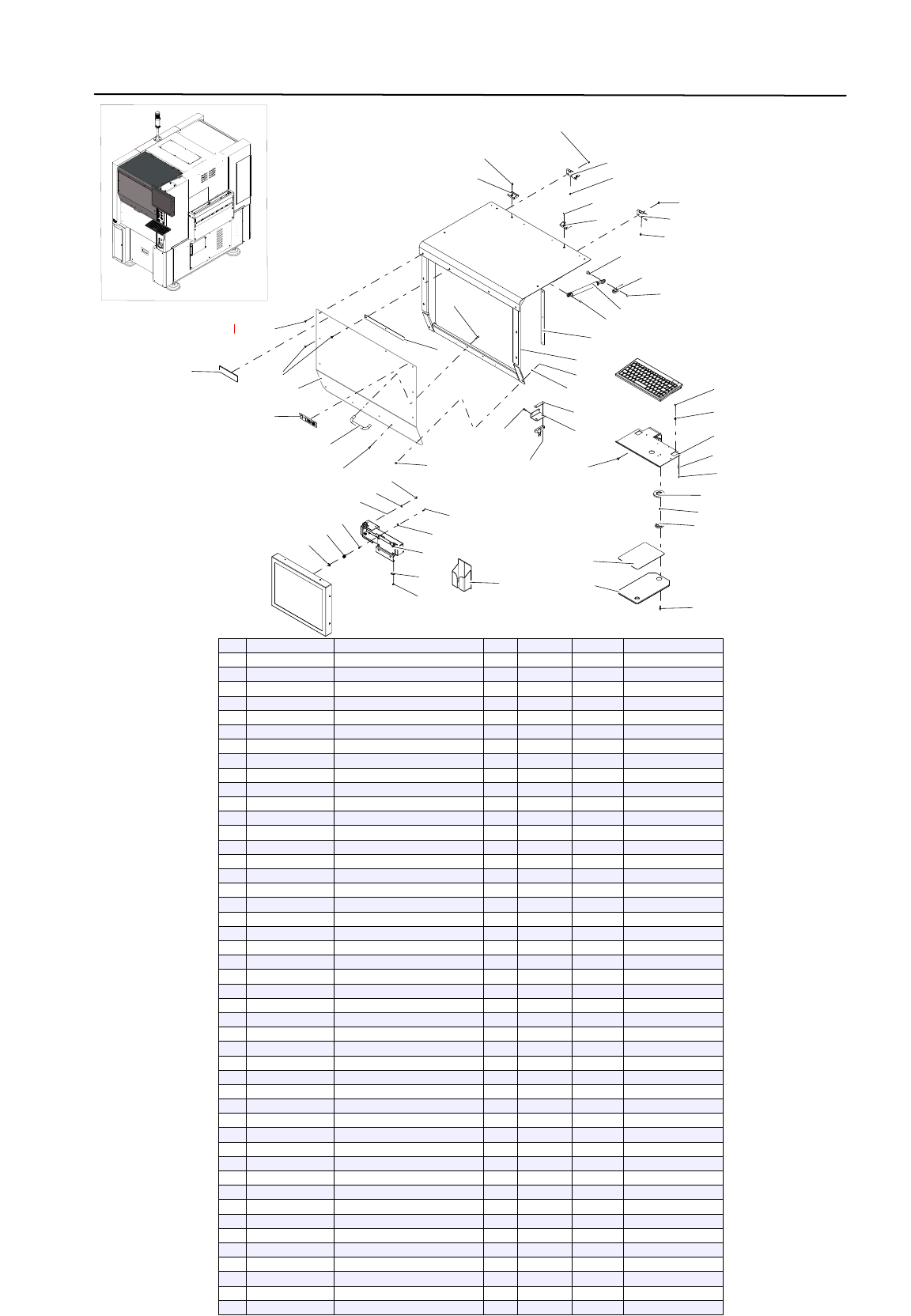

Acryl Door/LCD Stay/Bracket Keyboard
Cover Section
KLD-1202
2-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
1
2
KLD-M1380-00
LCD STAY ASSY.
1
3
90990-11J003
SCREW, PAN HEAD W/W
1
4
90990-11J005
SCREW, PAN HEAD W/W
4
5
90990-12J002
SCREW, BIN. HEAD W/W
12
6
90990-31J006
BOLT, SHOULDER
4
7
90990-41J007
COLLAR
1
8
90990-41J097
COLLAR
2
9
90990-46J001
BOLT, THIN HEAD
2
10
90990-46J002
BOLT, THIN HEAD
6
11
90990-46J003
BOLT, THIN HEAD
4
12
91312-04008
BOLT HEX,SOCKET HEAD
2
13
91312-04012
BOLT HEX,SOCKET HEAD
3
14
91312-05014
BOLT HEX,SOCKET HEAD
4
15
92902-04200
WASHER,PLAIN
2
16
95302-04600
NUT HEXAGON
2
17
95302-06600
NUT HEXAGON
2
18
K46-M1374-11
HINGE 2
2
19
KG2-M1362-00
STOPPER
3
20
KGA-M13B2-01
SHAFT,KEYBOARD
1
21
KGA-M13B4-00
BRACKET, PAD
1
22
KGA-M13B5-00
MOUSE POCKET ASSY
1
23
KGB-M1391-00
MOUSE PAD
1
24
KGS-M1348-00
GAS,SPRING
2
25
KGS-M1360-00
BOLT
4
26
KH2-M1324-01
GRIP
1
27
KJJ-M1348-00
STOPPER 65
2
28
KL0-M1373-01
BRACKET 1, SCHMEASAL
1
29
KL0-M1374-00
PLATE 1, SCHMEASAL
1
30
KLD-M1309-00
COVER 9-1
1
31
KLD-M130A-00
COVER 9 SUB ASSY.
1
32
KLD-M1349-00
PLATE 2,NUT
2
33
KLD-M13B1-00
BRACKET,KEYBOARD
1
34
KM0-M1331-01
BRACKET, GAS DAMPER
2
35
KV2-M1351-00
PLATE 2,NUT
1
36
90990-41J132
COLLAR
4
37
98902-04016
SCREW BINDING HEAD
4
38
90990-28J141
WASHER,PLAIN
8
39
91312-05010
BOLT HEX,SOCKET HEAD
4
40
92902-05200
WASHER,PLAIN
4
41
90172-00J050
WASHER, EXTL, TOOTHED
4
42
$NK-2N
NYLON CLIP
5
43
90990-11J001
SCREW, PAN HEAD W/W
5
44
KKE-M138A-00
DAMPER
4
45
KLD-M13D6-00
SEAL 1(YSC1)
1
46
KW7-M13D7-01
SEAL 2(YAMAHA)
1
32
35
16
28
2
37
14
2
1
17
2
36
25
27
37
1
13
24
14
2
15
37
36
1
14
23
3
3
33
34
2
31
7
8
9
2
6
4
8
30
2
2
35
19
14
30
2
8
20
2
18
2
1
37
19
9
15
29
7
5
14
1
37
10
12
4
11
22
10
21
2
31
2
26
33
1
6
2
3
37
4
3
5
2
34
16
32

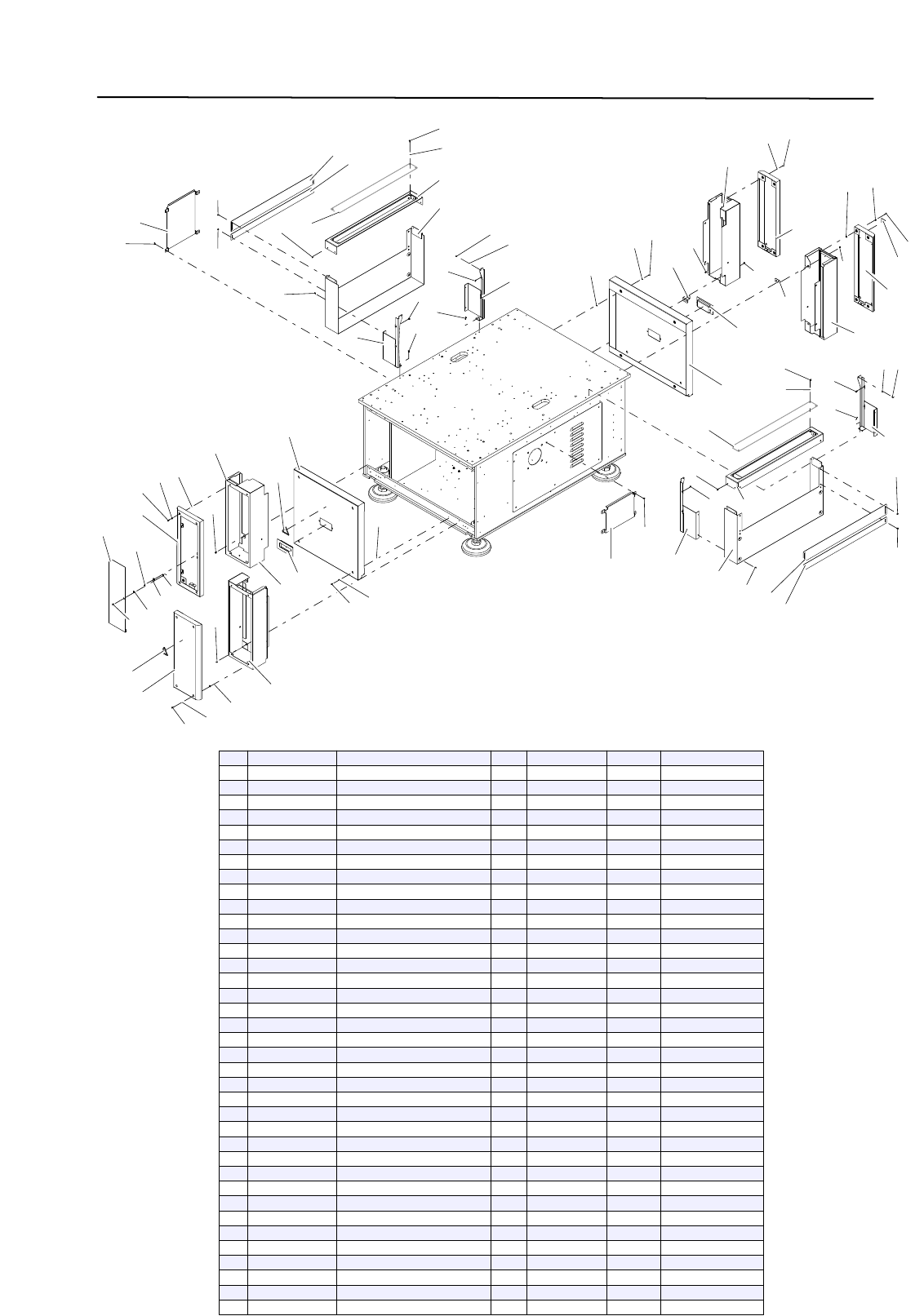

Base Cover
Cover Section
KLD-1202
2-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90172-00J040
WASHER, EXTL, TOOTHED
24
2
90990-12J001
SCREW, BIN. HEAD W/W
51
3
90990-12J002
SCREW, BIN. HEAD W/W
8
4
90990-12J006
SCREW, BIN. HEAD W/W
10
5
90K41-000712
LABEL ALERT
3
6
90990-41J134
COLLAR
4
7
91312-04008
BOLT HEX,SOCKET HEAD
4
8
91312-05010
BOLT HEX,SOCKET HEAD
4
9
92902-04200
WASHER,PLAIN
4
10
KW3-M1349-00
MINI LATCH
1
11
KGJ-M1350-00
SPACER,MINI LATCH
1
12
KGJ-M1351-01
PLATE,MINI LATCH
1
13
KGS-M6417-00
SEAL,PERIOD
1
CHINA ROHS
14
KH1-M1396-00
WASHER
22
15
KHU-M1117-00
PULL
2
16
KHY-M1371-00
COVER 71,CON.
2
17
KLD-M1153-00
COVER,FAN L
1
18
KLD-M1154-00
COVER,FAN R
1
19
KLD-M1311-00
COVER 11
1
20
KLD-M130R-00
COVER R
1
21
KLD-M130U-00
DOOR, COVER 11
1
22
KLD-M1310-00
COVER 10
1
23
KLD-M1312-00
COVER 12
1
24
KLD-M1313-00
COVER 13
1
25
KLD-M1315-00
COVER 15
1
26
KLD-M132A-00
COVER 10-1
1
27
KLD-M132B-00
COVER 13-1
1
28
KLD-M132C-00
COVER 15-1
1
29
KLD-M132D-00
COVER 11-1
1
30
KLD-M1334-00
BRKT.1,GATE COVER
2
31
KLD-M1335-00
BRKT.2,GATE COVER
2
32
KLD-M1371-00
COVER 71,CON.
2
33
KLD-M1376-00
COVER 76,CON.
2
34
KLD-M1377-00
COVER 77,CON.
2
35
KLD-M1378-00
PLATE 78,CON.
2
36
KLD-M1384-00
BRACKET 2,FIX
4
37
98902-04010
SCREW BINDING HEAD
24
27
34
33
11
31
28
3
17
30
8
16
32
15
20
4
20
24
29
25
1
2
7
6
21
31
3
6
21
9
22
26
6
14
26
26
6
36
6
7
23
25
24
36
29
6
13
12
18
15
35
19
27
11
5
10

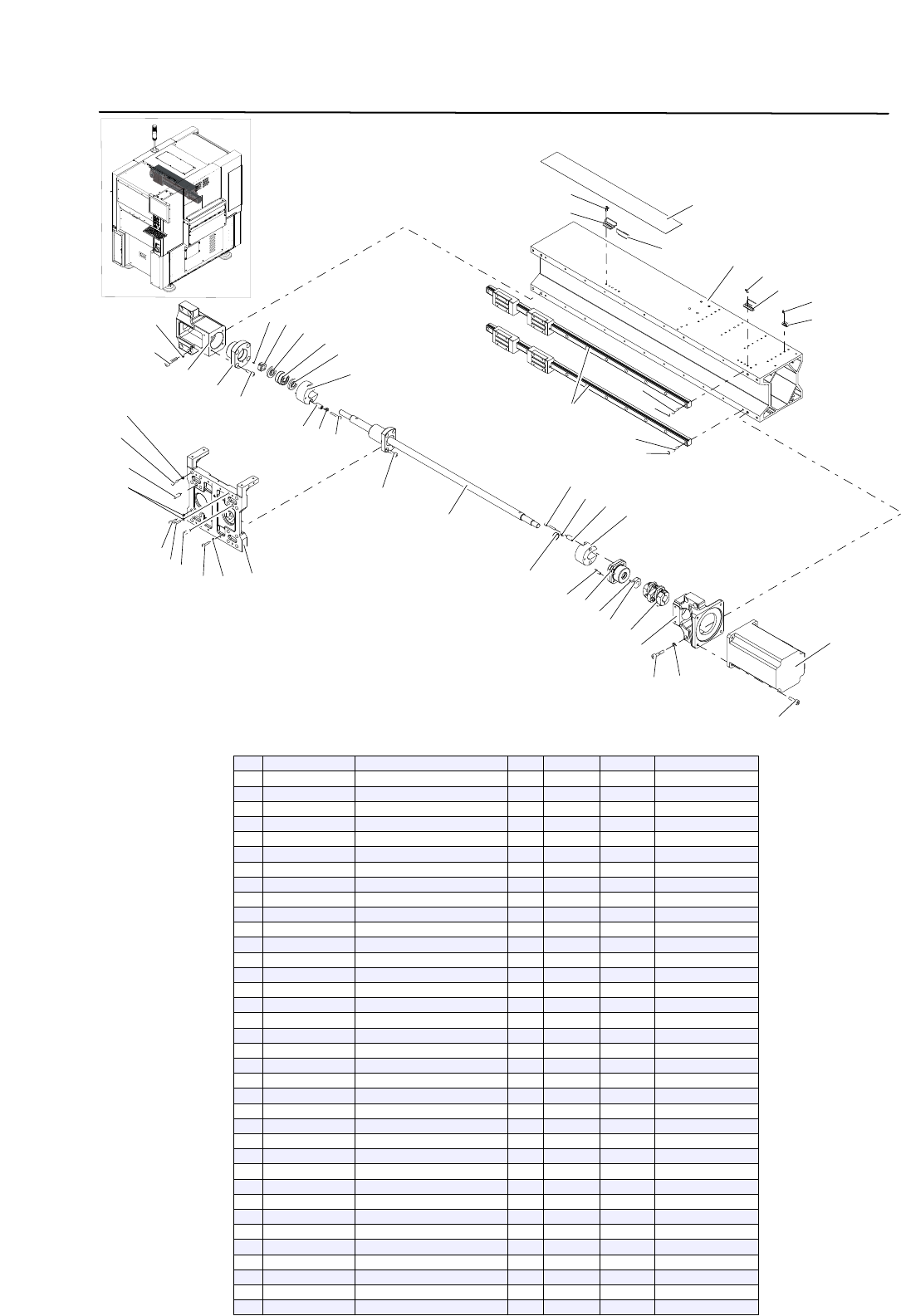

X-Axis Sub Assy
Moving -axis Section
KLD-1202
3-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
12
2
90990-11J001
SCREW, PAN HEAD W/W
12
3
90990-11J003
SCREW, PAN HEAD W/W
6
4
90990-26J008
BEARING
1
5
90K63-511403
AC SERVO MOTOR
1
6
91312-04014
BOLT HEX,SOCKET HEAD
38
7
92012-04025
BOLT,BUTTON HEAD
4
8
91312-05014
BOLT HEX,SOCKET HEAD
4
9
91312-05018
BOLT HEX,SOCKET HEAD
4
10
91312-06018
BOLT HEX,SOCKET HEAD
4
11
91312-06025
BOLT HEX,SOCKET HEAD
8
12
KHN-M2221-00
SUPPORT UNIT
1
13
91317-04012
BOLT HEX,SOCKET HEAD
4
14
KLD-M2261-A0
HOLDER,HEAD R ASSY.
1
15
92A08-04304
SCREW SET
2
16
KG2-M9173-00
LOCK NUT
1
17
KGK-M2276-S0
X-AXIS GUIDE SET
1
18
KGS-M2628-00
LOCK NUT
1
19
KHN-M2241-00
HOLDER,MOTOR X
1
20
KHN-M2248-00
SPACER
2
21
90K81-200006
CAP M4
22
22
KLD-M2271-00
BALL SCREW
1
23
KHN-M224D-00
SPACER
1
24
KHN-M224J-00
COLLAR A
4
25
KHN-M224K-00
COLLAR B
4
26
KHN-M22F4-00
WASHER,SWR04
16
27
KHN-M22F6-00
WASHER,SWR06
8
28
KHY-M2240-00
SLEEVE,BRG.
1
29
KHY-M224H-00
DAMPER
2
30
KHY-M2282-00
DOG.ORIGIN
1
31
KHY-M2283-00
DOG,SECOND LIMIT
2
32
KLD-M220D-00
TAPE, X-AXIS
2
33
KLD-M2211-00
FRAME R, X AXIS
1
34
KLD-M2242-00
HOLDER,BRG.
1
35
KM0-M2220-00
COUPLING, X-AXIS
1
36
99480-06018
PIN,PARALLEL
2
