YSC1_pl.pdf - 第24页
13 52 42 5 46 46 8 17 32 27 14 30 46 12 8 17 46 49 30 53 46 32 46 20 31 51 38 32 46 41 53 8 25 49 47 26 10 34 52 34 12 32 29 10 45 31 46 39 11 23 26 47 8 1 7 47 10 35 24 19 8 37 28 4 16 45 33 18 21 50 48 3 2 9 43 22 2 11…
39
41
29
21
19
11
45
19
9
11
47
44
2
6
16
20
17
48
18
9
47
30
28
25
13
14
49
31
8
5
36
7
4
33
10
46
47
4
43
47
4
42
35
26
3
23
47
34
24
27
12
13
5
48
18
8
22
38
4
32
20
7
40
46
6
4
1
37
8
15
49
8
Transportation
Conveyor Section
KLD-1202
6-4
R>L and L>R are the same parts.
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-28J076
WASHER,PLAIN
1
2
90990-41J006
COLLAR
1
3
91312-03006
BOLT HEX,SOCKET HEAD
12
4
91312-03008
BOLT HEX,SOCKET HEAD
36
5
91312-03010
BOLT HEX,SOCKET HEAD
8
6
91312-04006
BOLT HEX,SOCKET HEAD
4
7
91312-04010
BOLT HEX,SOCKET HEAD
4
8
91312-04014
BOLT HEX,SOCKET HEAD
10
9
91312-05014
BOLT HEX,SOCKET HEAD
4
10
91312-05020
BOLT HEX,SOCKET HEAD
2
11
92A08-04303
SCREW SET
4
12
KG2-M9105-00
PULLEY 1,SPLINE
1
13
KG2-M9108-11
COLLAR CONVEYOR
2
14
KGA-M9113-00
GUIDE 1,END
2
15
KGA-M9114-00
GUIDE 2,END
2
16
KGK-M9170-00
DC MOTOR ASSY.
1
17
KGT-M9193-00
NUT PLATE
4
18
KGY-M9140-A0
PULLEY CONV. ASSY.
4
19
KH2-M9105-11
PULLEY,MOTOR:P30-3GT
2
20
KH2-M9121-00
BEARING
2
21
KHW-M9146-00
BELT(249-3GT-9)
1
22
KHY-M9113-00
PULLEY 1,MOTOR
1
23
KHY-M9117-00
SPLINE 1
1
24
KHY-M9135-00
PLATE,EDGE 2
10
25
KHY-M9157-00
SHAFT,MOTOR
1
26
KKE-M9119-A0
PULLEY CONV. ASSY.
2
27
KKE-M9120-A0
PULLEY CONV. ASSY
2
28
KLD-M9103-00
STAY 3
1
29
KLD-M9106-00
BRKT.,CONV.MOTOR
1
30
KLD-M9108-00
BRKT.2,SPLINE
1
31
KLD-M9111-00
GUIDE 1
2
32
KLD-M9112-00
GUIDE 1
2
33
KLD-M9113-10
PLATE 1,GUIDE
1
33-1
KLD-M9113-11
PLATE 1,GUIDE
1
OK
MH50095-2011/6/1
34
KLD-M9113-00
PLATE 1,GUIDE
1
35
KLD-M9114-10
PLATE 2,GUIDE
1
35-1
KLD-M9114-11
PLATE 2,GUIDE
1
OK
MH50095-2011/6/1
36
KLD-M9115-00
GUIDE 1-1
2
37
KLD-M9116-00
GUIDE 1-1
2
38
KLD-M9117-00
BELT 1,CONVEYOR
2
39
KLD-M9124-00
BRACKET F,COLLAR
1
40
KLD-M9125-00
BRKT.1,SPLINE
1
41
KV1-M9140-A0
PULLEY CONV. ASSY.
2
42
KHY-M9135-10
PLATE,EDGE 3
2
43
KLD-M9114-00
PLATE 2,GUIDE
1
43-1
KLD-M9114-01
PLATE 2,GUIDE
1
OK
MH50095-2011/6/1
44
98702-03005
SCREW,FLAT HEAD
24
45
91317-04055
BOLT HEX,SOCKET HEAD
4
46
92902-03200
WASHER,PLAIN
10
47
92902-05200
WASHER,PLAIN
10
48
92902-05600
WASHER,PLAIN
4
49
92990-04600
WASHER,PLAIN
8
13
52
42
5
46
46
8
17
32
27
14
30
46
12
8
17
46
49
30
53
46
32
46
20
31
51
38
32
46
41
53
8
25
49
47
26
10
34
52
34
12
32
29
10
45
31
46
39
11
23
26
47
8
1
7
47
10
35
24
19
8
37
28
4
16
45
33
18
21
50
48
3
2
9
43
22
2
11
39
6
48
45
44
1
8
40
15
50
4
16
36
50
3
9

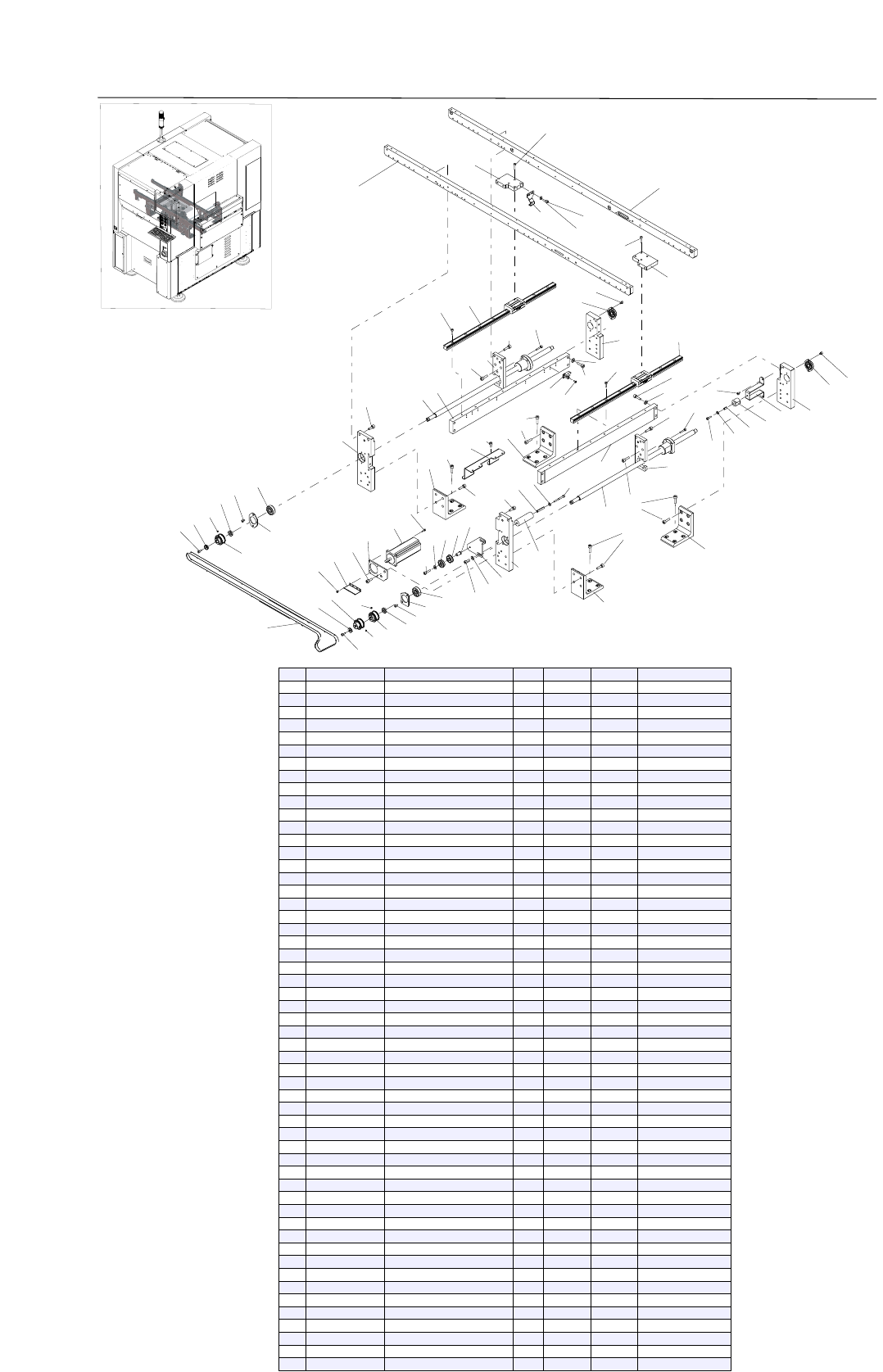

Width adjustment/Base
Conveyor Section
KLD-1202
6-5
R>L and L>R are the same parts.
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90933-01J200
BEARING
2
2
90933-03J608
BEARING
2
3
90990-28J076
WASHER,PLAIN
2
4
90990-41J006
COLLAR
2
5
90K55-4W476W
AC SERVO MOTOR
1
6
91312-03005
BOLT HEX,SOCKET HEAD
2
7
91312-03010
BOLT HEX,SOCKET HEAD
4
8
91312-04006
BOLT HEX,SOCKET HEAD
12
9
91312-04010
BOLT HEX,SOCKET HEAD
2
10
91312-04014
BOLT HEX,SOCKET HEAD
17
11
91312-04018
BOLT HEX,SOCKET HEAD
8
12
91312-04020
BOLT HEX,SOCKET HEAD
8
13
91312-04040
BOLT HEX,SOCKET HEAD
1
14
91312-05010
BOLT HEX,SOCKET HEAD
2
15
KG7-M9113-01
PULLEY 3
1
16
KGT-M912D-00
PULLEY
2
17
KH2-M9121-00
BEARING
2
18
KHW-M9137-00
COLLAR,BRG.
1
19
KHW-M9139-00
PLATE,BRG.
1
20
KHY-M652H-01
SENSOR,W1ORG ASSY
1
21
KHY-M9109-01
BRKT.,MOTOR W
1
22
KHY-M9134-00
COVER,PULLEY
1
23
KHY-M9150-00
DOG,ORIGIN
1
24
KHY-M9152-00
SPACER
1
25
KHY-M9154-00
SPACER
1
26
KHY-M9A00-00
BALL SCREW W(460)
2
27
KLD-M1135-00
PLATE 35
1
28
KLD-M9101-00
STAY 1
1
29
KLD-M9102-00
STAY 2
1
30
KLD-M9103-00
STAY 3
2
31
KLD-M9104-00
PLATE 1A
2
32
KLD-M9105-00
STAY
4
33
KLD-M9107-00
BRKT.,TENSION
1
34
KLD-M9109-00
PLATE 1,LINEAR
2
35
KLD-M9110-00
FRAME,CONVEYOR
1
36
KLD-M9118-00
BELT, W AXIS
1
36-1
KJX-M9112-00
BELT (3GT-1446)
1
OK
MH50029-2011/5/19
37
KLD-M9119-00
DAMPER A
1
38
KLD-M9120-00
BRKT.,STOPPER 360
1
39
KLD-M9121-00
BRKT.,GUIDE
2
40
KLD-M9122-00
PLATE,BRG.
1
41
KLD-M9123-00
DAMPER B
1
42
KLD-M9110-10
FRAME,CONVEYOR
1
43
91312-05014
BOLT HEX,SOCKET HEAD
2
44
91312-05020
BOLT HEX,SOCKET HEAD
1
45
91312-06016
BOLT HEX,SOCKET HEAD
6
46
91312-06020
BOLT HEX,SOCKET HEAD
40
47
92902-04200
WASHER,PLAIN
4
48
92902-05200
WASHER,PLAIN
3
49
92902-06200
WASHER,PLAIN
8
50
92A08-04303
SCREW SET
6
51
98902-03008
SCREW BINDING HEAD
2
52
KHY-M9116-00
LM RAIL&BLOCK 15,480
2
53
91312-06025
BOLT HEX,SOCKET HEAD
8
10
32
6
13
12
21
7
23
1
16
7
30
31
29
2
1
2
37
36
20
28
27
26
25
24
15
24
19
37
38
9
33
4
22
14
3
17
8
35
11
18
5
34
Multi Camera Assy
Camera Section
KLD-1107
7-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90563-03J250
SPACER
4
2
90563-03J300
SPACER
2
3
91312-04010
BOLT HEX,SOCKET HEAD
2
4
91312-04020
BOLT HEX,SOCKET HEAD
2
5
98502-03003
SCREW PAN HEAD
8
6
98502-03004
SCREW PAN HEAD
4
7
98502-03006
SCREW PAN HEAD
6
8
KJJ-M755S-A2
M.LIGHT BRD.SIDE SET
1
9
KHN-M6417-00
LABEL LIGHT
1
10
KJJ-M66N2-00
HNS,M.LIGHT COAX
1
11
KJJ-M66N8-01
HNS,M.LIGHT SIDE
1
12
KJJ-M66N9-01
HNS,M.LIGHT SUB CX
1
13
KJJ-M66NA-01
HNS,M.LIGHT MAIN
1
14
KJJ-M7511-00
FRAME,SIDE LIGHT
1
15
KJJ-M7512-01
COVER,GLASS
1
16
KJJ-M7513-00
DIFFUSER,COAX
1
17
KJJ-M7514-00
DIFFUSER,SIDE LIGHT
1
18
KJJ-M7515-01
COVER,SIDE LIGHT
1
19
KJJ-M7516-01
COVER,LIGHT UNIT
1
20
KJJ-M7518-01
FRAME,MAIN LIGHT
1
21
KJJ-M7522-01
PLATE,COAX.
1
22
KJJ-M7523-A1
CYLINDER ASSY
1
23
KJJ-M7525-00
SPACER
4
24
KJJ-M7526-01
PLATE,GLASS
4
25
KJJ-M755S-02
M.LIGHT BOARD SET
1
26
KJJ-M7570-00
SPACER
12
27
KLD-M73C0-00
C+L W50-H271-U/D
1
28
KKJ-M7560-01
SIDE LIGHT ASSY.
1
29
KLD-M66K2-00
HNS,MULTI CAMERA
1
30
92902-06200
WASHER,PLAIN
2
31
91312-06020
BOLT HEX,SOCKET HEAD
2
32
KJJ-M7558-03
M.LIGHT COAX.ASSY
1
33
$SC4-M5A
SPEED CONTROLLER
2
34
90K41-000240
SEAL DON'T TOUCH
2
35
98502-04006
SCREW PAN HEAD
4
36
98902-03004
SCREW BINDING HEAD
12
37
98902-03006
SCREW BINDING HEAD
6
38
98902-03010
SCREW BINDING HEAD
4
