20 5 18 3 4 8 21 28 11 8 6 13 12 7 1 25 25 1 24 19 16 15 2 22 27 17 9 10 14 23 19 Camera Head Section KLD-1202 4-2 NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date 1 $NK-3N NYLON CLIP 3 2 90562-13J120 SP AC…
13
15
20
37
25
18
38
9
3
39
12
40
21
35
17
37
39
24
7
36
9
29
36
9
26
6
7
14
22
7
27
6
4
19
16
1
23
9
33
43
41
11
42
5
30
8
10
34
32
14
2
28
31
34

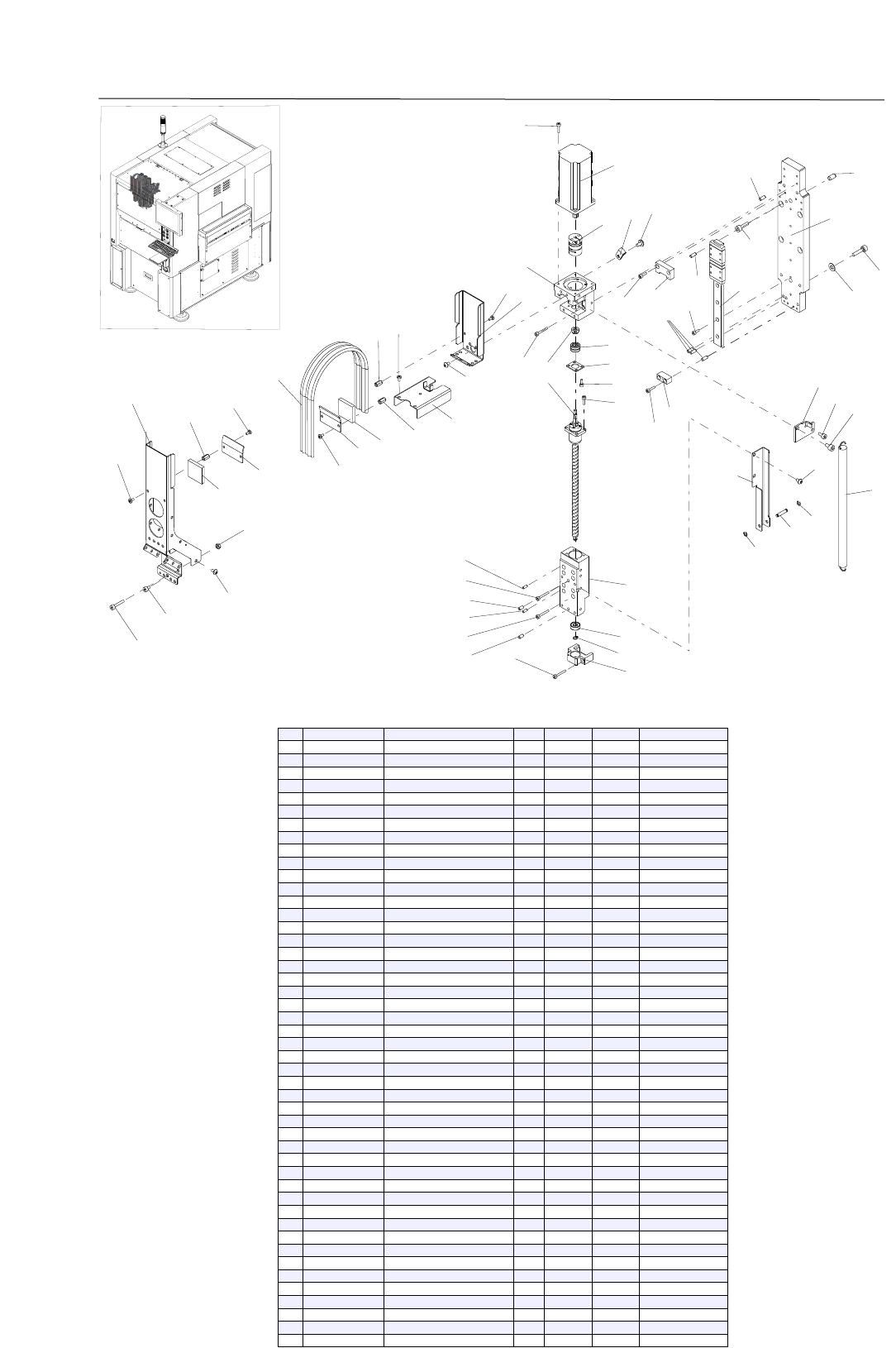

Camera Z axis
Head Section
KLD-1202
4-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
1
2
90562-13J120
SPACER
2
3
90933-02J605
BEARING
1
4
90990-12J006
SCREW, BIN. HEAD W/W
1
5
90K24-034717
AC SERVO MOTOR
1
6
91312-03008
BOLT HEX,SOCKET HEAD
10
7
91312-03010
BOLT HEX,SOCKET HEAD
8
8
91312-03012
BOLT HEX,SOCKET HEAD
4
9
91312-03020
BOLT HEX,SOCKET HEAD
14
10
91312-04006
BOLT HEX,SOCKET HEAD
2
11
91312-05006
BOLT HEX,SOCKET HEAD
2
12
91312-05016
BOLT HEX,SOCKET HEAD
4
13
91312-05020
BOLT HEX,SOCKET HEAD
2
14
92012-04006
BOLT, BOTTON HEAD
6
15
92902-05200
WASHER,PLAIN
2
16
KHN-M712A-00
BEARING
1
17
KJX-M7106-10
DAMPER LOW
1
18
KJX-M711P-00
CIRCLIP 5
1
19
KJX-M712G-00
PLATE BRG.
1
20
KLD-M7102-00
PLATE HEAD
1
21
KLD-M7103-00
LM GUIDE
1
22
KLD-M7106-00
DAMPER
1
23
KLD-M7110-00
HOLDER Z
1
24
KLD-M7112-00
HOLDER NUT
1
25
KLD-M711N-00
HOLDER BRG
1
26
KLD-M7121-00
BALL SCREW
1
27
KLD-M713P-10
SPRING RETURN
1
28
KLD-M713R-00
SHEET,RUBBER
1
29
KLD-M7152-01
BRKT,SPRING CZ
1
30
KLD-M7156-00
BRKT,SENSOR STAY
1
31
KLD-M7158-00
BRKT,HNS.SUB
1
32
KLD-M7159-10
BRKT,HNS 2
1
33
KLD-M71H9-00
COUPLING
1
34
98902-03006
SCREW BINDING HEAD
4
35
99480-03008
PIN,PARALLEL
2
36
99480-04008
PIN,PARALLEL
2
37
99480-04010
PIN,PARALLEL
6
38
99480-06012
PIN,PARALLEL
2
39
90440-01J030
CIRCLIP
2
40
KLD-M7174-00
PIN,SPRING
1
41
KLD-M7171-00
BRKT,SPG Z
1
42
91312-05008
BOLT HEX,SOCKET HEAD
1
43
91312-04008
BOLT HEX,SOCKET HEAD
1
20
5
18
3
4
8
21
28
11
8
6
13
12
7
1
25
25
1
24
19
16
15
2
22
27
17
9
10
14
23
19
Camera
Head Section
KLD-1202
4-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
3
2
90562-13J120
SPACER
2
3
90990-01J020
BOLT HEX,SOCKET HEAD
4
4
KHN-M7600-00
FIDUCIAL LIGHT ASSY
1
5
91312-03014
BOLT HEX,SOCKET HEAD
4
6
KJX-M71H7-00
BRACKET,FID.LIGHT
1
7
KJX-M7210-00
CCD CAMERA
1
8
91312-03020
BOLT HEX,SOCKET HEAD
4
9
91312-04006
BOLT HEX,SOCKET HEAD
2
10
91312-04008
BOLT HEX,SOCKET HEAD
4
11
91312-04016
BOLT HEX,SOCKET HEAD
4
12
91312-04025
BOLT HEX,SOCKET HEAD
2
13
KJX-M7211-00
LENS FID.
1
14
KLD-M66N5-10
HNS,CZ-FLEX FID(2V)
1
15
KLD-M713R-00
SHEET,RUBBER
1
16
KLD-M7158-00
BRKT,HNS.SUB
1
17
KLD-M7161-00
BRKT, HNS 3
1
18
KLD-M7181-00
MULTI MACS
1
19
98902-03006
SCREW BINDING HEAD
4
20
KLD-M71H2-00
BRKT,CCD CAMERA
1
21
KLD-M71H3-00
HOLDER,CCD CAMERA
1
22
KLD-M71HB-00
BRKT. CABLE
1
23
KV7-M7165-00
SEAL DON'T TOUCH
1
24
97602-03306
SCREW PAN HEAD W/WASHER
2
25
97602-04306
SCREW PAN HEAD W/WASHER
3
27
99480-04008
PIN,PARALLEL
2
28
99480-04012
PIN,PARALLEL
4
33
13
15
27
20
19
3
42
9
22
26
28
23
39
12
41
44
40
9
18
39
9
41
40
8
41
24
7
7
44
4
1
17
25
37
9
36
43
5,6
38
37
31
34
14
8
32
38
14
2
2
29
47
45
30
46
38
21
16
38
33
2
14
10
11
30
38
35
Z1_Z2 Axis Assy
Head Section
KLD-1202
4-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
1
2
90562-13J100
SPACER
4
3
90933-02J605
BEARING
1
4
90990-12J006
SCREW, BIN. HEAD W/W
1
5
90K24-034503
AC SERVO MOTOR ASSY
1
Z1 AXIS
6
90K24-033204
AC SERVO MOTOR ASSY
1
Z2 AXIS
7
91312-03010
BOLT HEX,SOCKET HEAD
6
8
91312-03012
BOLT HEX,SOCKET HEAD
6
9
91312-03020
BOLT HEX,SOCKET HEAD
14
10
91312-04006
BOLT HEX,SOCKET HEAD
4
11
91312-04020
BOLT HEX,SOCKET HEAD
1
12
91312-05016
BOLT HEX,SOCKET HEAD
4
13
91312-05020
BOLT HEX,SOCKET HEAD
2
14
92012-04006
BOLT, BOTTON HEAD
8
15
92902-05200
WASHER,PLAIN
2
16
95302-04600
NUT HEXAGON
1
17
KHN-M712A-00
BEARING
1
18
KJX-M7106-10
DAMPER LOW
1
19
KJX-M711P-00
CIRCLIP 5
1
20
KJX-M712G-00
PLATE BRG.
1
21
KLD-M66N4-10
HNS,R-FLEX(2V-R1)
1
22
KLD-M7102-00
PLATE HEAD
1
23
KLD-M7103-00
LM GUIDE
1
24
KLD-M7106-00
DAMPER
1
25
KLD-M7110-00
HOLDER Z
1
26
KLD-M7112-00
HOLDER NUT
1
27
KLD-M711N-00
HOLDER BRG
1
28
KLD-M7121-00
BALL SCREW
1
29
KLD-M713P-20
SPRING RETURN
1
30
KLD-M713R-00
SHEET,RUBBER
2
31
KLD-M7153-00
BRKT,SPRING Z
1
32
KLD-M7155-01
COVER,GEAR
1
33
KLD-M7158-00
BRKT,HNS.SUB
2
34
KLD-M7159-00
BRKT,HNS 1
1
35
KLD-M7160-00
BRKT, HNS 2
1
36
KLD-M71H9-00
COUPLING
1
37
90440-01J030
CIRCLIP
2
38
98902-03006
SCREW BINDING HEAD
11
39
99480-03008
PIN,PARALLEL
2
40
99480-04008
PIN,PARALLEL
2
41
99480-04010
PIN,PARALLEL
6
42
99480-06012
PIN,PARALLEL
2
43
KLD-M7174-00
PIN,SPRING
1
44
91312-03008
BOLT HEX,SOCKET HEAD
10
45
KLD-M7171-000
BRKT,SPG Z
1
46
91312-05008
BOLT HEX,SOCKET HEAD
1
47
91312-04008
BOLT HEX,SOCKET HEAD
1
