Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007
4.2.1.1 Changing the display settings
→ Select Start Æ Settings Æ Control Panel Æ Display.
→ Click the Settings tab.
→ Make the following settings here:

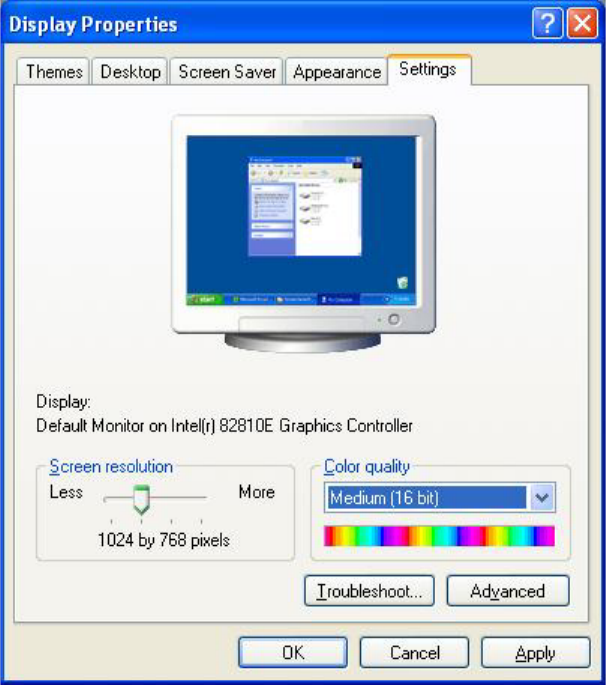

Fig. 4-1: Screen settings
18 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007
4.2.1.2 Calibrating the touchscreen
Select Start Æ Settings Æ TouchWare, to start the TouchWare Properties applet.
Fig. 4-2: TouchWare Properties
→ Open the Multiple Monitors tab.
19 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007
Fig. 4-3: TouchWare Properties – Multiple Monitors tab
→ Click the Map Touch Screens button.
The "Multiple Monitor Layout" dialog box appears.
20 of 89
