Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007 Fig. 4-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1) 22 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007
Fig. 4-4: "Multiple Monitor Layout" dialog box
→ Click the Mirrored Monitors button.
→ Confirm your entry with OK.
The touchscreens are now mapped and the "Multiple Monitors" tab is displayed again.
21 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007
Fig. 4-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1)
22 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007

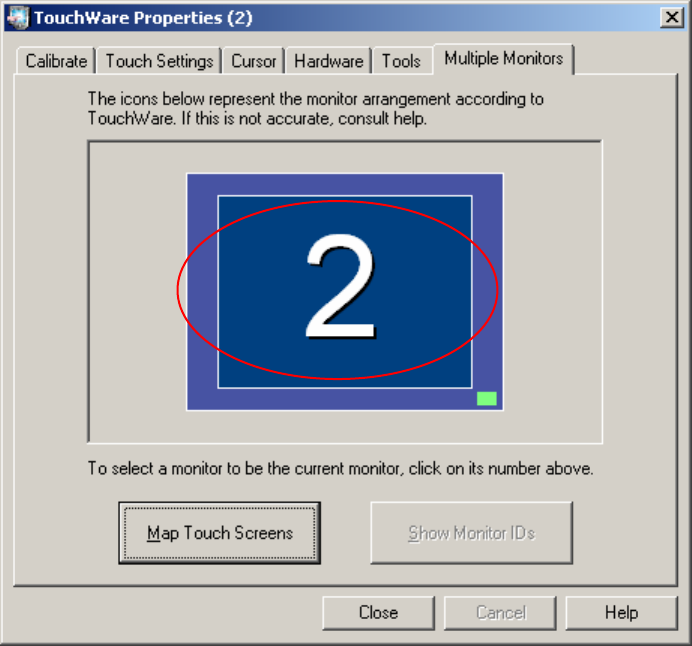

Fig. 4-6: TouchWare Properties – Multiple Monitors tab (example for Monitor 2)
→ Click the number of the monitor you wish to calibrate.
→ Open the Calibrate tab.
23 of 89
