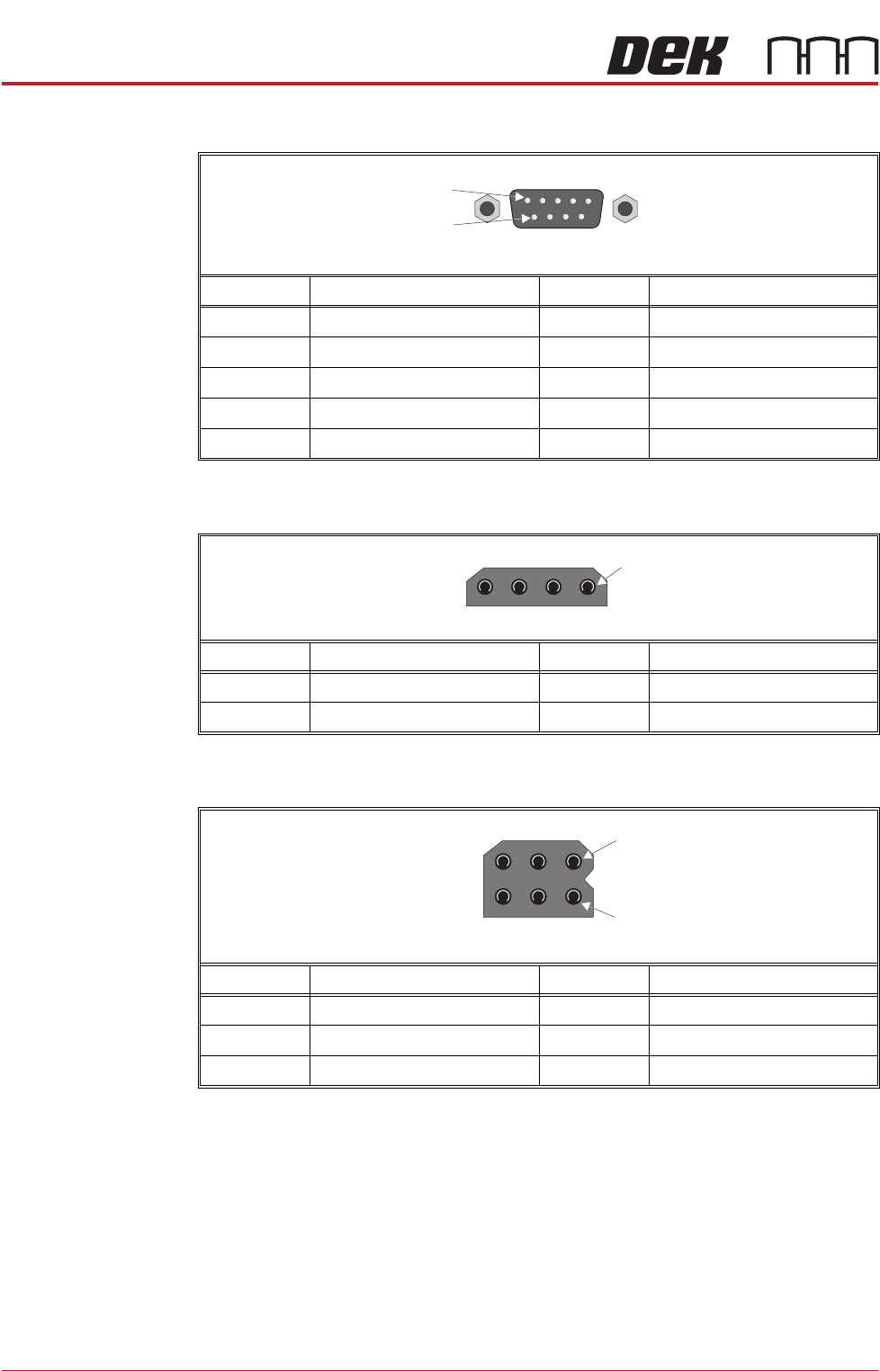

MACHINE CONTROL CAN BUS Chapter Issue 12, Feb 18 Technical Reference Manual 7.39 N3SK5 N3SK6 N3SK7 Pin No. Signal Pin No. Signal 1 +12V 3 0V 2 Screen Position 1 3 W ay Trident Socket Pin No. Signal Pin No. Signal 1 Spare…
MACHINE CONTROL
CAN BUS
7.38 Technical Reference Manual Chapter Issue 12, Feb 18
N3PL3
N3SK1
N3SK4
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Paste Height Laser (12V) 4 Paste Height Laser (24V)
2 Paste Roll Low 5 N/C
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.39
N3SK5
N3SK6
N3SK7
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Screen Position
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Spare Output 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS
7.40 Technical Reference Manual Chapter Issue 12, Feb 18
N3SK8
N3SK9
N3SK10
Pin No. Signal Pin No. Signal
1 ProFlow Paste Pressure 9 0V
2 Paste Dispense Solenoid 10 0V
3 Paste Cartridge Tilt 11 0V
4 Drip Tray Solenoid 12 0V
5 Stencil Actuator 13 0V
60V 140V
70V 150V
80V
15 Way D Type Socket
9
1
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Drip Tray Retracted
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cartridge Vertical 5 Cartridge Horizontal
30V 60V
4
1
6 Way Trident Socket
