MACHINE CONTROL CAN BUS Chapter Issue 12, Feb 18 Technical Reference Manual 7.49 N4SK10 N4SK1 1 N4SK12 Pin No. Signal Pin No. Signal 1 +12V 4 +12V 2 Board Present 5 Product Sensor 30 V 60 V 4 1 6 W ay Trident Socket Pin …
MACHINE CONTROL
CAN BUS
7.48 Technical Reference Manual Chapter Issue 12, Feb 18

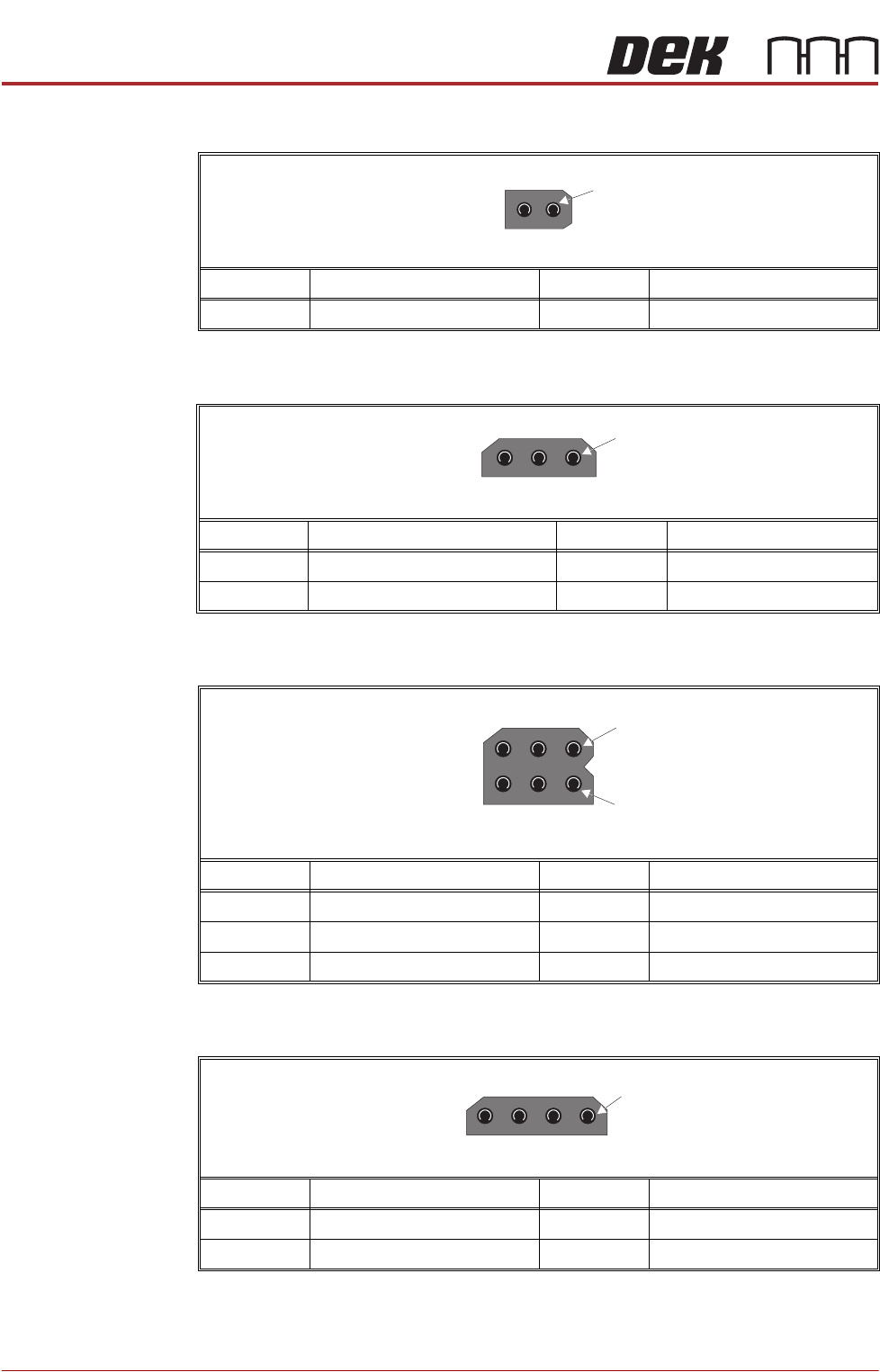

N4SK6
N4SK7
N4SK8
N4SK9
Pin No. Signal Pin No. Signal
1 Cleaner Vacuum Power 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Cleaner Vacuum Sense
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Levelness Screen Sensor 5 Levelness Cylinder Extended
30V 60V
4
1
6 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4 Way Trident Socket
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.49
N4SK10
N4SK11
N4SK12
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Board Present 5 Product Sensor
30V 60V
4
1
6 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Oscillating Motor 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Dropped 5 Spare Input
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS
7.50 Technical Reference Manual Chapter Issue 12, Feb 18
N4SK13
N4SK14
N4SK15
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Cleaner Camera Clamp 2 0V
2 Way Trident Socket
1
