10 Machine Modules
10.1 Stencil Mount
Technical Training E by DEK 12/2017 85
10 Machine Modules
10.1 Stencil Mount
10.1.1 Screen Loader
The Screen Loader is fixed to the Print carriage
There are 2 types of Screen Loader
●
Screen Deep Adjuster
●
Semi Auto Screen Loader

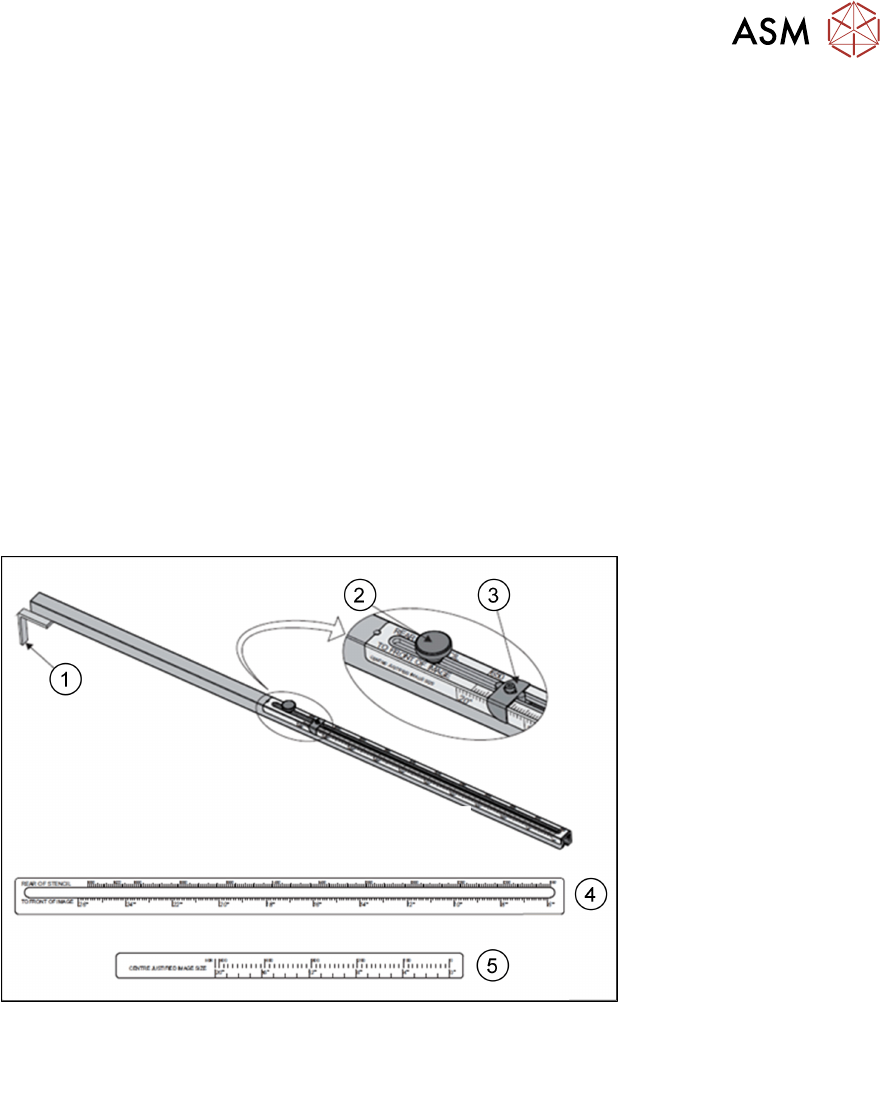

Screen Deep Adjuster
The screen depth adjuster is set by the operator prior to loading the screen
The screen depth adjuster has 2 scales
●
Rear of Stencil to Front of Image - 6 to 26 inches (150 to 650mm)
●
Centre Justified Image Size - 0 to 20 inches (0 to 508mm).
1. End Stop 4. Rear of stencil to front of image scale
2. Locking adjustment knob 5. Center justified image size scale
3. Measurement guide
